HVGTK 180 AR - Husqvarna Garden Tractor (1990-03) Steering Parts Diagram

Garden Tractor

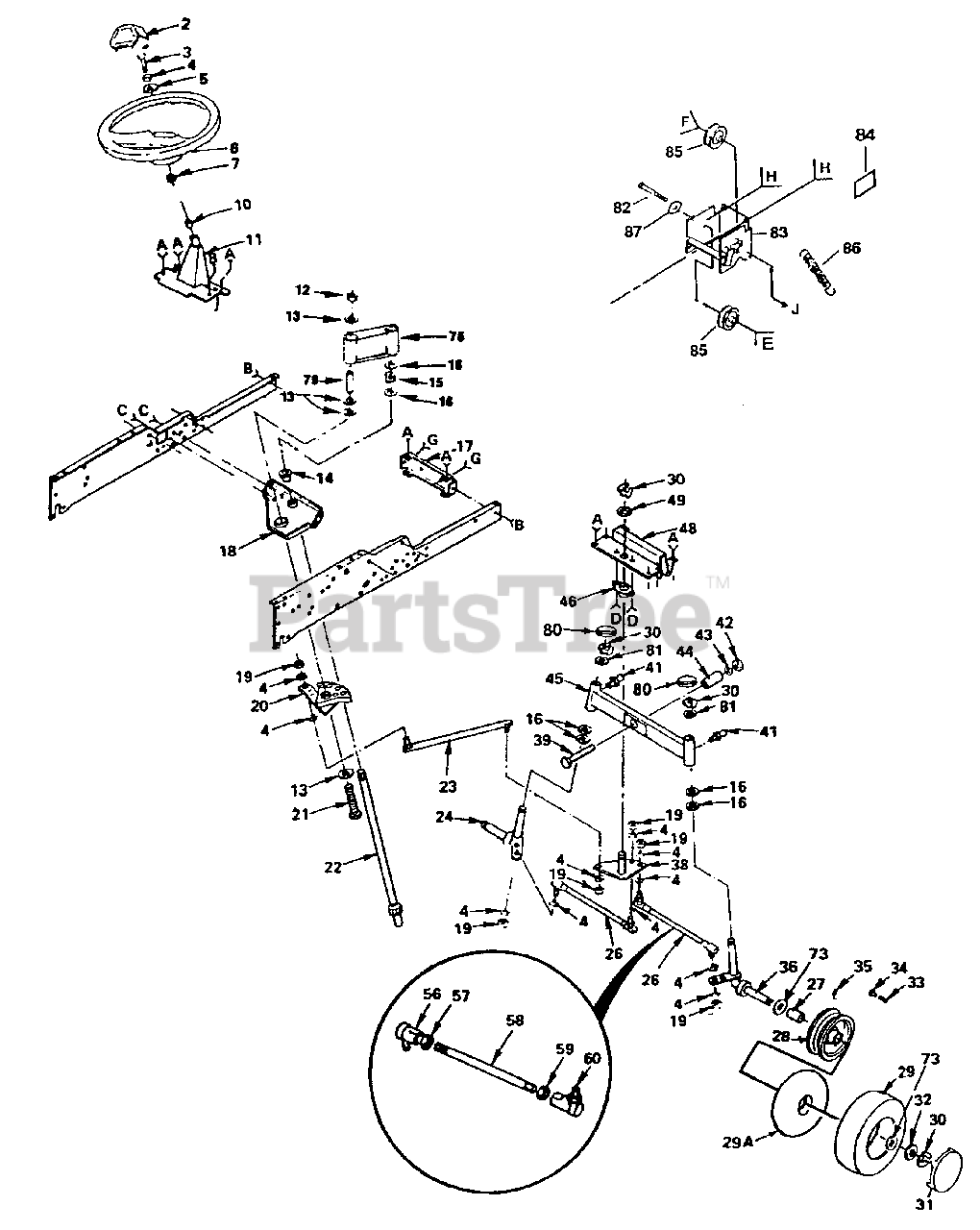

Steering Parts Diagram

  • Title

2

Husqvarna 532124416

Insert - Steering Wheel

$

$

Not available

3

Husqvarna 874780616

Bolt - Hex 3/8-16 x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 810040600

Washer - Lock 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 819133808

Washer 13/32 x 2 - 3/8 x 8 Ga.
(Superseded to 819133812)

$

$

Not available

6

Husqvarna 532124415

Wheel, Steering

$

$

Not available

7

Husqvarna 532100711

Adapter, Steering
(Superseded to 587738905)

$7.99

$

In Stock, Qty 20+

0

10

Husqvarna 532009038

Bearing

$

$

Not available

11

Husqvarna 532101274

Support Assembly, Steering

$

$

Not available

12

Husqvarna 873680800

Nut, Lock 1/2-13
(Superseded to 873350800)

$

$

Not available

13

Husqvarna 819172610

Washer 17/32 x 1-5/8 x 10 Ga.
(Superseded to 532126881)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532104239

Bearing, Flanged

$12.99

$

Usually ships in 3-10 days

0

15

Husqvarna 812000034

Klip Ring

$

$

Not available

16

Husqvarna 532124931

Bearing, Thrust
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

17

Husqvarna 532005213

Bracket, Frame Front

$

$

Not available

18

Husqvarna 532102439

Bracket, Support, Steering
(Superseded to 532104240)

$

$

Not available

19

Husqvarna 873610600

Nut, Hex 3/8-24
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532120424

Sector Assembly

$

$

Not available

21

Husqvarna 874780880

Bolt - Hex 1/2-13 x 5 Gr. 5

$2.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532104591

Shaft, Steering

$

$

Not available

23

Husqvarna 532110497

Link, Drag

$

$

Not available

24

Husqvarna 532121168

Spindle, L.H.

$

$

Not available

26

Husqvarna 532121159

Rod, Tie

Note: (Inc. Key #56-60)

$

$

Not available

27

Husqvarna 532009040

Bearing

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 532124864

Rim Assembly - 8" Front
(Superseded to 532148736)

$157.99

$

In Stock, Qty 16

0

29

Husqvarna 532003938

Tire
(Superseded to 532122075)

$87.99

$

Usually ships in 3-10 days

0

29A

Husqvarna 532008134

Tube

Note: (Not furnished with tractor)

$67.99

$

Usually ships in 3-10 days

0

30

Husqvarna 812000029

Klip Ring

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532124578

Cover, Wheel

$

$

Not available

32

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 532059192

Cap, Valve

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 532065139

Stem, Valve

$10.99

$

In Stock, Qty 20+

0

35

Husqvarna 532000278

Fitting, Grease

$6.49

$

In Stock, Qty 20+

0

36

Husqvarna 532121167

Spindle, R.H.

$

$

Not available

38

Husqvarna 532108137

Bellcrank Assembly

$

$

Not available

39

Husqvarna 874781044

Bolt, Hex 5/8 -11 x 2 - 3/4 Gr. 5

$

$

Not available

41

Husqvarna 532124836

Fitting, Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 3 left!

0

42

Husqvarna 873221000

Nut, Hex 5/8 -11

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 810041000

Washer, Lock 5/8

$2.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532005298

Tube, Pivot, Axle

$

$

Not available

45

Husqvarna 532124868

Axle Assembly, Front
(Superseded to 532677999)

$364.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532005292

Bushing, Bellcrank
(Superseded to 532140342)

$

$

Not available

48

Husqvarna 532005284

Bracket, Axle

$

$

Not available

49

UNKNOWN

$

$

Not available

56

Husqvarna 532121161

Joint-Tie Rod - L.H Thread
(Superseded to 532109851)

$31.99

$

Usually ships in 3-10 days

0

57

Husqvarna 873700600

Nut Hex Jam 3/8 - 24 L.H.

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532121162

Rod-Tie

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 873360600

Nut Hex Jam 3/8 - 24

$6.49

$

Usually ships in 3-10 days

0

60

Husqvarna 532121160

Joint, Tie Rod - R.H. Thread

$24.99

$

In Stock, only 2 left!

0

73

Husqvarna 532121749

Washer, 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

76

Husqvarna 532121177

Collar Weld Ass'y.

$

$

Not available

79

Husqvarna 532120199

Tube

$9.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532121232

Dust Cap Cover

$3.99

$

In Stock, Qty 20+

0

81

Husqvarna 532121748

Washer 25/32 x 1 - 5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

82

Husqvarna 874760632

Bolt-Hex 3/8 - 16 x 2
(Superseded to 874930632)

$6.49

$

Usually ships in 3-10 days

0

83

Husqvarna 532120542

Brkt. Idler

$

$

Not available

84

Husqvarna 532123246

Decal, Adjustment

$

$

Not available

85

Husqvarna 532124858

Pulley, Idler

$

$

Not available

86

Husqvarna 532007190

Spring

$

$

Not available

87

Husqvarna 819133808

Washer 13/32 x 2 - 3/8 x 8 Ga.
(Superseded to 819133812)

$

$

Not available
