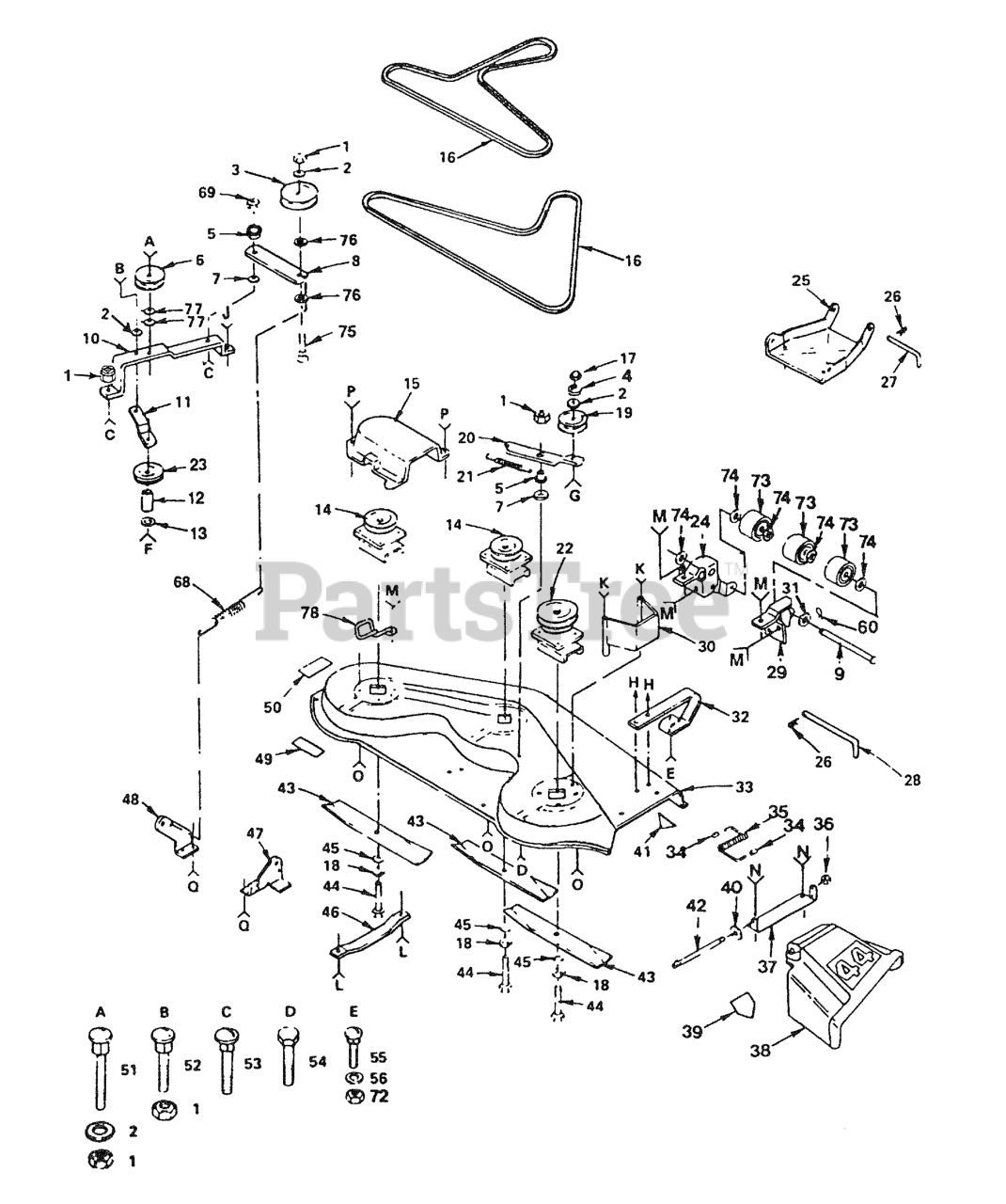

HVGTV 160 AR - Husqvarna Garden Tractor (1990-01) Mower Parts Diagram

Garden Tractor

Mower Parts Diagram

  • Title

1

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 819131614

WASHER
(Superseded to 596140201)

$3.49

$

In Stock, only 1 left!

0

3

Husqvarna 532121316

PULLEY.IDLER.FLAT.MOWER.BLK.PT

$56.99

$

In Stock, only 4 left!

0

4

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532106902

SPACER RETAINER

$3.49

$

In Stock, only 2 left!

0

6

Husqvarna 532124858

IDLER-INSIDE T

$

$

Not available

7

Husqvarna 532106513

WASHER, WEAR LT (1 2)

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 532121425

ARM IDLER

$

$

Not available

9

Husqvarna 532109776

PIVOT PIN T

$

$

Not available

10

Husqvarna 532106523

BAR-SUPPORT YT

$

$

Not available

11

Husqvarna 532106522

BRACE-IDLER YT

$

$

Not available

12

Husqvarna 532121236

SPACER

$

$

Not available

13

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 532121658

JACKSHAFT YT
(Superseded to 532136819)

$

$

Not available

15

Husqvarna 532106214

GUARD YT

$

$

Not available

16

Husqvarna 532106085

V-BELT T

$51.99

$

In Stock, only 1 left!

0

17

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$5.99

$

In Stock, only 2 left!

0

18

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532102932

IDLER.FLAT.GTV

$

$

Not available

20

Husqvarna 532106526

ARM-IDLER YT

$

$

Not available

21

Husqvarna 532124885

SPRING T
(Superseded to 532007644)

$

$

Not available

22

Husqvarna 532121705

JACKSHAFT YT

$

$

Not available

23

Husqvarna 532102403

IDLER-FLAT T

$45.99

$

In Stock, only 1 left!

0

24

Husqvarna 532109599

BRACKET LH YTH

$

$

Not available

25

Husqvarna 532105662

LINK,PARALLEL

$

$

Not available

26

Husqvarna 532004921

COTTER PIN

$5.99

$

In Stock, only 2 left!

0

27

Husqvarna 532105744

ROD,FRT PARALL LT

$

$

Not available

28

Husqvarna 532109835

HINGE PIN T

$

$

Not available

29

Husqvarna 532109600

BRACKET RH YTH

$

$

Not available

30

Husqvarna 532108119

GUARD BELT HYT

$

$

Not available

31

Husqvarna 819151616

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 14

0

32

Husqvarna 532124950

RUNNER-RH YTV
(Superseded to 532136321)

$

$

Not available

33

Husqvarna 532121423

HOUSING
(Superseded to 532144729)

$

$

Not available

34

Husqvarna 532105304

CAP-SLEEVE LT

$3.49

$

In Stock, Qty 20+

0

35

Husqvarna 532106734

DEFLECTOR SPRG T
(Superseded to 532123713)

$7.99

$

In Stock, Qty 16

0

36

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 532109743

BRACKET T
(Superseded to 531155201)

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532109785

DEFLECTOR SHIELD

$31.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532121349

DECAL WARNING

$

$

Not available

40

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga

$

$

Not available

41

Decal, OPEI (not serviced)

$

$

Not available

42

Husqvarna 532106735

ROD-HINGE T

$11.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532106635

BLADE
(Superseded to 532025034)

$

$

Not available

44

Husqvarna 874610624

BOLT.3/8-24X1-1/2

$5.99

$

Usually ships in 3-10 days

0

45

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

46

Husqvarna 532125074

RUNNER-LH M
(Superseded to 532007631)

$17.99

$

In Stock, Qty 9

0

47

Husqvarna 532123807

BRKT SUSP REAR RH

$

$

Not available

48

Husqvarna 532123808

BRKT SUSP REAR LH

$

$

Not available

49

Husqvarna 532108592

DECAL HYT

$

$

Not available

50

Husqvarna 532105185

DECAL-INST YT

$

$

Not available

51

Husqvarna 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, Qty 12

0

52

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 2 left!

0

53

Husqvarna 872140612

Bolt-Carriage 3/8-16 x 1-1/2

$

$

Not available

54

Husqvarna 874760620

BOLT

$5.99

$

Usually ships in 3-10 days

0

55

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

56

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

60

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532102727

SPRING.EXT.8.5"

$

$

Not available

69

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

72

Husqvarna 532124949

LOCKNUT

$

$

Not available

73

Husqvarna 532109729

ROLLER T

$

$

Not available

74

Husqvarna 819151610

WASHER T
(Superseded to 596040101)

$3.49

$

In Stock, Qty 14

0

75

Husqvarna 872140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 20+

0

76

Husqvarna 819131210

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

77

Husqvarna 819131410

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

78

Husqvarna 532121352

BELT RETIANER

$

$

Not available

Husqvarna 532121826

MOWER DECK COMPLE
(Superseded to 532131508)

$

$

Not available
