HVGTV 160 AR - Husqvarna Garden Tractor (1990-01) Mower Parts Diagram

Garden Tractor

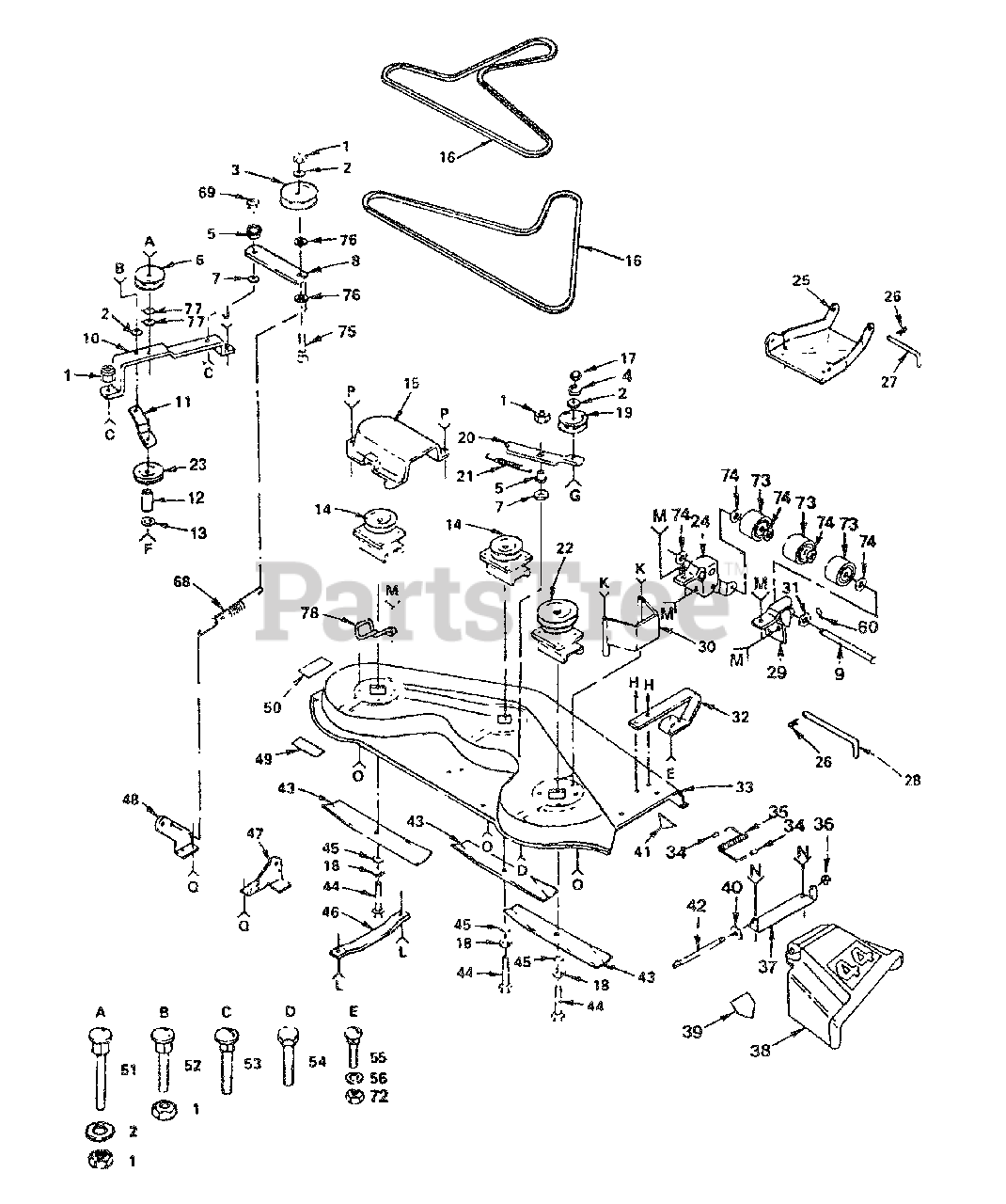

Mower Parts Diagram

  • Title

1

Husqvarna 873680600

Nut-Lock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 819131614

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532121316

Pulley Idler

$37.99

$

In Stock, only 4 left!

0

4

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532106902

Spacer

$2.99

$

In Stock, only 2 left!

0

6

Husqvarna 532124858

Pulley Idler

$

$

Not available

7

Husqvarna 532106513

Washer-Wear

$3.99

$

In Stock, only 3 left!

0

8

Husqvarna 532121425

Arm-Idler

$

$

Not available

9

Husqvarna 532109776

Pin-Pivot

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532106523

Bar-Support-Idler

$

$

Not available

11

Husqvarna 532106522

Brace Idler-Deck

$2.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532121236

Spacer

$

$

Not available

13

Husqvarna 819131316

Washer, 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 532121658

Mandrel-Secondary
(Superseded to 532136819)

$

$

Not available

15

Husqvarna 532106214

Guard

$

$

Not available

16

Husqvarna 532106085

V-Belt

$36.99

$

In Stock, only 1 left!

0

17

Husqvarna 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 3 left!

0

18

Husqvarna 810030600

Washer Lock 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532102932

Idler Flat

$30.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532106526

Arm-Idler-Deck

$18.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532124885

Spring Extension
(Superseded to 532007644)

$

$

Not available

22

Husqvarna 532121705

Mandrel-Primary

$

$

Not available

23

Husqvarna 532102403

Pulley, Idler

$37.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532109599

Bracket Lift- L.H.

$

$

Not available

25

Husqvarna 532105662

Link Parallel

$

$

Not available

26

Husqvarna 532004921

Retainer-Spring

$6.49

$

In Stock, only 1 left!

0

27

Husqvarna 532105744

Pin, Front Hinge

$

$

Not available

28

Husqvarna 532109835

Pin, Rear Hinge

$

$

Not available

29

Husqvarna 532109600

Bracket Lift-R.H.

$

$

Not available

30

Husqvarna 532108119

Guard-Belt-R.H.

$

$

Not available

31

Husqvarna 819151616

Washer 15/32 x 1 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

32

Husqvarna 532124950

Runner, R.H.
(Superseded to 532136321)

$

$

Not available

33

Husqvarna 532121423

Housing-Mower
(Superseded to 532144729)

$

$

Not available

34

Husqvarna 532105304

Cap Sleeve

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532106734

Spring
(Superseded to 532123713)

$5.99

$

In Stock, Qty 9

0

36

Husqvarna 532110452

Nut-Push

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532109743

Bracket-Deflector
(Superseded to 532137607)

$6.49

$

In Stock, only 4 left!

0

38

Husqvarna 532109785

Guard-Discharge

$30.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532121349

Decal Warning

$2.99

$

Usually ships in 3-10 days

0

40

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga

$0.99

$

Usually ships in 3-10 days

0

41

Decal, OPEI (not serviced)

$

$

Not available

42

Husqvarna 532106735

Rod-Hinge

$8.99

$

In Stock, only 1 left!

0

43

Husqvarna 532106635

Blade, Mower
(Superseded to 532025034)

$

$

Not available

44

Husqvarna 874610624

Bolt, Hex 3/8- 24 x 1-1/2 Gr. 5

$6.49

$

In Stock, only 1 left!

0

45

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

46

Husqvarna 532125074

Runner L.H
(Superseded to 532007631)

$18.99

$

In Stock, only 4 left!

0

47

Husqvarna 532123807

Bracket-Suspension Rear- R.H.

$

$

Not available

48

Husqvarna 532123808

Bracket-Suspension Rear- L.H.

$

$

Not available

49

Husqvarna 532108592

Decal -V-Belt Schematic

$

$

Not available

50

Husqvarna 532105185

Instruction Caution Decal

$

$

Not available

51

Husqvarna 872140614

Bolt-Carriage 3/8-16 x 1-3/4

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 872140608

Bolt-Carriage 3/8-16 x 1
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

53

Husqvarna 872140612

Bolt-Carriage 3/8-16 x 1-1/2

$2.99

$

Usually ships in 3-10 days

0

54

Husqvarna 874760620

Bolt, Hex 3/8-16 x 1-1/4

$7.49

$

In Stock, only 3 left!

0

55

Husqvarna 872140506

Bolt-Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

56

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

60

Husqvarna 876020412

Pin, Cotter
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

68

Husqvarna 532102727

Spring Extension

$

$

Not available

69

Husqvarna 873930600

Nut-Centerlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532124949

Locknut 5/16-18

$3.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532109729

Roller-Nose

$

$

Not available

74

Husqvarna 819151610

Washer 15/32 x 1 x 10 Ga.
(Superseded to 734117801)

$

$

Not available

75

Husqvarna 872140620

Bolt-Carriage 3/8-16 x 2-1/2

$3.99

$

Usually ships in 3-10 days

0

76

Husqvarna 819131210

Washer 13/32 x 3/4 x 10 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

77

Husqvarna 819131410

Washer 13/32 x 7/8 x 10 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

78

Husqvarna 532121352

Keeper-L.H. Mandrel

$

$

Not available

Husqvarna 532121826

Mower Deck, Complete
(Superseded to 532131508)

$

$

Not available
