HVGTV 160 AR - Husqvarna Garden Tractor (1990-01) Steering, Front Axle And Wheels Parts Diagram

Garden Tractor

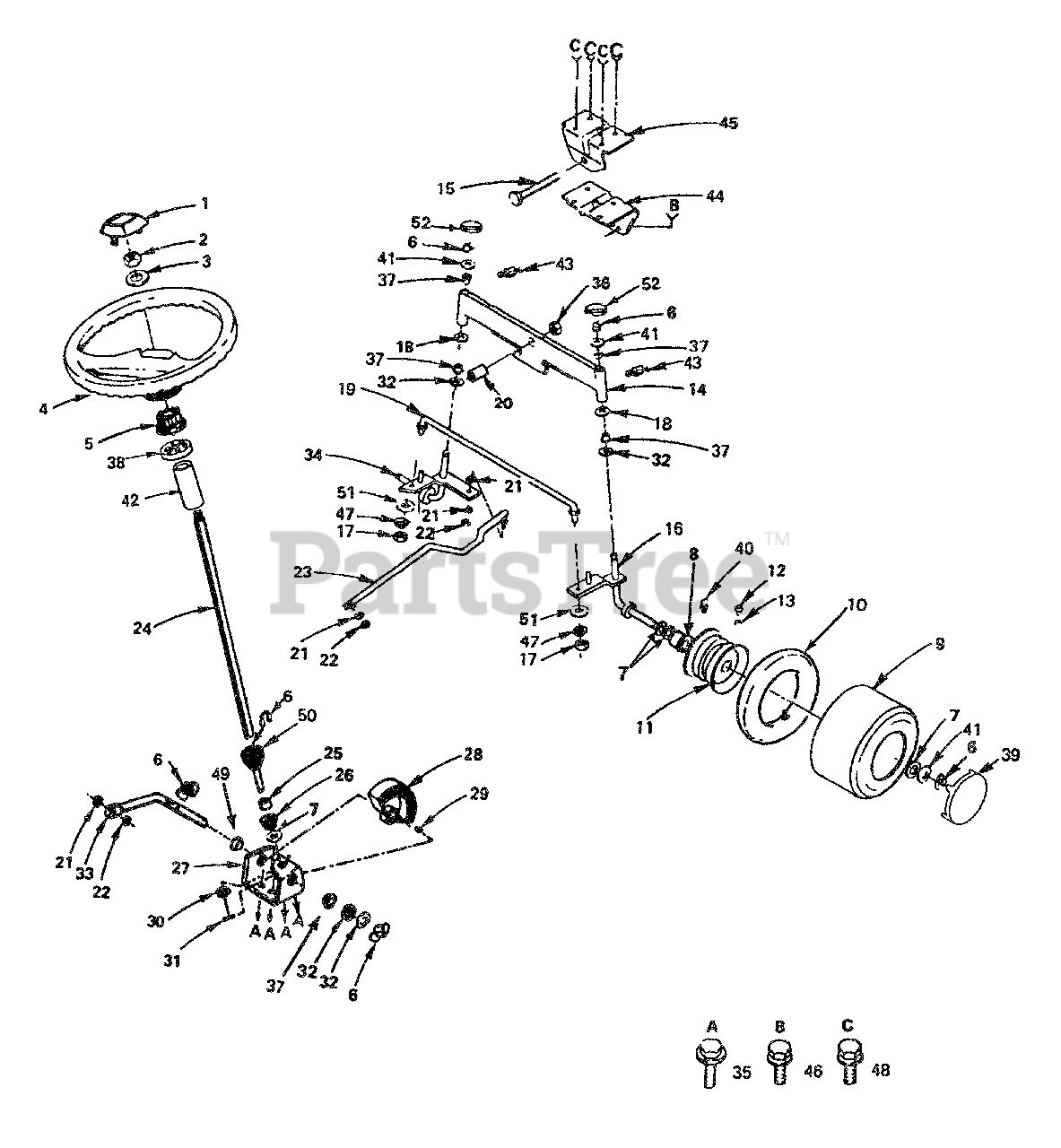

Steering, Front Axle And Wheels Parts Diagram

  • Title

1

Husqvarna 532124416

Insert-Steering Wheel

$

$

Not available

2

Husqvarna 873940800

Hex Toplock Jam 1/2-20

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$7.49

$

In Stock, Qty 11

0

3

Husqvarna 532100712

Washer 17/32 x 2-1/4 x .160

$

$

Not available

4

Husqvarna 532124415

Steering Wheel

$

$

Not available

5

Husqvarna 532100711

Adapter-Wheel, Steering
(Superseded to 587738905)

$7.99

$

In Stock, Qty 20+

0

6

Husqvarna 812000029

Klip Ring

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 532009040

Bearings Wheel, Front

$6.49

$

In Stock, Qty 20+

0

9

Husqvarna 532106222

Tire-Rib Tread (Tubeless)
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532059904

Tube-Tire

Note: (not furnished with Tractor)

$37.99

$

In Stock, Qty 20+

0

11

Husqvarna 532106732

Rim Assembly 6" Front

Note: (Inc. 2 each Key No. 8)

$87.99

$

In Stock, Qty 20+

0

12

Husqvarna 532065139

Stem-Valve

$10.99

$

In Stock, Qty 20+

0

13

Husqvarna 532059192

Cap-Valve

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 532108075

Axle Assembly-Front

$

$

Not available

15

Husqvarna 874761060

Bolt-Hex 5/8-11 x 3-3/4

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532105654

Spindle Assembly-R.H.
(Superseded to 532130524)

$

$

Not available

17

Husqvarna 873810500

Nut-Hex 5/16-24
(Superseded to 873610500)

$

$

Not available

18

Husqvarna 819272016

Washer 27/32 x 1-1 /4 x 16 Ga.

$6.49

$

In Stock, only 4 left!

0

19

Husqvarna 532121334

Tie Rod
(Superseded to 532170162)

$93.99

$

In Stock, Qty 5

0

20

Husqvarna 532110438

Bearing
(Superseded to 532155134)

$

$

Not available

21

Husqvarna 810040600

Lockwasher 3/8
(Superseded to 596238701)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 873610600

Nut-Hex 3/8-24
(Superseded to 873800600)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532105727

Drag Link

$

$

Not available

24

Husqvarna 532109557

Shaft Assembly-Steering

$

$

Not available

25

Husqvarna 532074580

Spacer

$

$

Not available

26

Husqvarna 532071208

Bushing-Steering Rod

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532109432

Bracket Assembly-Steering
(Superseded to 532110150)

$

$

Not available

28

Husqvarna 532108684

Gear-Sector

$

$

Not available

29

Husqvarna 532106126

Woodruff Key 3/16 x 3/4

$

$

Not available

30

Husqvarna 532101930

Washer, hardened

$

$

Not available

31

Husqvarna 532002882

Drive Pin 3/16 x 1
(Superseded to 532001572)

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532124931

Bearing, Thrust
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

33

Husqvarna 532108683

Rod-Steering

$

$

Not available

34

Husqvarna 532105656

Spindle Assembly-L.H.
(Superseded to 532156483)

$26.99

$

In Stock, only 1 left!

0

35

Husqvarna 817490612

Screw-Hex Washer Hd. Thread Forming Type TT 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

36

Husqvarna 873901000

Nut-Lock Flange, 5/8-11
(Superseded to 873681000)

$2.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532003366

Bearing

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 532106943

Spacer, Shaft Steering

$

$

Not available

39

Husqvarna 532124577

Cover, Wheel 6"

$

$

Not available

40

Husqvarna 532000278

Grease Fitting

$6.49

$

In Stock, Qty 20+

0

41

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 532106945

Tube, Shaft Steering

$

$

Not available

43

Husqvarna 532124836

Fitting, Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 3 left!

0

44

Husqvarna 532105664

Support-Saddle, Front

$9.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532105663

Support-Saddle, Rear

$

$

Not available

46

Husqvarna 817490508

Screw-Hex Washer Thd. Rolling 5/6-18 x 12
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 810040500

Lockwasher 5/16
(Superseded to 596238801)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 532122819

Screw-Special

$

$

Not available

49

Husqvarna 532109816

Nylinder, Snap In

$6.49

$

In Stock, only 2 left!

0

50

Husqvarna 532108685

Gear-Pinion

$

$

Not available

51

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

52

Husqvarna 532121232

Spindle Cap

$3.99

$

In Stock, Qty 20+

0
