HVGTV 160 AR - Husqvarna Garden Tractor (1990-01) Transaxle And Rear Wheel Parts Diagram

Garden Tractor

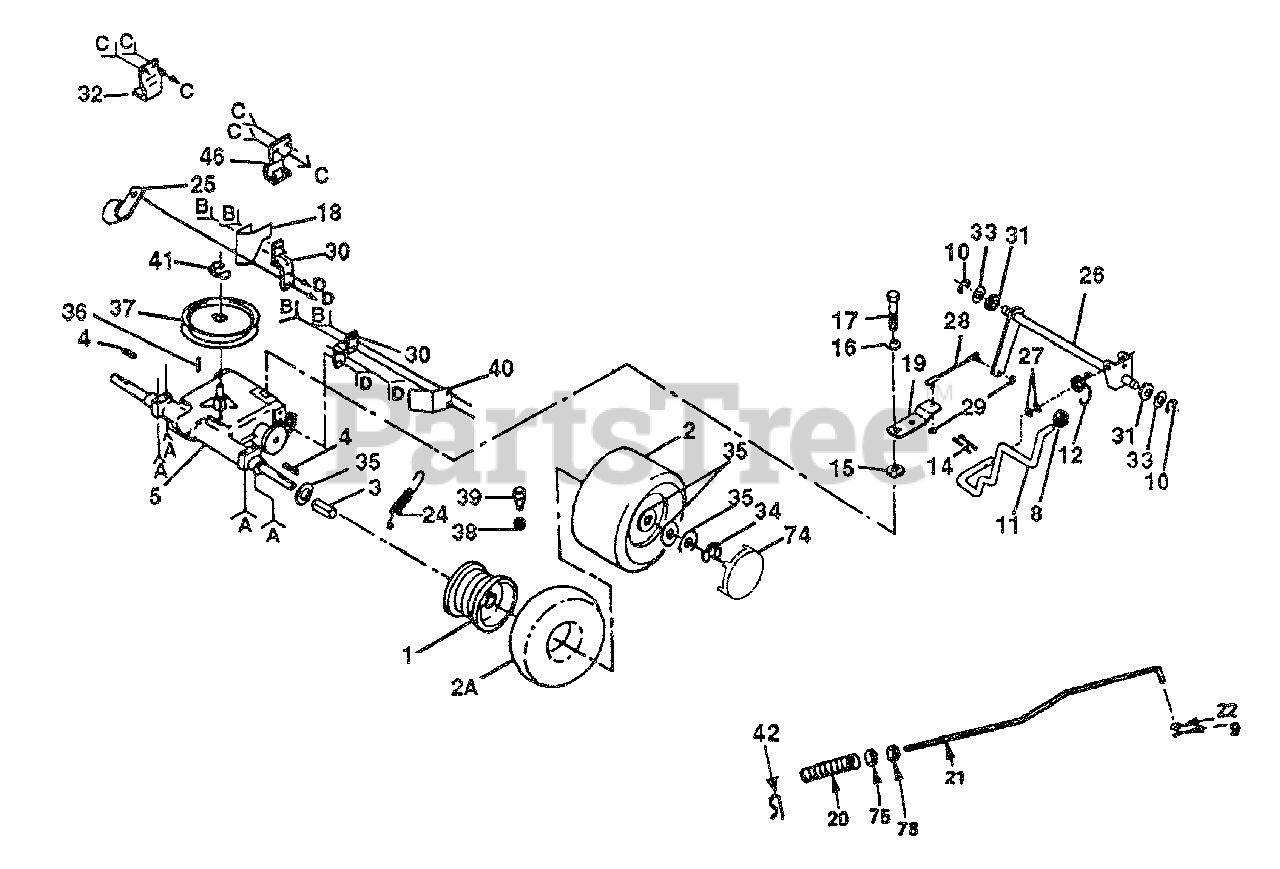

Transaxle And Rear Wheel Parts Diagram

  • Title

1

Husqvarna 532124074

Rim Assembly 8" Rear

$

$

Not available

2

Husqvarna 532124106

Tire
(Superseded to 532138756)

$284.99

$

Usually ships in 3-10 days

0

2A

Husqvarna 532007154

Tube-Tire

Note: (not furnished with Tractor)

$56.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532108097

Spacer-Split

$

$

Not available

4

Husqvarna 532124762

Key-Square 1/4 x 2
(Superseded to 532009396)

$

$

Not available

5

Husqvarna 532123797

Transaxle 6 speed, Peerless Model No. 143.820-016

$

$

Not available

8

Husqvarna 532106933

Knob Control

$7.99

$

In Stock, Qty 6

0

9

Husqvarna 876020412

Cotter Pin 1/8 x 3/4
(Superseded to 596029501)

$3.49

$

In Stock, Qty 5

0

10

Husqvarna 812000008

Ring, Klip

$9.49

$

In Stock, Qty 10

0

11

Husqvarna 532123781

Rod-Shifter
(Superseded to 532141002)

$

$

Not available

12

Husqvarna 532123782

Spring-Torsion

$

$

Not available

14

Husqvarna 876020416

Pin, Cotter 1/8 x 1
(Superseded to 596029601)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$2.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532105701

Washer-Shift Plate

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga.
(Superseded to 596204201)

$3.49

$

In Stock, only 3 left!

0

17

Husqvarna 871040412

Bolt-Hex 1/4-28 x 3/4, Gr. 8
(Superseded to 596136601)

$3.49

$

In Stock, only 1 left!

0

18

Husqvarna 532123791

Keeper, Belt Transaxle L.H.

$

$

Not available

19

Husqvarna 532123794

Arm, Shift

$

$

Not available

20

Husqvarna 532126909

Spring-Rod, Brake

$7.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532123786

Rod-Brake

$

$

Not available

22

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 532110422

Spring, Brake Return
(Superseded to 532146682)

$7.99

$

In Stock, only 2 left!

0

25

Husqvarna 532124996

Clip
(Superseded to 532002751)

$

$

Not available

26

Husqvarna 532123772

Shaft, Arm Shifter

$

$

Not available

27

Husqvarna 819171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 734117771)

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532123793

Rod, Tie
(Superseded to 532166230)

$

$

Not available

29

Husqvarna 873530400

Nut 1/4-28
(Superseded to 532150360)

$

$

Not available

30

Husqvarna 532123787

Strap-Torque

$

$

Not available

31

Husqvarna 532071208

Bushing, Steering Rod

$

$

Not available

32

Husqvarna 532123780

Bracket-Transaxle L.H.

$

$

Not available

33

Husqvarna 819212016

Washer 21/32 x 1-1/4 x 16 Ga.

$

$

Not available

34

Husqvarna 812000053

E-Ring

$3.99

$

In Stock, only 2 left!

0

35

Husqvarna 532123800

Washer 1-1/32 x 1-5/8 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532125096

Woodruff Key 3/16 x 3/4

$7.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532121327

Pulley, Transaxle

$

$

Not available

38

Husqvarna 532059192

Cap, Valve

$5.99

$

In Stock, only 2 left!

0

39

Husqvarna 532065139

Stem-Valve

$6.49

$

In Stock, Qty 20+

0

40

Husqvarna 532123792

Keeper, Belt Transaxle R.H.

$

$

Not available

41

Husqvarna 812000004

Ring, Retainer

$

$

Not available

42

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$4.99

$

In Stock, only 3 left!

0

46

Husqvarna 532123776

Bracket, Transaxle R.H.

$

$

Not available

74

Husqvarna 532124579

Cover, Wheel

$

$

Not available

75

Husqvarna 873800600

Locknut, Hex Washer Insert 3/8-16
(Superseded to 873680600)

$

$

Not available

78

Husqvarna 873350600

Nut-Hex Jam 3/8-16
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0
