HVGTV 160 AR - Husqvarna Garden Tractor (1990-01) Transaxle And Rear Wheel Parts Diagram

Garden Tractor

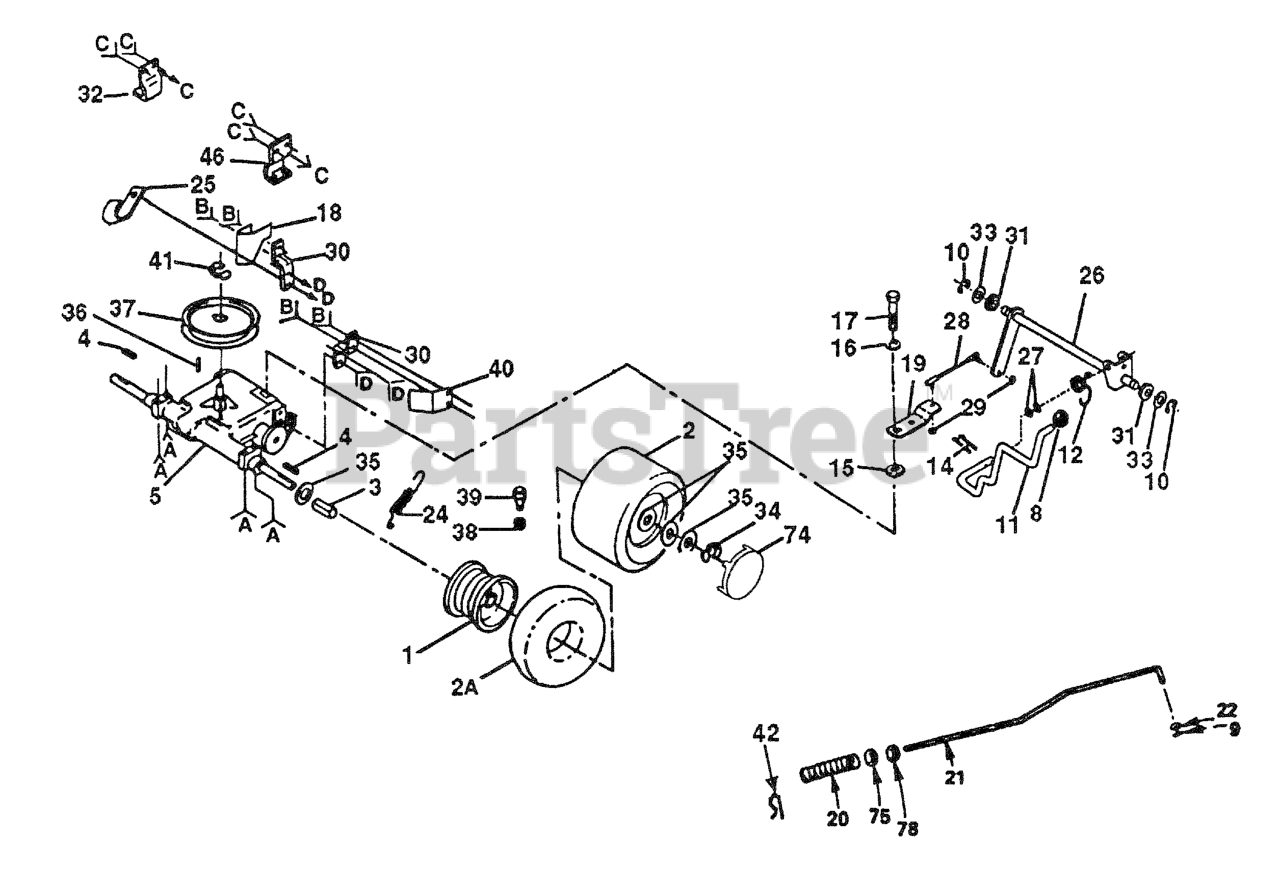

Transaxle And Rear Wheel Parts Diagram

  • Title

1

Husqvarna 532124074

RIM

$

$

Not available

2

Husqvarna 532124106

TIRE
(Superseded to 532138756)

$284.99

$

Usually ships in 3-10 days

0

2A

Husqvarna 532007154

TUBE.23X9.5-12

Note: (not furnished with Tractor)

$56.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532108097

SPACER HYT

$

$

Not available

4

Husqvarna 532124762

SQ KEY STD
(Superseded to 532009396)

$

$

Not available

5

Husqvarna 532123797

TRANSAXLE NLA

$

$

Not available

8

Husqvarna 532106933

KNOB T (1/2-HOLE)

$7.99

$

In Stock, Qty 5

0

9

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 812000008

KLIP RING

$9.49

$

In Stock, Qty 10

0

11

Husqvarna 532123781

ROD SHIFTER
(Superseded to 532141002)

$

$

Not available

12

Husqvarna 532123782

SPRING,TORSION

$

$

Not available

14

Husqvarna 876020416

PIN COTTER
(Superseded to 596029601)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$2.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532105701

WASH-SHFT PLT LT

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 819091216

WASHER PM
(Superseded to 596204201)

$3.49

$

In Stock, Qty 10

0

17

Husqvarna 871040412

BOLT LT
(Superseded to 596136601)

$3.49

$

In Stock, only 1 left!

0

18

Husqvarna 532123791

KEEPER BELT LH

$

$

Not available

19

Husqvarna 532123794

ARM,SHIFT

$

$

Not available

20

Husqvarna 532126909

SPRING,ROD BRAKE

$7.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532123786

ROD BRAKE

$

$

Not available

22

Husqvarna 819131316

WASHER
(Superseded to 596565301)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 532110422

SPRING T
(Superseded to 532146682)

$7.99

$

In Stock, only 2 left!

0

25

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

26

Husqvarna 532123772

SHAFT,SHIFTER

$

$

Not available

27

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$4.99

$

In Stock, only 1 left!

0

28

Husqvarna 532123793

ROD,TIE
(Superseded to 532166230)

$

$

Not available

29

Husqvarna 873530400

NUT 1/4-28
(Superseded to 532150360)

$

$

Not available

30

Husqvarna 532123787

STRAP TORQUE

$

$

Not available

31

Husqvarna 532071208

BUSHING.STEERING.ROD LTB-WSL

$

$

Not available

32

Husqvarna 532123780

BRKT TRANS LH

$

$

Not available

33

Husqvarna 819212016

WASHER D

$

$

Not available

34

Husqvarna 812000053

E RING HYT

$3.99

$

In Stock, only 4 left!

0

35

Husqvarna 532123800

WASHER

$3.99

$

In Stock, Qty 10

0

36

Husqvarna 532125096

KEY STD (1373) DANA

$7.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532121327

PULLEY TRANSAXLE

$

$

Not available

38

Husqvarna 532059192

VALVE CAP

$5.99

$

In Stock, Qty 7

0

39

Husqvarna 532065139

VALVE STEM LT

$6.49

$

In Stock, Qty 20+

0

40

Husqvarna 532123792

KEEPER,BELT RH

$

$

Not available

41

Husqvarna 812000004

Ring, Retainer

$

$

Not available

42

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 18

0

46

Husqvarna 532123776

BRKT TRANS RH

$

$

Not available

74

Husqvarna 532124579

COVER,WHEEL

$

$

Not available

75

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

78

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0
