HVT 1500 - Husqvarna Hover String Trimmer (1997-05) Hovering Trimmer Parts Diagram

Hover String Trimmer

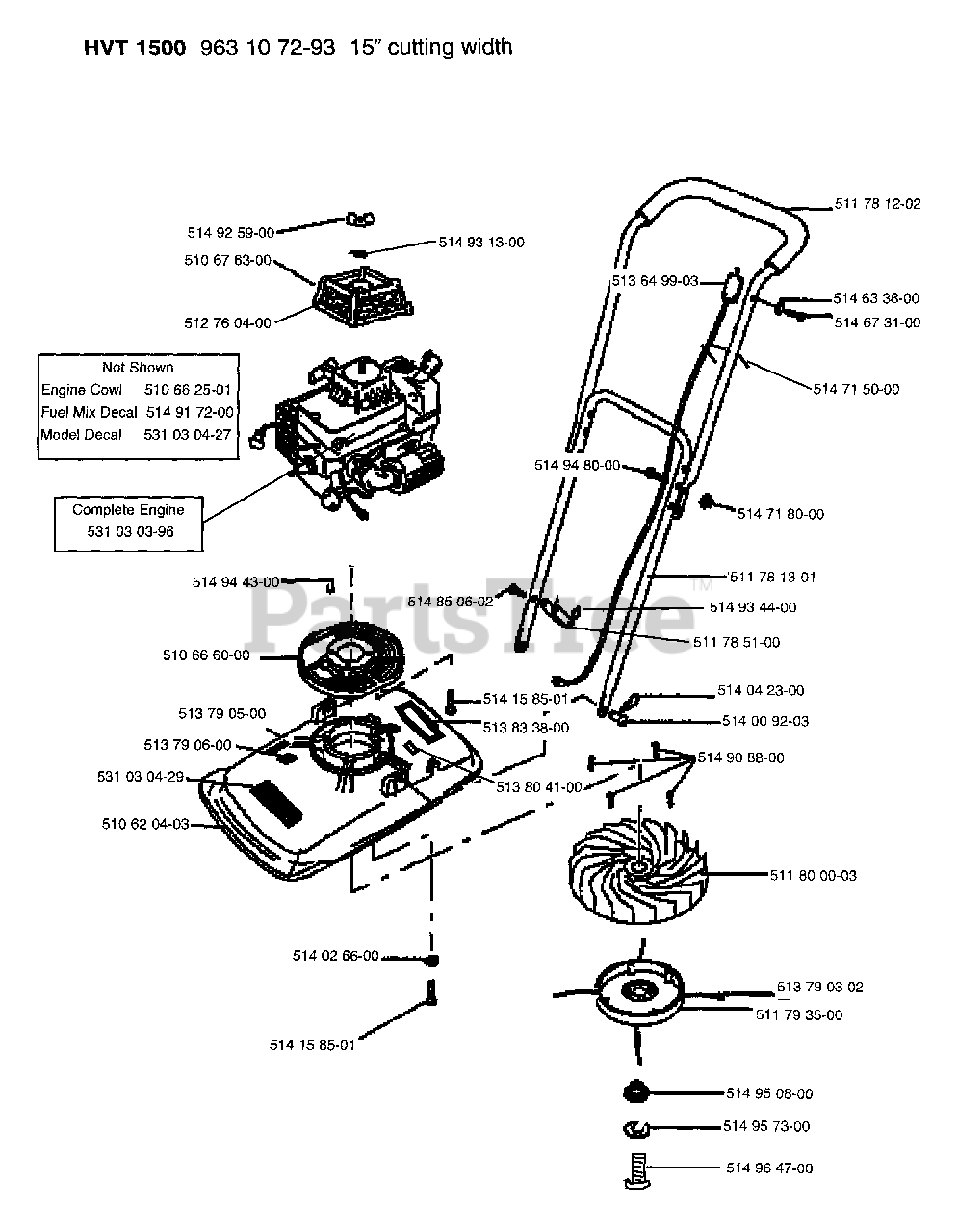

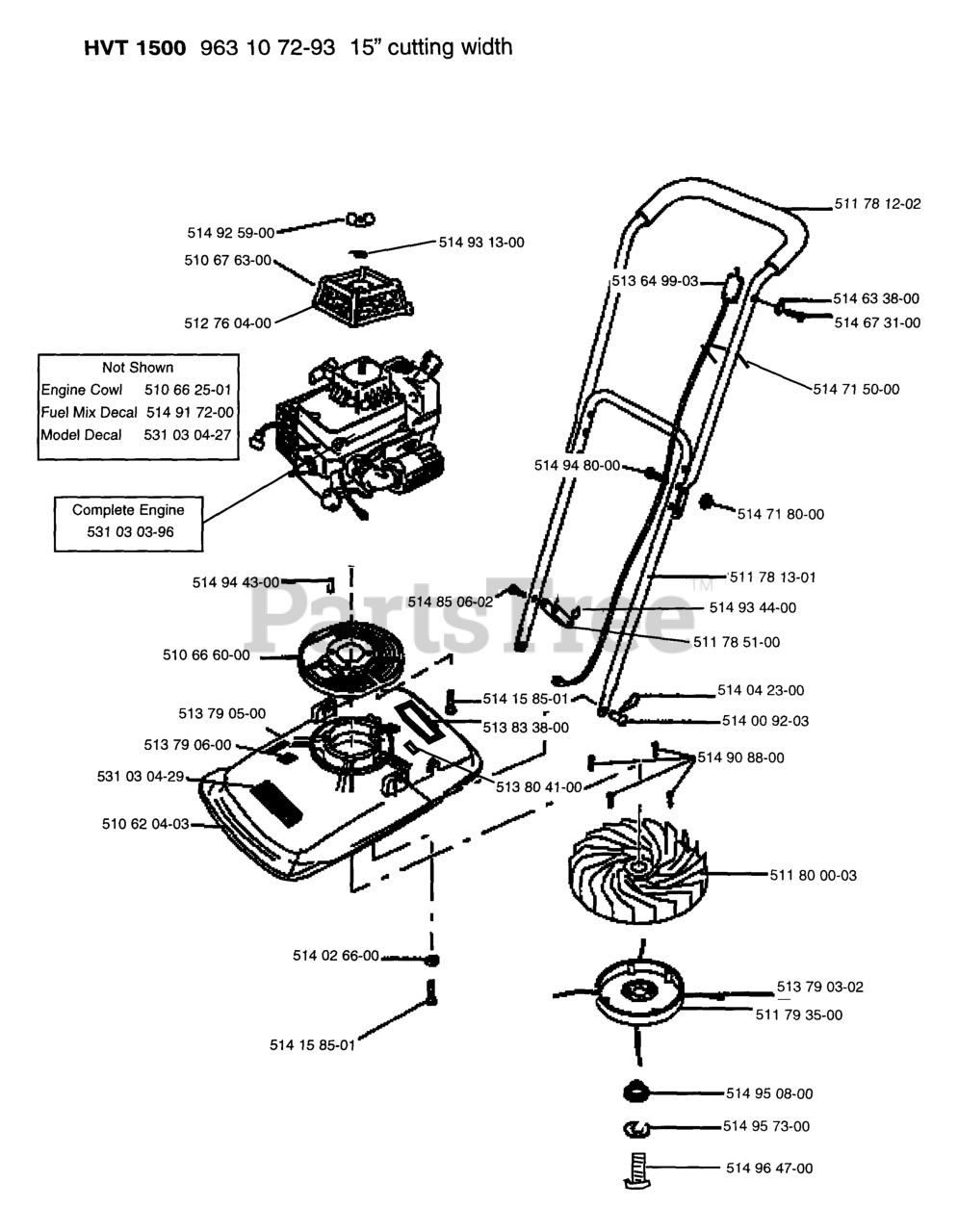

Hovering Trimmer Parts Diagram

  • Title

963107293

Husqvarna 963107293

$

$

Currently unavailable

514925900

Husqvarna 514925900

WING NUT

$

$

Not available

510676300

Husqvarna 510676300

COVER

$

$

Not available

512760400

Husqvarna 512760400

FILTER

$

$

Not available

510662501

Husqvarna 510662501

ENGINE COWL/STARTER

$

$

Not available

514917200

Husqvarna 514917200

LABEL "FUEL MIXTURE"

$

$

Not available

531030427

Husqvarna 531030427

DECAL HVT1500

$

$

Not available

531030396

Husqvarna 531030396

TC300 TECUMSEH ENGINE NLA

$

$

Not available

514944300

Husqvarna 514944300

KEY-4MM

$

$

Not available

510666000

Husqvarna 510666000

ENGINE ADAPTOR

$

$

Not available

513790500

Husqvarna 513790500

LABEL:"STEP HERE"

$

$

Not available

513790600

Husqvarna 513790600

LABEL:"HOT MUFFLER"

$

$

Not available

531030429

Husqvarna 531030429

DECAL HVT/LOGO NLA

$

$

Not available

510620403

Husqvarna 510620403

HOOD - HVT

$

$

Not available

514026600

Husqvarna 514026600

WASHER

$4.99

$

Usually ships in 3-10 days

0

514158501

Husqvarna 514158501

SCREW

$

$

Not available

513790302

Husqvarna 513790302

HVT TRIMMER LINE
(Superseded to 639003001)

$

$

Not available

511793500

Husqvarna 511793500

CUTTING DISC/HVT1200-1500

$

$

Not available

514950800

Husqvarna 514950800

WASHER

$

$

Not available

514957300

Husqvarna 514957300

LOCKWASHER

$

$

Not available

514964700

Husqvarna 514964700

BOLT

$

$

Not available

514934400

Husqvarna 514934400

STAR LOCKWASHER

$

$

Not available

511785100

Husqvarna 511785100

LEVER/UPSTOP LATCH

$

$

Not available

514042300

Husqvarna 514042300

CLIP/SPRING

$5.99

$

Usually ships in 3-10 days

0

514009203

Husqvarna 514009203

PIN/PIVOT

$5.99

$

Usually ships in 3-10 days

0

625908800

Husqvarna 625908800

$

$

Currently unavailable

511800003

Husqvarna 511800003

IMPELLAR

$

$

Not available

514633800

Husqvarna 514633800

WASHER, CUP TYPE

$

$

Not available

514673100

Husqvarna 514673100

SCREW-ON/OFF SWITCH

$

$

Not available

514715000

Husqvarna 514715000

CABLE TIE

$

$

Not available

514718000

Husqvarna 514718000

NUT

$

$

Not available

514948000

Husqvarna 514948000

HANDLE BOLT

$

$

Not available

513649903

Husqvarna 513649903

ON/OFF SWITCH W/CABLE

$

$

Not available

514931300

Husqvarna 514931300

WASHER

$

$

Not available

511781202

Husqvarna 511781202

$

$

Currently unavailable

511781301

Husqvarna 511781301

HANDLE/LOWER

$

$

Not available

514860602

Husqvarna 514860602

$

$

Currently unavailable

514158501

Husqvarna 514158501

SCREW

$

$

Not available

513833800

Husqvarna 513833800

WARNING LABEL HVT

$

$

Not available

513804100

Husqvarna 513804100

LABEL "FINGER WARNING"

$

$

Not available
