HVT 40 - Husqvarna Hover String Trimmer (2001-03) Assembly Parts Diagram

Hover String Trimmer

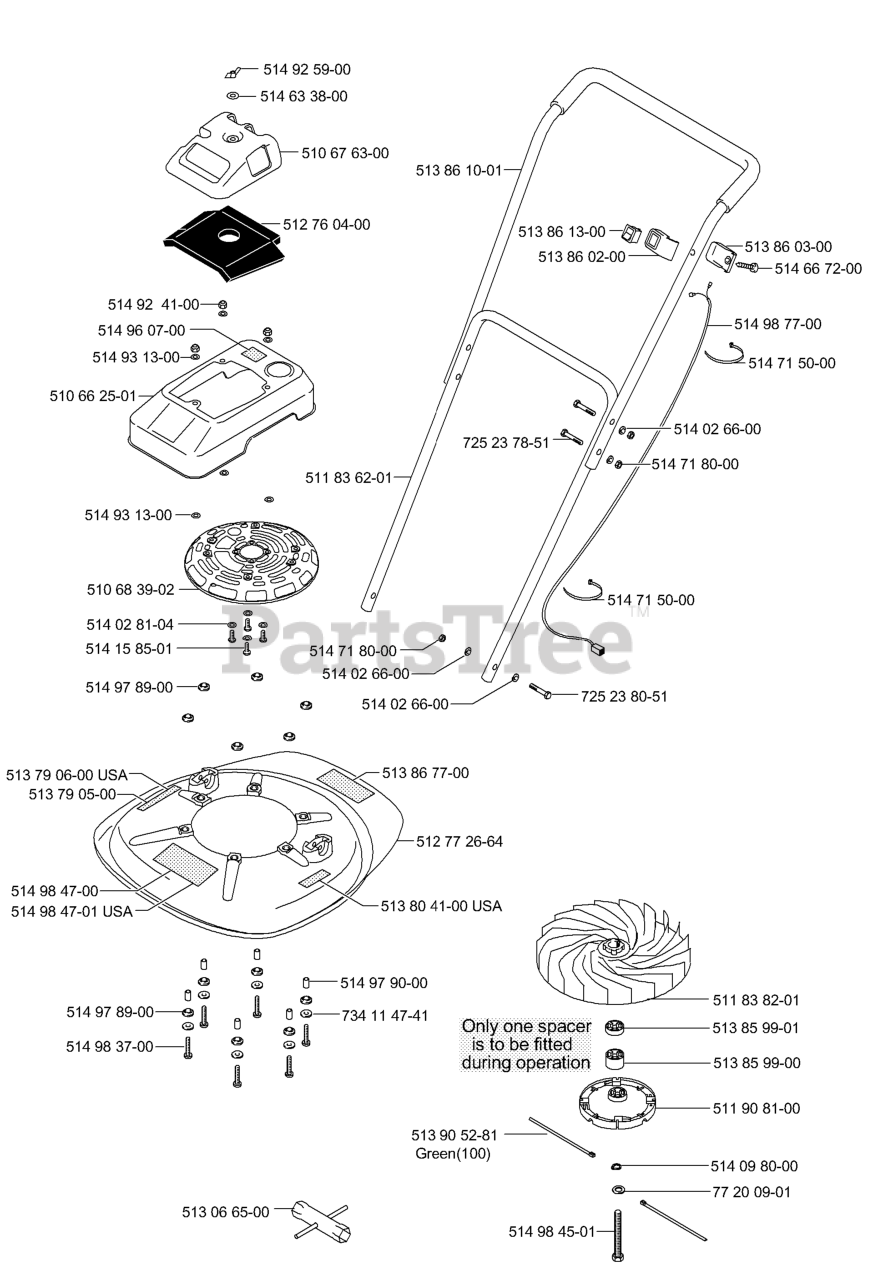

Assembly Parts Diagram

  • Title

514925900

Husqvarna 514925900

WING NUT

$

$

Not available

514633800

Husqvarna 514633800

WASHER, CUP TYPE

$

$

Not available

510676300

Husqvarna 510676300

COVER

$

$

Not available

513861001

Husqvarna 513861001

HANDLE ASSY UPPER

$

$

Not available

512760400

Husqvarna 512760400

FILTER

$

$

Not available

513861300

Husqvarna 513861300

SWITCH

$

$

Not available

513860200

Husqvarna 513860200

UPPER SWITCHBOX

$

$

Not available

513860300

Husqvarna 513860300

LOWER SWITCHBOX

$

$

Not available

514667200

Husqvarna 514667200

SCREW

$

$

Not available

514987700

Husqvarna 514987700

CABLE

$

$

Not available

514715000

Husqvarna 514715000

CABLE TIE

$

$

Not available

514026600

Husqvarna 514026600

WASHER

$4.99

$

Usually ships in 3-10 days

0

514718000

Husqvarna 514718000

NUT

$

$

Not available

725237851

Husqvarna 725237851

SCREW

$6.49

$

Usually ships in 3-10 days

0

511836201

Husqvarna 511836201

LOWER HANDLE

$

$

Not available

514924100

Husqvarna 514924100

NUT

$

$

Not available

514960700

Husqvarna 514960700

DECAL

$

$

Not available

514931300

Husqvarna 514931300

WASHER

$

$

Not available

510662501

Husqvarna 510662501

ENGINE COWL/STARTER

$

$

Not available

514931300

Husqvarna 514931300

WASHER

$

$

Not available

510683902

Husqvarna 510683902

ADAPTOR PLATE

$

$

Not available

514028104

Husqvarna 514028104

WASHER

$

$

Not available

514158501

Husqvarna 514158501

SCREW

$

$

Not available

514978900

Husqvarna 514978900

GASKET

$

$

Not available

513790600

Husqvarna 513790600

LABEL:"HOT MUFFLER"

Note: USA

$

$

Not available

513790500

Husqvarna 513790500

LABEL:"STEP HERE"

$

$

Not available

514718000

Husqvarna 514718000

NUT

$

$

Not available

514026600

Husqvarna 514026600

WASHER

$4.99

$

Usually ships in 3-10 days

0

514026600

Husqvarna 514026600

WASHER

$4.99

$

Usually ships in 3-10 days

0

513867700

Husqvarna 513867700

DECAL

$

$

Not available

514715000

Husqvarna 514715000

CABLE TIE

$

$

Not available

725238051

Husqvarna 725238051

SCREW M6X50

$4.99

$

Usually ships in 3-10 days

0

511838201

Husqvarna 511838201

IMPELLAR ASSY

$

$

Not available

513859901

Husqvarna 513859901

DISC SPACER

$

$

Not available

512772664

Husqvarna 512772664

HOOD - HVT

$

$

Not available

513804100

Husqvarna 513804100

LABEL "FINGER WARNING"

Note: USA

$

$

Not available

514979000

Husqvarna 514979000

BUSHING

$

$

Not available

734114741

Husqvarna 734114741

WASHER

$4.99

$

In Stock, only 3 left!

0

514984700

Husqvarna 514984700

DECAL
(Superseded to 514984701)

$

$

Not available

514984701

Husqvarna 514984701

DECAL

Note: USA

$

$

Not available

514978900

Husqvarna 514978900

GASKET

$

$

Not available

514983700

Husqvarna 514983700

SCREW

$

$

Not available

513066500

Husqvarna 513066500

KEY

$

$

Not available

513905281

Husqvarna 513905281

Hover Trimmer Line, Green HVT40 20-Pack
(Superseded to 513905289)

$

$

Not available

514984501

Husqvarna 514984501

BOLT

$

$

Not available

513859900

Husqvarna 513859900

DISC SPACER

$

$

Not available

511908100

Husqvarna 511908100

CUTTING DISC

$

$

Not available

514098000

Husqvarna 514098000

FLAT WASHER

$

$

Not available

77200901

Husqvarna 77200901

$

$

Not available
