HVT 40 - Husqvarna Hover String Trimmer (2002-04) Spare Parts Parts Diagram

Hover String Trimmer

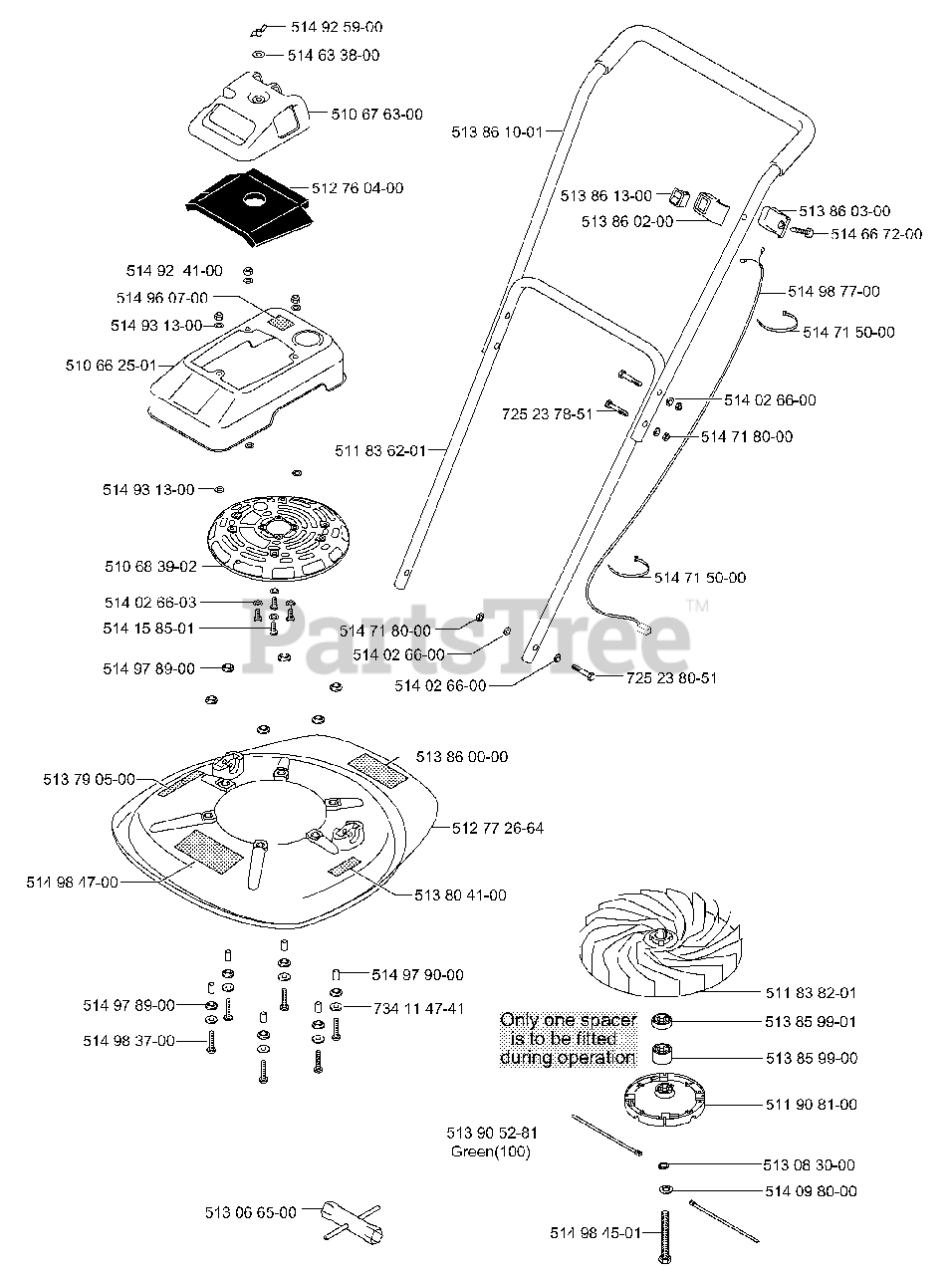

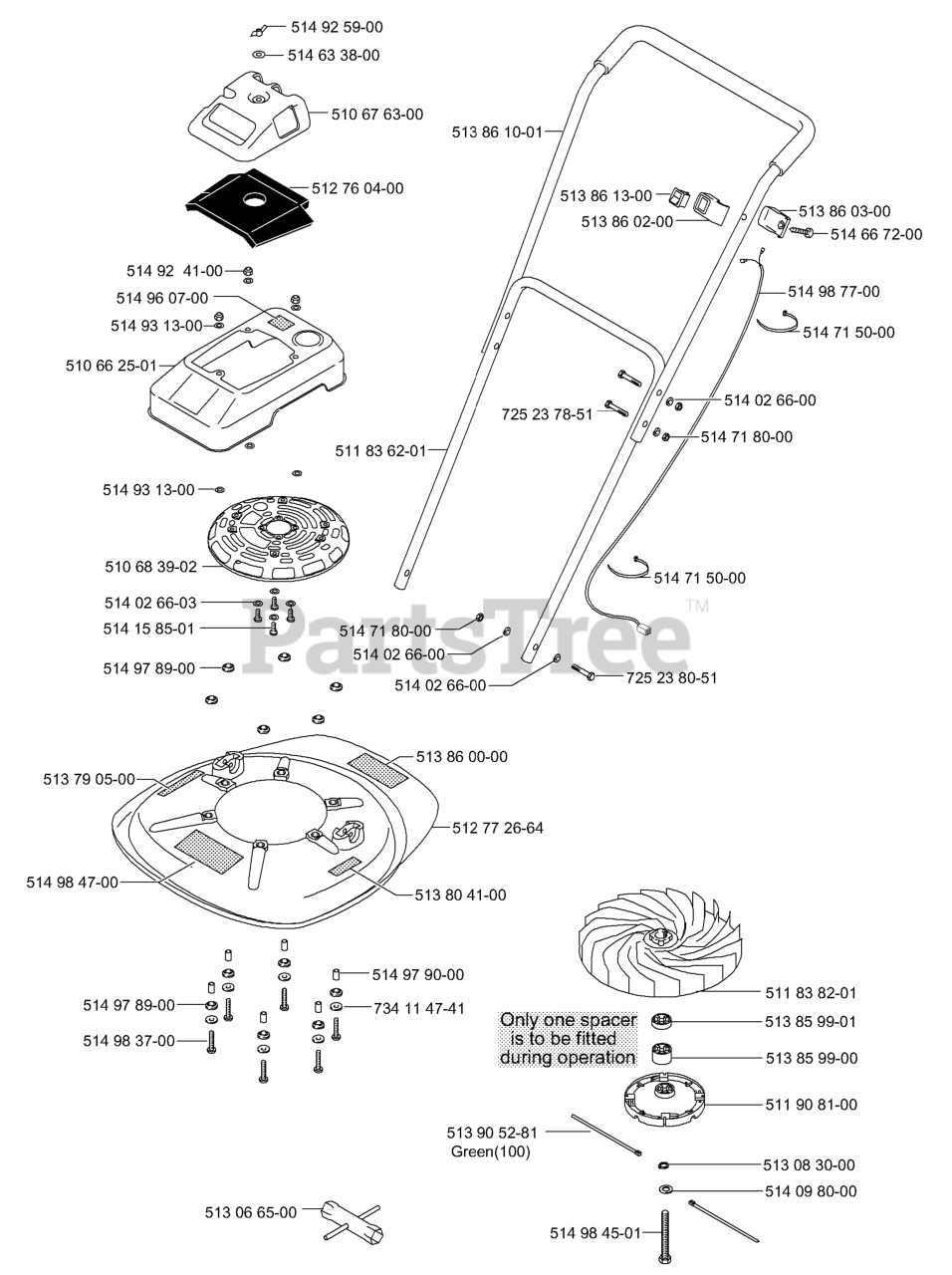

Spare Parts Parts Diagram

  • Title

514925900

Husqvarna 514925900

Wing Nut

$

$

Not available

514633800

Husqvarna 514633800

Washer, Cup Type

$

$

Not available

510676300

Husqvarna 510676300

COVER

$

$

Not available

513861001

Husqvarna 513861001

Handle Assy Upper

$

$

Not available

512760400

Husqvarna 512760400

FILTER

$

$

Not available

513861300

Husqvarna 513861300

SWITCH

$

$

Not available

513860200

Husqvarna 513860200

UPPER SWITCHBOX

$

$

Not available

513860300

Husqvarna 513860300

LOWER SWITCHBOX

$

$

Not available

514667200

Husqvarna 514667200

SCREW

$

$

Not available

514987700

Husqvarna 514987700

Cable

$

$

Not available

514715000

Husqvarna 514715000

Cable Tie

$

$

Not available

514026600

Husqvarna 514026600

WASHER

$7.99

$

Usually ships in 3-10 days

0

514718000

Husqvarna 514718000

Nut

$

$

Not available

725237851

Husqvarna 725237851

SCREW

$5.99

$

Usually ships in 3-10 days

0

511836201

Husqvarna 511836201

Lower Handle

$

$

Not available

514924100

Husqvarna 514924100

Nut

$

$

Not available

514960700

Husqvarna 514960700

Decal

$

$

Not available

514931300

Husqvarna 514931300

Washer

$

$

Not available

510662501

Husqvarna 510662501

Engine Cowl/Starter

$

$

Not available

514931300

Husqvarna 514931300

Washer

$

$

Not available

510683902

Husqvarna 510683902

Adaptor Plate

$

$

Not available

514026603

Husqvarna 514026603

WASHER

$

$

Not available

514158501

Husqvarna 514158501

Screw

$

$

Not available

514978900

Husqvarna 514978900

Gasket

$

$

Not available

514715000

Husqvarna 514715000

Cable Tie

$

$

Not available

725238051

Husqvarna 725238051

SCREW M6X50

$2.49

$

Usually ships in 3-10 days

0

514718000

Husqvarna 514718000

Nut

$

$

Not available

514026600

Husqvarna 514026600

WASHER

$7.99

$

Usually ships in 3-10 days

0

514026600

Husqvarna 514026600

WASHER

$7.99

$

Usually ships in 3-10 days

0

513860000

Husqvarna 513860000

WARNING LABEL

$

$

Not available

512772664

Husqvarna 512772664

HOOD - HVT

$

$

Not available

513804100

Husqvarna 513804100

LABEL "FINGER WARNING"

$

$

Not available

513790500

Husqvarna 513790500

LABEL:"STEP HERE"

$

$

Not available

514984700

Husqvarna 514984700

DECAL
(Superseded to 514984701)

$

$

Not available

514978900

Husqvarna 514978900

Gasket

$

$

Not available

514983700

Husqvarna 514983700

Screw

$

$

Not available

513066500

Husqvarna 513066500

Key

$

$

Not available

514979000

Husqvarna 514979000

BUSHING

$

$

Not available

734114741

Husqvarna 734114741

WASHER

$3.49

$

Usually ships in 3-10 days

0

513905281

Husqvarna 513905281

Line 100ct Hvt40/Green
(Superseded to 513905289)

$

$

Not available

514984501

Husqvarna 514984501

Bolt

$

$

Not available

511838201

Husqvarna 511838201

IMPELLAR ASSY

$

$

Not available

513859901

Husqvarna 513859901

DISC SPACER

$

$

Not available

513859900

Husqvarna 513859900

DISC SPACER

$

$

Not available

511908100

Husqvarna 511908100

CUTTING DISC

$

$

Not available

513083000

Husqvarna 513083000

WASHER

$

$

Not available

514098000

Husqvarna 514098000

FLAT WASHER

$

$

Not available
