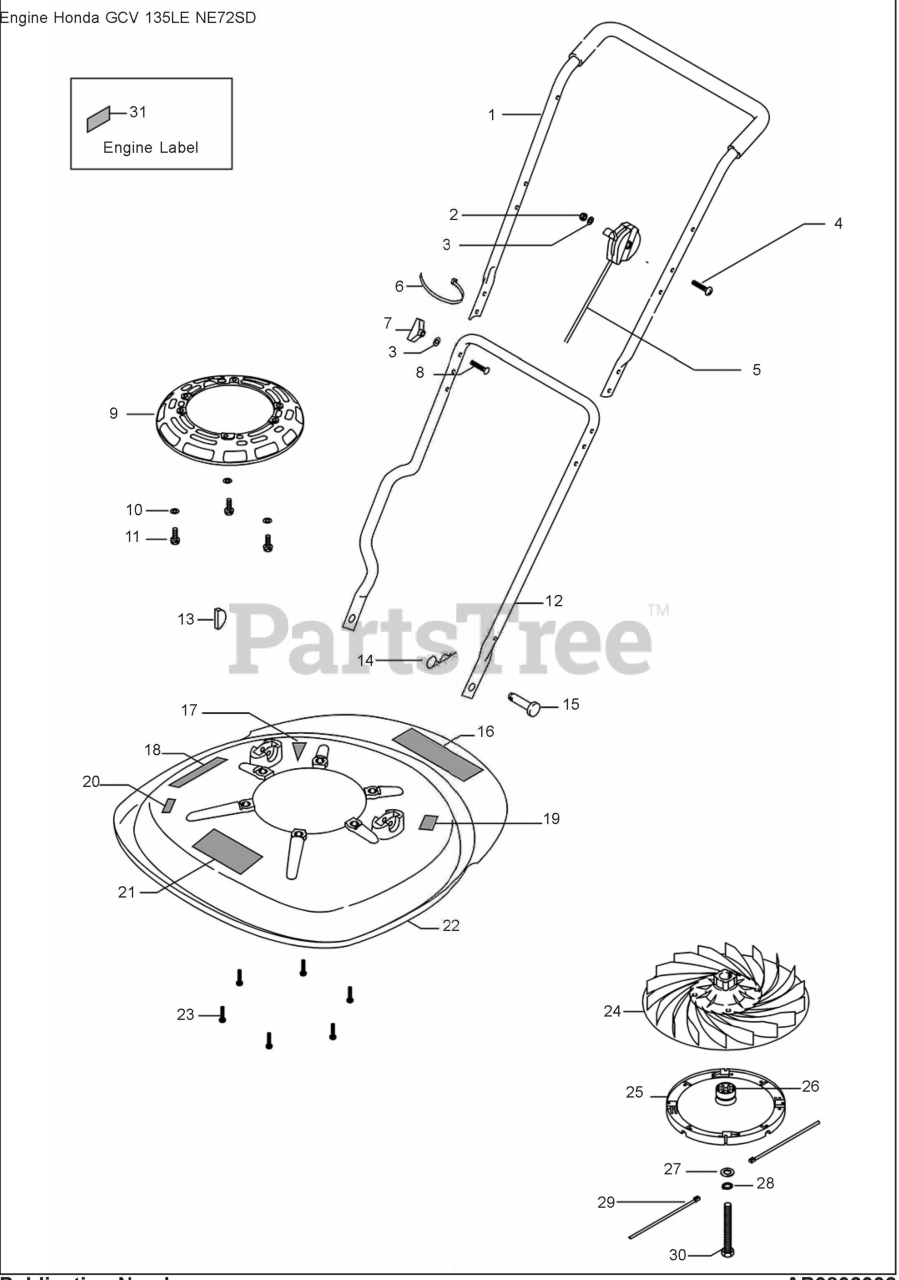

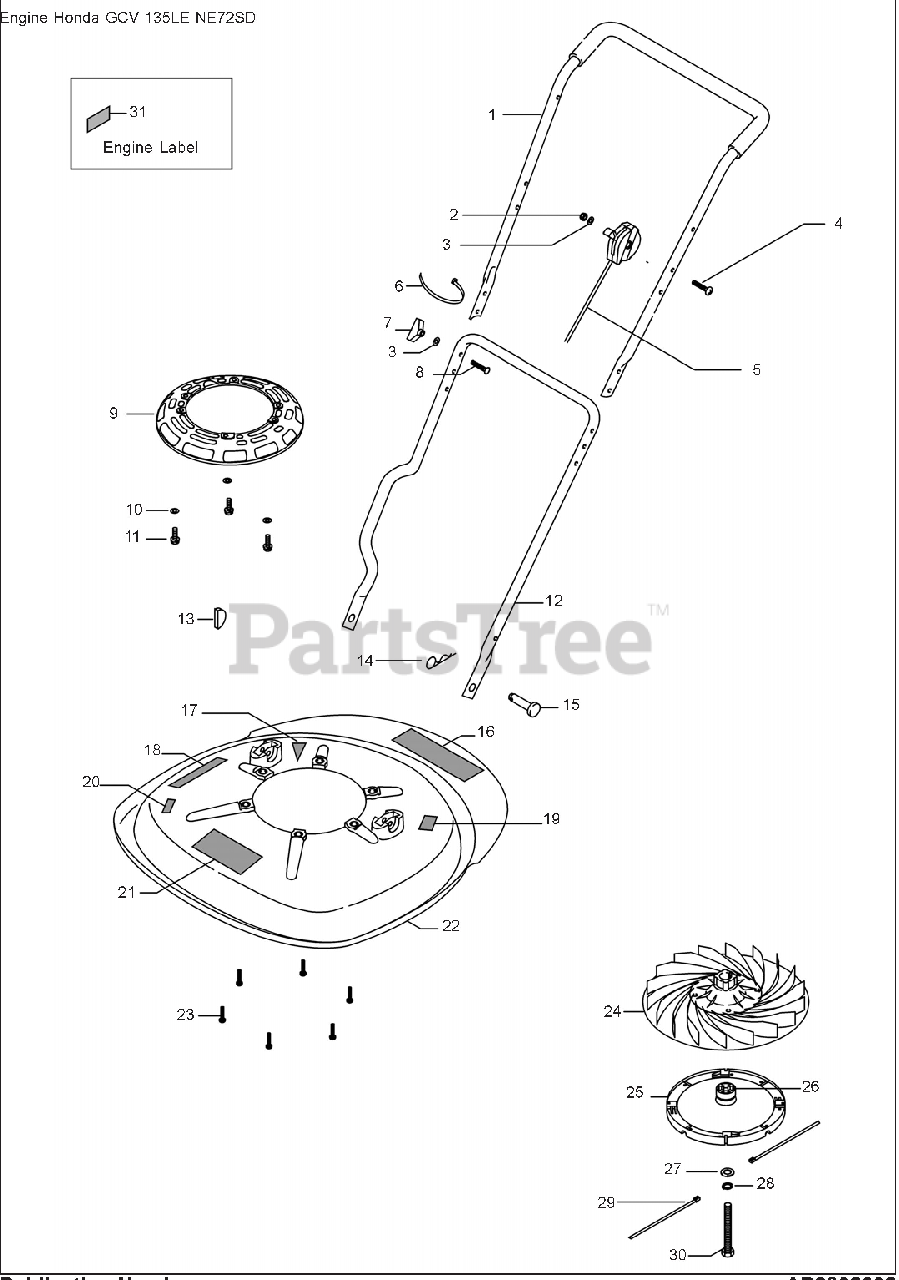

HVT 52 (963850294) - Husqvarna Hover String Trimmer (2008-05) Product Complete Parts Diagram

Hover String Trimmer

Product Complete Parts Diagram

  • Title

1

Husqvarna 511933400

UPPER HANDLE

$

$

Not available

2

Husqvarna 514718000

NUT M6 NYLOC GME/D

$

$

Not available

3

Husqvarna 514026600

WASHER

$7.99

$

Usually ships in 3-10 days

0

4

Husqvarna 725238151

SCREW M6X55

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 512811000

CHOKE CABLE

$

$

Not available

6

Husqvarna 513084200

TIE WRAP (3.5 X 150)

$

$

Currently unavailable

7

Husqvarna 513767900

WINGNUT M6

$

$

Not available

8

Husqvarna 514919801

BOLT

$

$

Not available

9

Husqvarna 510683900

ADAPTER PLATE

$

$

Not available

10

Husqvarna 514961900

WASHER

$

$

Not available

11

Husqvarna 513088200

SCREW

$

$

Not available

12

Husqvarna 511924800

LOWER HANDLE

$

$

Not available

13

Husqvarna 514005300

KEY

$14.99

$

Usually ships in 3-10 days

0

14

Husqvarna 514042300

CLIP/SPRING

$

$

Not available

15

Husqvarna 514009203

PIN/PIVOT

$

$

Not available

16

Husqvarna 513860000

WARNING LABEL

$

$

Not available

17

Husqvarna 513092400

DECAL

$

$

Not available

18

Husqvarna 513790500

LABEL:"STEP HERE"

$

$

Not available

19

Husqvarna 513790600

LABEL:"HOT MUFFLER"

$

$

Not available

20

Husqvarna 513804100

LABEL "FINGER WARNING"

$

$

Not available

21

Husqvarna 514984802

DECAL

$

$

Not available

22

Husqvarna 510702300

HVT52 HOOD

$

$

Not available

23

Husqvarna 513055800

SCREW

$

$

Not available

24

Husqvarna 511900702

HVT52 IMPELLER

$

$

Not available

25

Husqvarna 511838100

CUTTING DISC

$

$

Not available

26

Husqvarna 513859901

DISC SPACER

$

$

Not available

27

Husqvarna 514098000

FLAT WASHER

$

$

Not available

28

Husqvarna 514957301

WASHER

$

$

Not available

29

Husqvarna 513905282

LINE ASSY 100PCS/ HVT52

$

$

Not available

30

Husqvarna 510730800

BOLT

$

$

Not available

31

Husqvarna 513089900

LABEL MOWER PETROL SPILLAGE

$

$

Not available
