HVT 52 - Husqvarna Hover String Trimmer (1999-02) Hover Trimmer HVT 52 Parts Diagram

Hover String Trimmer

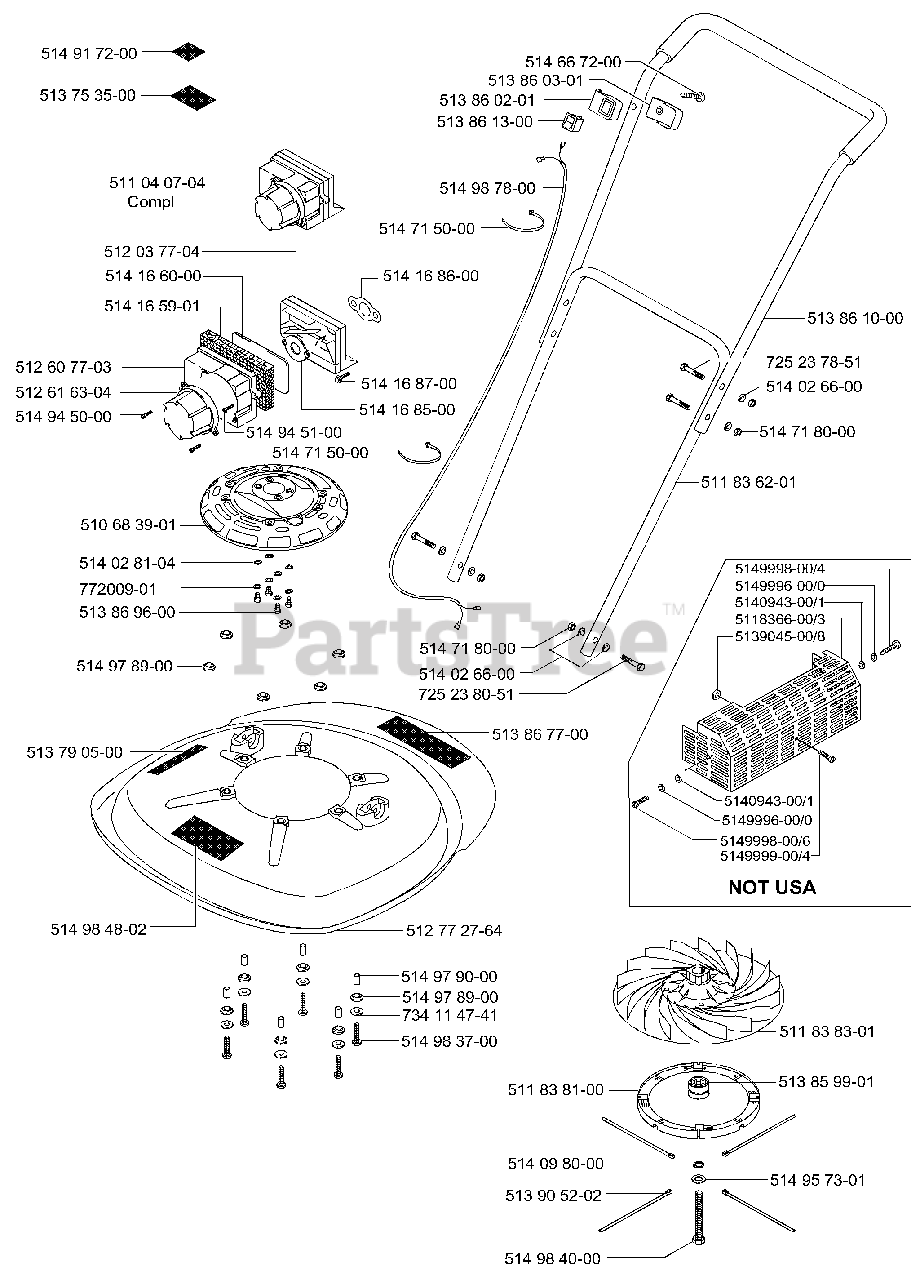

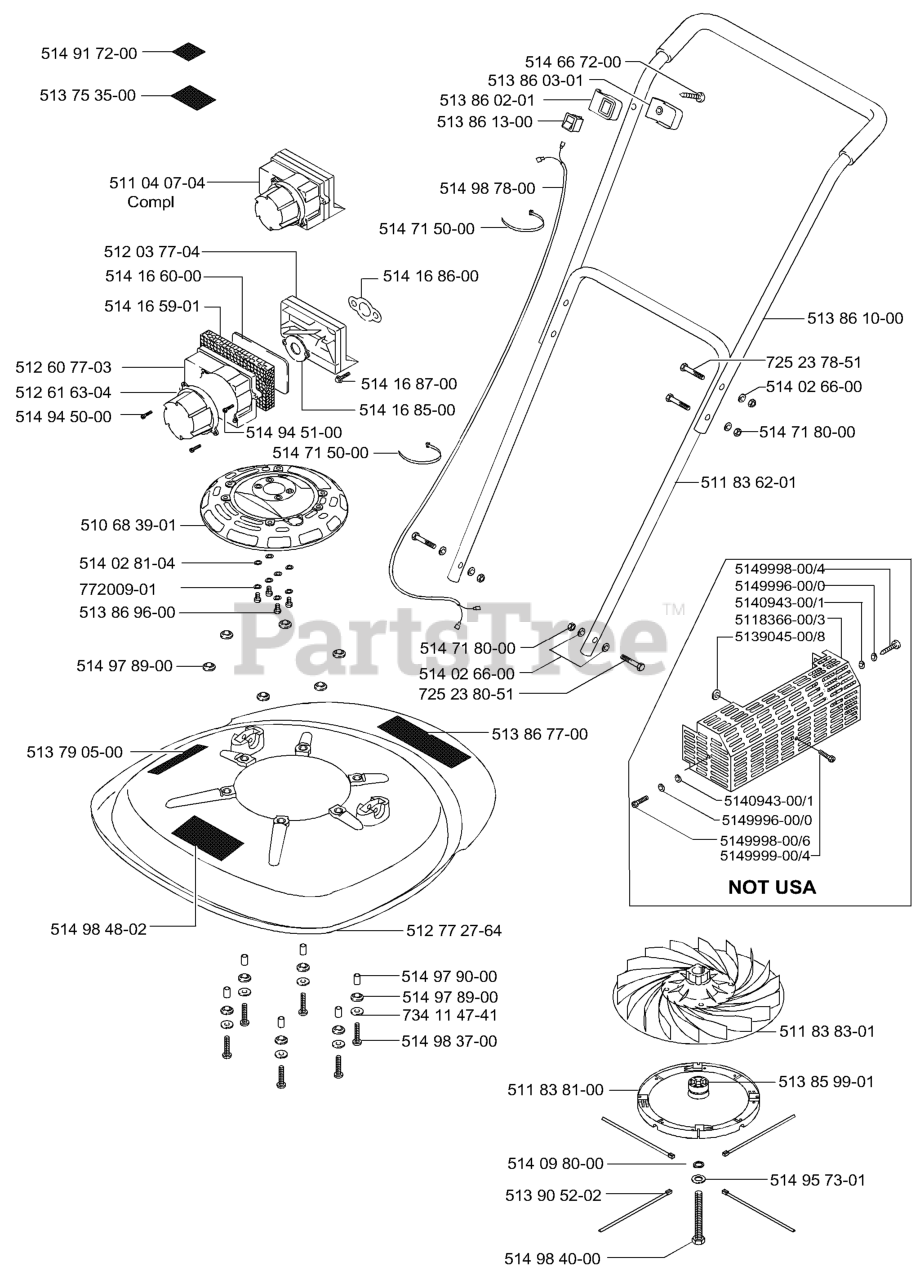

Hover Trimmer HVT 52 Parts Diagram

  • Title

514917200

Husqvarna 514917200

LABEL "FUEL MIXTURE"

$

$

Not available

513753500

Husqvarna 513753500

DECAL

$

$

Not available

511040704

Husqvarna 511040704

FILTER ASSY

$

$

Not available

512037704

Husqvarna 512037704

HOUSING, FILTER

$

$

Not available

514166000

Husqvarna 514166000

FILTER, CLOTH FILTER

$

$

Not available

514165901

Husqvarna 514165901

FOAM, PLASTIC FILTER

$

$

Not available

514667200

Husqvarna 514667200

SCREW

$

$

Not available

513860301

Husqvarna 513860301

LOWER SWITCHBOX

$

$

Not available

513860201

Husqvarna 513860201

UPPER SWITCHBOX

$

$

Not available

513861300

Husqvarna 513861300

SWITCH

$

$

Not available

514987800

Husqvarna 514987800

CABLE

$

$

Not available

514715000

Husqvarna 514715000

CABLE TIE

$

$

Not available

514168600

Husqvarna 514168600

GASKET

$

$

Not available

513861000

Husqvarna 513861000

UPPER HANDLE

$

$

Not available

725237851

Husqvarna 725237851

SCREW

$6.49

$

In Stock, only 2 left!

0

514026600

Husqvarna 514026600

WASHER

$4.99

$

Usually ships in 3-10 days

0

514718000

Husqvarna 514718000

NUT

$

$

Not available

511836201

Husqvarna 511836201

LOWER HANDLE

$

$

Not available

514999800

Husqvarna 514999800

SCREW

$

$

Not available

514999600

Husqvarna 514999600

WASHER

$

$

Not available

514094300

Husqvarna 514094300

WASHER, FLAT SLOTTED GUIDE

$

$

Not available

511836600

Husqvarna 511836600

COVER

$

$

Not available

513904500

Husqvarna 513904500

WASHER

$

$

Not available

514094300

Husqvarna 514094300

WASHER, FLAT SLOTTED GUIDE

$

$

Not available

514999600

Husqvarna 514999600

WASHER

$

$

Not available

514999800

Husqvarna 514999800

SCREW

$

$

Not available

514999900

Husqvarna 514999900

SCREW

$

$

Not available

511838301

Husqvarna 511838301

IMPELLAR ASSY

$

$

Not available

513859901

Husqvarna 513859901

DISC SPACER

$

$

Not available

514957301

Husqvarna 514957301

WASHER

$

$

Not available

514984000

Husqvarna 514984000

BOLT

$

$

Not available

513905202

Husqvarna 513905202

CUTTING LINE HVT52 SINGLE

$

$

Not available

514098000

Husqvarna 514098000

FLAT WASHER

$

$

Not available

511838100

Husqvarna 511838100

Cutting Disc

$

$

Not available

514983700

Husqvarna 514983700

SCREW

$

$

Not available

734114741

Husqvarna 734114741

WASHER

$4.99

$

In Stock, only 3 left!

0

514978900

Husqvarna 514978900

GASKET

$

$

Not available

514979000

Husqvarna 514979000

BUSHING

$

$

Not available

512772764

Husqvarna 512772764

HOOD - HVT
(Superseded to 511940201)

$

$

Not available

514984802

Husqvarna 514984802

DECAL

$

$

Not available

513790500

Husqvarna 513790500

LABEL:"STEP HERE"

$

$

Not available

514978900

Husqvarna 514978900

GASKET

$

$

Not available

513869600

Husqvarna 513869600

SCREW

$

$

Not available

77200901

Husqvarna 77200901

$

$

Not available

514028104

Husqvarna 514028104

WASHER

$

$

Not available

510683901

Husqvarna 510683901

ADAPTOR PLATE

$

$

Not available

514945000

Husqvarna 514945000

SCREW

$

$

Not available

512616304

Husqvarna 512616304

CAP, AIR INTAKE

$

$

Not available

512607703

Husqvarna 512607703

RETAINER, FILTER

$

$

Not available

514168700

Husqvarna 514168700

SCREW, FILTER MOUNTING

$

$

Not available

514168500

Husqvarna 514168500

SPACER

$

$

Not available

514945100

Husqvarna 514945100

SCREW

$

$

Not available

514715000

Husqvarna 514715000

CABLE TIE

$

$

Not available

514718000

Husqvarna 514718000

NUT

$

$

Not available

514026600

Husqvarna 514026600

WASHER

$4.99

$

Usually ships in 3-10 days

0

725238051

Husqvarna 725238051

SCREW M6X50

$4.99

$

Usually ships in 3-10 days

0

513867700

Husqvarna 513867700

DECAL

$

$

Not available
