HVT 52 - Husqvarna Hover String Trimmer (2008-05) General Assembly Parts Diagram

Hover String Trimmer

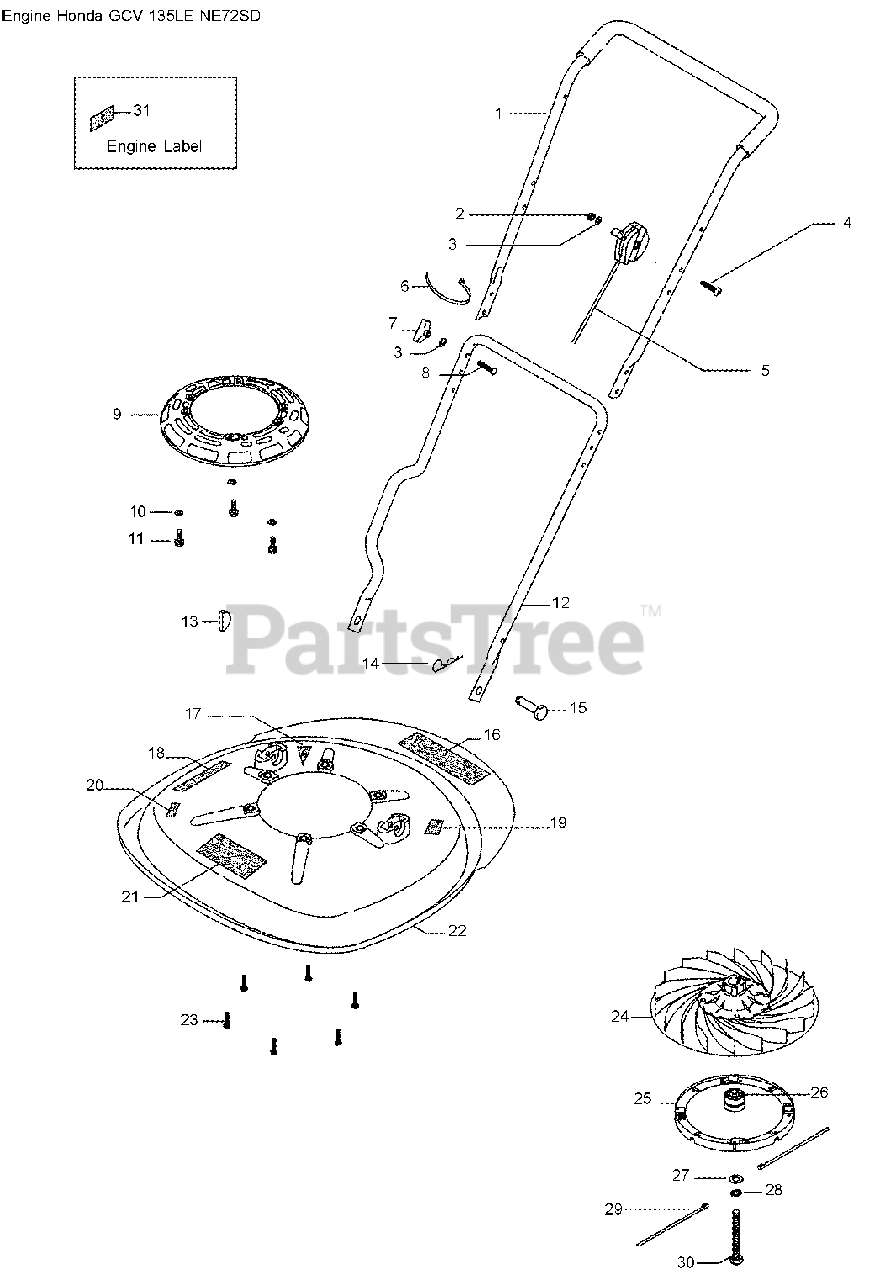

General Assembly Parts Diagram

  • Title

1

Husqvarna 511933400

HANDLE UPPER ASSEMBLY

$

$

Not available

2

Husqvarna 514718000

NUT M6 NYLOC GME/D

$

$

Not available

3

Husqvarna 514026600

WASHER 6.4-6.7 IDX12.1-12.3

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 725238151

SCREW M6 X 55

$6.99

$

In Stock, only 2 left!

0

5

Husqvarna 512811000

CABLE CHOKE PETROL HOVER

$

$

Not available

6

Husqvarna 513084200

TIE WRAP (3.5 X 150)

$

$

Currently unavailable

7

Husqvarna 513767900

PLASTIC WING NUT M6 ORANGE

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 514919801

BOLT M6 X 50 SQUARE CUP

$

$

Not available

9

Husqvarna 510683900

ADAPTOR PLATE SAE ENGINE MOU

$62.99

$

Usually ships in 3-10 days

0

10

Husqvarna 514961900

M10 WASHER

$

$

Not available

11

Husqvarna 513088200

SOCKET CAP SCREW 3/8X16 UNCT

$

$

Not available

12

Husqvarna 511924800

HANDLE LOWER

Note: (PET HOVER)

$

$

Not available

13

Husqvarna 514005300

KEY

Note: (WOODRUFF)

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 514042300

SPRING CLIP SMALL

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 514009203

PIVOT PIN

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 513860000

LABEL WARNING

$

$

Not available

17

Husqvarna 513092400

LABEL PETROL SPILLAGE

$

$

Not available

18

Husqvarna 513790500

LABEL STEP HERE WHEN STARTING

$

$

Not available

19

Husqvarna 513790600

LABEL HOT MUFFLER

$

$

Not available

20

Husqvarna 513804100

LABEL FINGER WARNING

$

$

Not available

21

Husqvarna 514984802

LABEL HUSQVARNA HVT52

$

$

Not available

22

Husqvarna 510702300

HOOD HVT52

$

$

Not available

23

Husqvarna 513055800

SCREW HEX FLANGE HEAD 10UNC

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 511900702

IMPELLER HVT52

$

$

Not available

25

Husqvarna 511838100

GCT DISC 21

$

$

Not available

26

Husqvarna 513859901

DISC SPACER-HVT

Note: (SHORT)

$

$

Not available

27

Husqvarna 514098000

WASHER I/D 0.390 X O/D 3/4 I

$

$

Not available

28

Husqvarna 514957301

WASHER-SPRING

$

$

Not available

29

Husqvarna 513905282

CUTTER LINE YELLOW

Note: (QTY 100)

$

$

Not available

30

Husqvarna 510730800

BOLT 3/8 UNF X 4" PATCHLOC

$

$

Not available

31

Husqvarna 513089900

LABEL MOWER PETROL SPILLAGE

$

$

Not available
