HW 1436 - Simplicity Pacer 36" Walk-Behind Mower 36" Mower Group (7052mg36) Parts Diagram

Pacer 36" Walk-Behind Mower

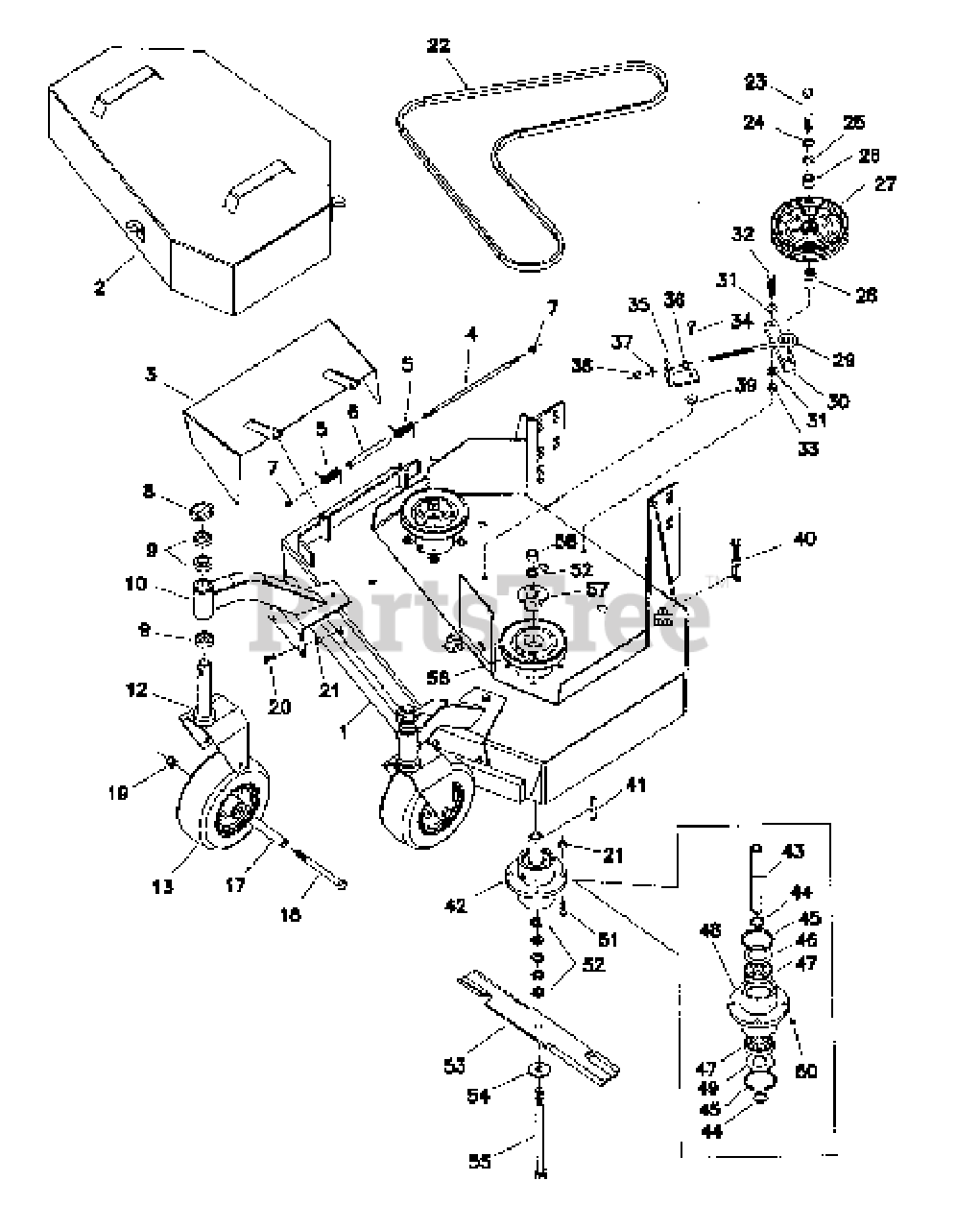

36" Mower Group (7052mg36) Parts Diagram

  • Title

1

Simplicity 1821162

36" MOWER HOUSING

$

$

Not available

2

Simplicity 1845868

36" MOWER GUARD
(Superseded to 5045868E)

$

$

Not available

3

Simplicity 1842565

DISCHARGE CHUTE
(Superseded to 5042565E)

$

$

Not available

4

Simplicity 45914

CHUTE PIVOT ROD
(Superseded to 5045914)

$11.99

$

Usually ships in 2-12 days

0

5

Simplicity 1723938SM

SPRING, Deflector Retaining

$6.49

$

Usually ships in 2-12 days

0

6

Simplicity 45638

SPACER, Spring
(Superseded to 5045638)

$

$

Not available

7

Simplicity 25045

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 5025045)

$3.49

$

In Stock, Qty 7

0

8

Simplicity 20655

LYNCH PIN
(Superseded to 5020655)

$10.99

$

In Stock, Qty 6

0

9

Simplicity 41476

SPACER, Caster
(Superseded to 5041476)

$5.49

$

In Stock, only 4 left!

0

10

Simplicity 1843887

CASTER MOUNT ARM, Complete (Includes Ref 11 &50)
(Superseded to 5043887E)

$

$

Not available

11

Simplicity 21541

BUSHING, Flange
(Superseded to 5021541)

$9.99

$

In Stock, Qty 9

0

12

Simplicity 1841702

CASTER TIRE MOUNT
(Superseded to 5041702E)

$

$

Not available

13

Simplicity 21181

CASTER TIRE, Compete (Includes Ref 14, 15 & 16)
(Superseded to 5021181S)

$100.99

$

In Stock, only 4 left!

0

14

Simplicity 21181-1

TIRE
(Superseded to 5021181X1)

$47.99

$

Usually ships in 2-12 days

0

15

Simplicity 50211812X2

TUBE (SV)

$

$

Currently unavailable

16

Simplicity 21181-3

HUB, w/BEARINGS
(Superseded to 5021181X3)

$47.99

$

Usually ships in 2-12 days

0

17

Simplicity 41657

CASTER AXLE
(Superseded to 5041657)

$13.99

$

In Stock, only 2 left!

0

18

Simplicity 25017-44

CAPSCREW, Hex head, 1/2-13 x 5-1/2
(Superseded to 5025017X44)

$7.99

$

In Stock, only 1 left!

0

19

Simplicity 25056

NUT, Hex, Nylon Lock, 1/2-13
(Superseded to 5025056)

$4.49

$

In Stock, only 2 left!

0

20

Simplicity 25011-6

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 5025011X6)

$3.99

$

In Stock, Qty 6

0

21

Simplicity 25139

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 5025139)

$3.49

$

In Stock, only 2 left!

0

22

Simplicity 21251

BELT
(Superseded to 5021251)

$40.99

$

In Stock, only 1 left!

0

23

Simplicity 25018-28

CAPSCREW, Hex Head, 1/2-20 x 3-1/2
(Superseded to 5025018X28)

$4.49

$

In Stock, Qty 5

0

24

Simplicity 25173

WASHER, Lock, 1/2
(Superseded to 5025331)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 25158

WASHER, 1/2
(Superseded to 5025158)

$3.99

$

In Stock, only 2 left!

0

26

Simplicity 45577

SPACER, Idler, Short
(Superseded to 5045577)

$7.99

$

Usually ships in 2-12 days

0

27

Simplicity 5103800YP

*PULLEY, FLAT IDLER, 6-3/4"

Note: *If not present, order 5025158SM - washer and 5101103SM - shield.

$54.99

$

In Stock, Qty 6

0

28

Simplicity 45578

SPACER, Idler, Long
(Superseded to 5045578)

$9.49

$

Usually ships in 2-12 days

0

29

Simplicity 21811

EYEBOLT
(Superseded to 5021811)

$8.49

$

Usually ships in 2-12 days

0

30

Simplicity 1844610

IDLER ARM
(Superseded to 5044610E)

$

$

Not available

31

Simplicity 25157

WASHER, 7/16
(Superseded to 5025157)

$2.99

$

Usually ships in 2-12 days

0

32

Simplicity 25016-14

CAPSCREW, Hex Head, 7/16-20 x 1-3/4
(Superseded to 5025016X14)

$5.99

$

Usually ships in 2-12 days

0

33

Simplicity 25094

NUT, Hex, Nylon Lock, 7/16-20
(Superseded to 5025094)

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity 25013-8

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 5025013X8)

$3.99

$

In Stock, only 4 left!

0

35

Simplicity 1845491

EYEBOLT ANCHOR
(Superseded to 5045491E)

$

$

Not available

36

Simplicity 25034

NUT, Hex, 5/16-18
(Superseded to 5025034)

$2.99

$

Usually ships in 2-12 days

0

37

Simplicity 25156

WASHER, 3/8
(Superseded to 5025156)

$3.49

$

Usually ships in 2-12 days

0

38

Simplicity 25096

NUT, Hex, Nylon Lock, 3/8-16
(Superseded to 5025096)

$3.49

$

In Stock, Qty 11

0

39

Simplicity 60078

GUARD HOLD DOWN
(Superseded to 5060078)

$22.99

$

Usually ships in 2-12 days

0

40

Simplicity 50407-9

KEY, 1/4 x 2-1/2
(Superseded to 5050407X20)

$5.99

$

In Stock, only 1 left!

0

41

Simplicity 30301

SPINDLE ASSEMBLY, Complete (Includes Ref 43-50)
(Superseded to 5061033)

$269.99

$

Usually ships in 2-12 days

0

42

Simplicity 41480

SPINDLE SHAFT
(Superseded to 5041480)

$112.99

$

Usually ships in 2-12 days

0

43

Simplicity 20864

SNAP RING
(Superseded to 5020864)

$3.99

$

In Stock, only 2 left!

0

44

Simplicity 50866

SNAP RING

$

$

Not available

45

Simplicity 41653

WASHER, Top
(Superseded to 5041653)

$10.99

$

In Stock, only 1 left!

0

46

Simplicity 20828

BEARING
(Superseded to 5020828)

$36.99

$

In Stock, only 2 left!

0

47

Simplicity 30293

HOUSING
(Superseded to 5030293)

$

$

Not available

48

Simplicity 5041672SM

SPINDLE WASHER, Bottom

$16.99

$

In Stock, only 1 left!

0

49

Simplicity 20095

GREASE FITTING
(Superseded to 5020095)

$3.99

$

Usually ships in 2-12 days

0

50

Simplicity 25011-10

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 5025011X10)

$3.49

$

In Stock, only 1 left!

0

51

Simplicity 41477

SPACER, Blade
(Superseded to 5041477)

$5.99

$

In Stock, only 4 left!

0

52

Simplicity 21227

BLADE
(Superseded to 5021227)

$

$

Not available

53

Simplicity 25159

WASHER, 5/8
(Superseded to 5025159)

$3.99

$

In Stock, only 2 left!

0

54

Simplicity 25019-76

CAPSCREW, Hex Head, 5/8-11 x 9-1/2
(Superseded to 5025019X76)

$15.99

$

Usually ships in 2-12 days

0

55

Simplicity 20814

PULLEY, Spindle
(Superseded to 5020814)

$87.99

$

Usually ships in 2-12 days

0

56

Simplicity 20819

HUB
(Superseded to 5020819)

$26.99

$

Usually ships in 2-12 days

0

57

Simplicity 25040

NUT, Hex, 5/8-11
(Superseded to 5025040)

$3.49

$

In Stock, only 1 left!

0
