HW 1436 - Simplicity Pacer 36" Walk-Behind Mower Brake Group (7052bg) Parts Diagram

Pacer 36" Walk-Behind Mower

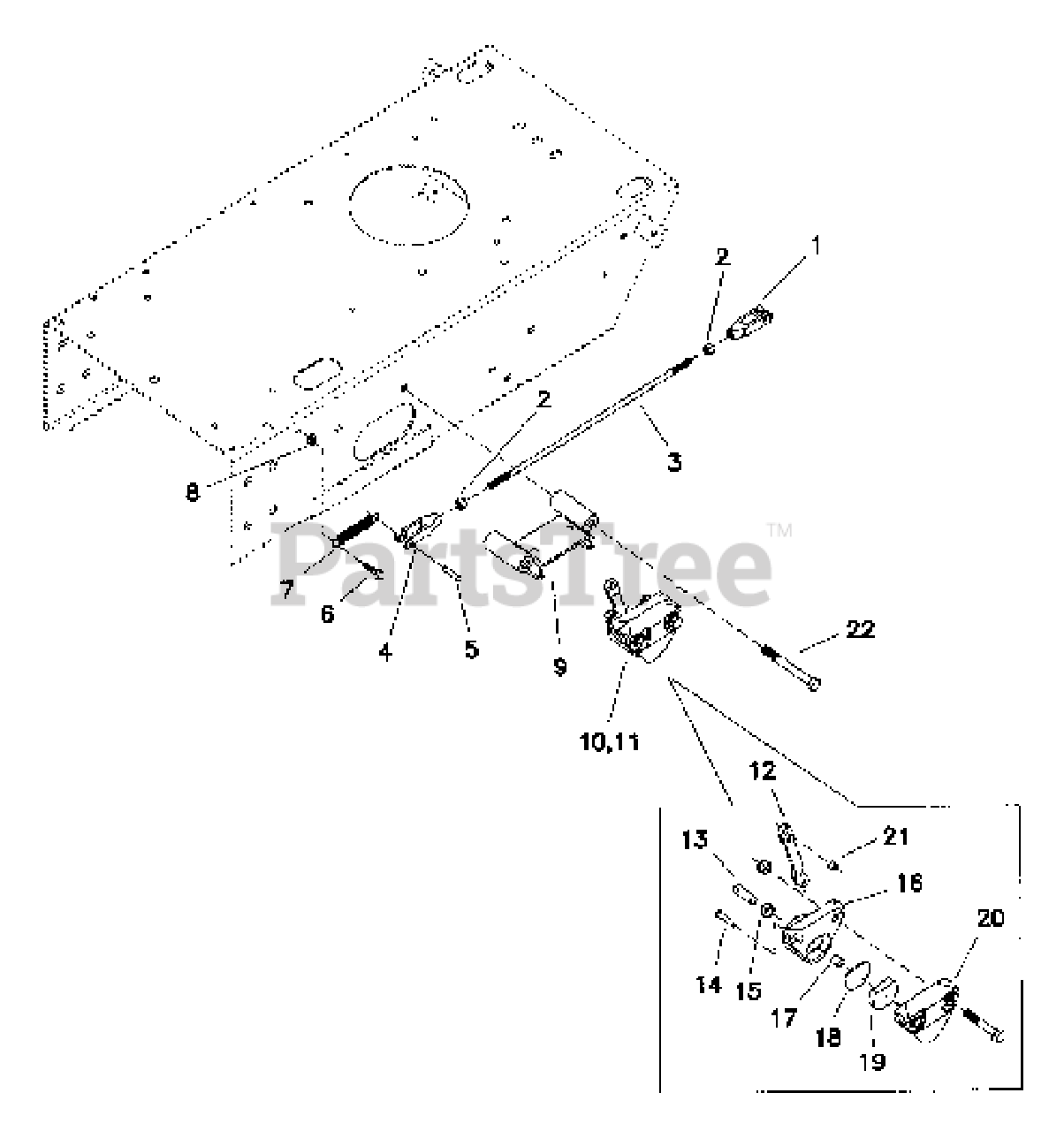

Brake Group (7052bg) Parts Diagram

  • Title

1

Simplicity 20979

CLEVIS, Plastic, 5/16
(Superseded to 5020979)

$

$

Not available

2

Simplicity 25035

NUT, Hex, 5/16-24
(Superseded to 5025035)

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 42555

BRAKE LINKAGE ROD
(Superseded to 5042555)

$10.99

$

Usually ships in 2-12 days

0

4

Simplicity 20980

CLEVIS, Steel, 5/16
(Superseded to 5020980)

$23.99

$

Usually ships in 2-12 days

0

5

Simplicity 25217-7

CLEVIS PIN, 1/4 x 7/8
(Superseded to 5025212X7)

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 25010-8

CAPSCREW, Hex Head, 1/4-20 x 1
(Superseded to 5025010X8)

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 20639

SPRING, Extension
(Superseded to 5020639)

$31.99

$

Usually ships in 2-12 days

0

8

Simplicity 25126

NUT, Hex, Serrated Flange, 1/4-20
(Superseded to 5025126)

$4.49

$

In Stock, only 1 left!

0

9

Simplicity 1842595

BRAKE CALIPER MOUNT
(Superseded to 5042595E)

$

$

Not available

10

Simplicity 20968

CALIPER, LH (Includes Ref 12-20)
(Superseded to 5020968)

$213.99

$

Usually ships in 2-12 days

0

11

Simplicity 20969

CALIPER, RH (Includes Ref 12-20)
(Superseded to 5020969)

$233.99

$

Usually ships in 2-12 days

0

12

Simplicity 21038

LEVER
(Superseded to 5021038)

$79.99

$

Usually ships in 2-12 days

0

13

Simplicity 21473

ADJUSTER BOLT
(Superseded to 5021473)

$14.99

$

Usually ships in 2-12 days

0

14

Simplicity 21471

LEVER PIN
(Superseded to 5021471)

$5.99

$

Usually ships in 2-12 days

0

15

Simplicity 21472

JAM NUT
(Superseded to 5021472)

$5.49

$

Usually ships in 2-12 days

0

16

BRAKE HOUSING (Unavailable for replacement parts)

$

$

Not available

17

Simplicity 21470

ACTUATOR PIN
(Superseded to 5021470)

$9.49

$

Usually ships in 2-12 days

0

18

Simplicity 21335

BACK PLATE
(Superseded to 5021335)

$8.99

$

Usually ships in 2-12 days

0

19

Simplicity 21010

BRAKE PAD
(Superseded to 5021010)

$22.99

$

In Stock, only 2 left!

0

20

Simplicity 21088

ANVIL
(Superseded to 5021088)

$58.99

$

In Stock, only 2 left!

0

21

Simplicity 21878

SPACER
(Superseded to 5021878)

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 25013-28

CAPSCREW, Hex Head, 3/8-16 x 3-1/2
(Superseded to 5025013X28)

$4.99

$

In Stock, only 2 left!

0
