HW 1436 - Simplicity Pacer 36" Walk-Behind Mower Engine Deck, Fuel Tank Idler Group (7052efig) Parts Diagram

Pacer 36" Walk-Behind Mower

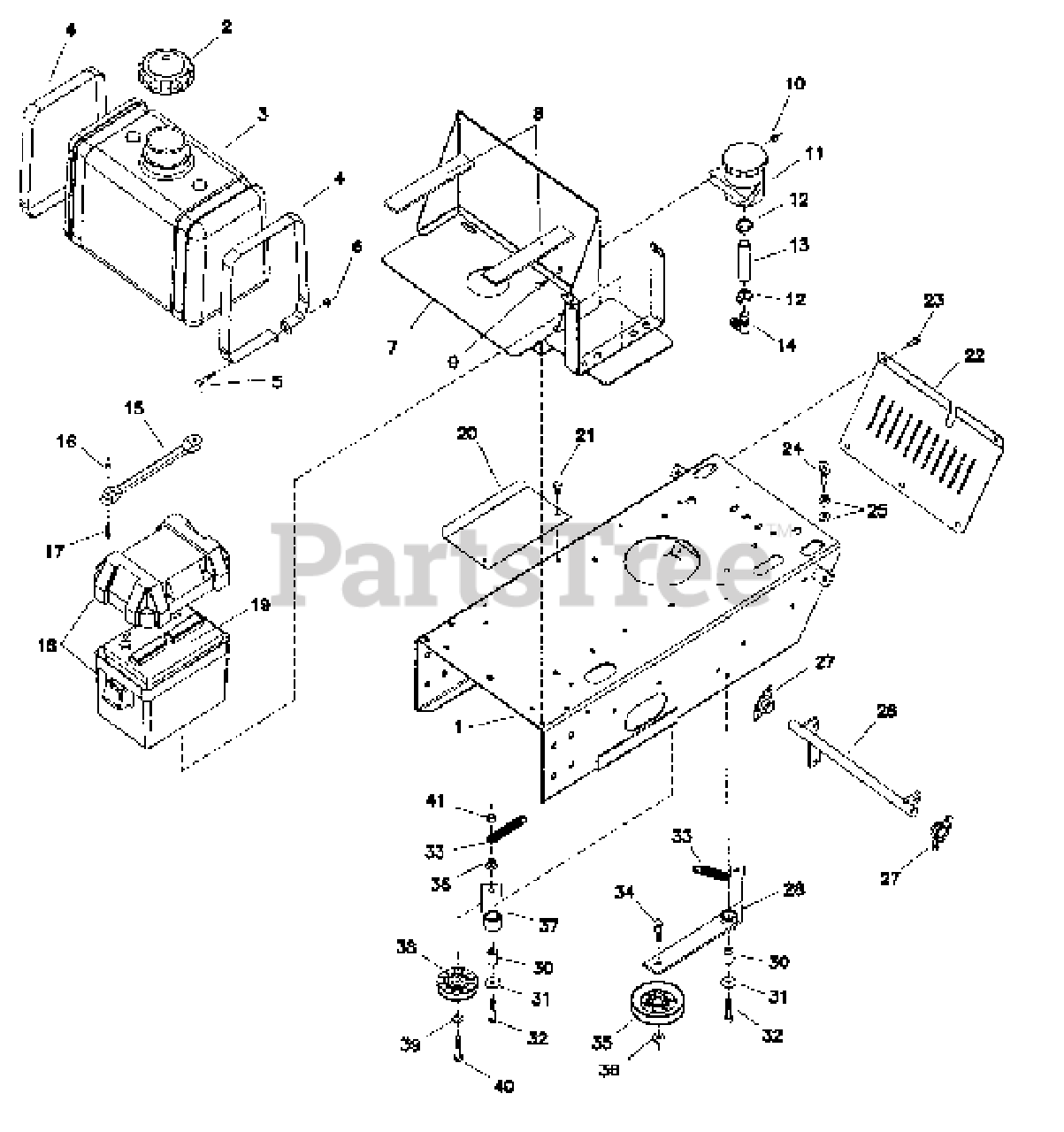

Engine Deck, Fuel Tank Idler Group (7052efig) Parts Diagram

  • Title

1

Simplicity 1831174

PACER ENGINE DECK

$

$

Not available

2

Simplicity 22158

CAP, Fuel Tank
(Superseded to 5022158)

$30.99

$

In Stock, Qty 5

0

3

Simplicity 21869

FUEL TANK, 5 Gallon
(Superseded to 5021869)

$

$

Not available

4

Simplicity 1844694

STRAP, Fuel Tank
(Superseded to 5044694E)

$

$

Not available

5

Simplicity 25010-12

CAPSCREW, Hex Head, 1/4-20 x 1-1/2
(Superseded to 5025010X12)

$2.99

$

Usually ships in 2-12 days

0

6

Simplicity 25126

NUT, Hex, Serrated Flange, 1/4-20
(Superseded to 5025126)

$4.49

$

In Stock, only 1 left!

0

7

Simplicity 1845865

FUELT TANK MOUNT
(Superseded to 5045865E)

$

$

Not available

8

Simplicity 21877

RUBBER PAD
(Superseded to 5021877)

$7.49

$

Usually ships in 2-12 days

0

9

Simplicity 25144-6

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 5025144X6)

$

$

Not available

10

Simplicity 25095

NUT, Hex, Nylon Lock, 1/4-20
(Superseded to 5025095)

$

$

Not available

11

Simplicity 21384

RESERVOIR, Hydraulic Oil
(Superseded to 5021384)

$51.99

$

Usually ships in 2-12 days

0

12

Simplicity 21164

HOSE CLAMP
(Superseded to 5021164)

$3.99

$

In Stock, only 2 left!

0

13

Simplicity 5050933X4

HOSE, 4"

$

$

Not available

14

Simplicity 21395

FITTING, 90 Deg.
(Superseded to 5021395)

$

$

Not available

15

Simplicity 21670

RUBBER STRAP
(Superseded to 5021670)

$13.99

$

Usually ships in 2-12 days

0

16

Simplicity 25271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271)

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 25270

SCREW, Phillips, #10-24 x 1
(Superseded to 5025270)

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 21666

BATTERY BOX
(Superseded to 5100688)

$65.99

$

Usually ships in 2-12 days

0

19

Simplicity 22346

BATTERY
(Superseded to 5022346)

$

$

Not available

20

Simplicity 1842538

HEAT SHIELD
(Superseded to 5042538E)

$

$

Not available

21

Simplicity 25011-6

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 5025011X6)

$3.99

$

In Stock, Qty 6

0

22

Simplicity 1842641

SCREEN
(Superseded to 5042641E)

$

$

Not available

23

Simplicity 25279-6

CAPSCREW, Hex Head, Taptite, 1/4-20 x 3/4
(Superseded to 5025279X6)

$

$

Not available

24

Simplicity 25151-17

EYEBOLT

$

$

Not available

25

Simplicity 25139

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 5025139)

$3.49

$

Usually ships in 2-12 days

0

26

Simplicity 1842533

TRANSMISSION CONTROL SHAFT
(Superseded to 5042533E)

$

$

Not available

27

Simplicity 21098

BEARING, Flange
(Superseded to 5021098)

$13.99

$

In Stock, Qty 7

0

28

Simplicity 1842917

IDLER ARM, Complete (Includes Ref 29)
(Superseded to 5042917E)

$

$

Not available

29

Simplicity 20876B

BUSHING
(Superseded to 5020876B)

$11.99

$

Usually ships in 2-12 days

0

30

Simplicity 42134

SPACER, Pivot
(Superseded to 5042134)

$6.49

$

Usually ships in 2-12 days

0

31

Simplicity 25164

WASHER, Fender, 5/16
(Superseded to 5025164)

$3.99

$

Usually ships in 2-12 days

0

32

Simplicity 25011-14

CAPSCREW, Hex Head, 5/16-18 x 1-3/4
(Superseded to 5025011X14)

$3.99

$

Usually ships in 2-12 days

0

33

Simplicity 20807

SPRING, Extension
(Superseded to 5020807)

$8.49

$

Usually ships in 2-12 days

0

34

Simplicity 25013-12

CAPSREW, Hex Head, 3/8-16 x 1-1/2
(Superseded to 5025013X12)

$3.99

$

Usually ships in 2-12 days

0

35

Simplicity 43628

PULLEY, Idler
(Superseded to 5043628)

$49.99

$

Usually ships in 2-12 days

0

36

Simplicity 25128

NUT, Hex Serrated Flange, 3/8-16
(Superseded to 5025128)

$3.49

$

Usually ships in 2-12 days

0

37

Simplicity 1842531

IDLER ARM, Complete (Includes Ref 29)
(Superseded to 5042531E)

$

$

Not available

38

Simplicity 43627

PULLEY, Idler
(Superseded to 5043627)

$45.99

$

In Stock, only 2 left!

0

39

Simplicity 25156

WASHER, 3/8
(Superseded to 5025156)

$3.49

$

Usually ships in 2-12 days

0

40

Simplicity 25013-16

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 5025013X16)

$4.49

$

In Stock, Qty 6

0

41

Simplicity 25100

NUT, Hex, Nylon Lock, 3/8-16
(Superseded to 5025100)

$3.49

$

Usually ships in 2-12 days

0
