HW 1436 - Simplicity Pacer 36" Walk-Behind Mower Engine, PTO & Drive Group (7052epdg) Parts Diagram

Pacer 36" Walk-Behind Mower

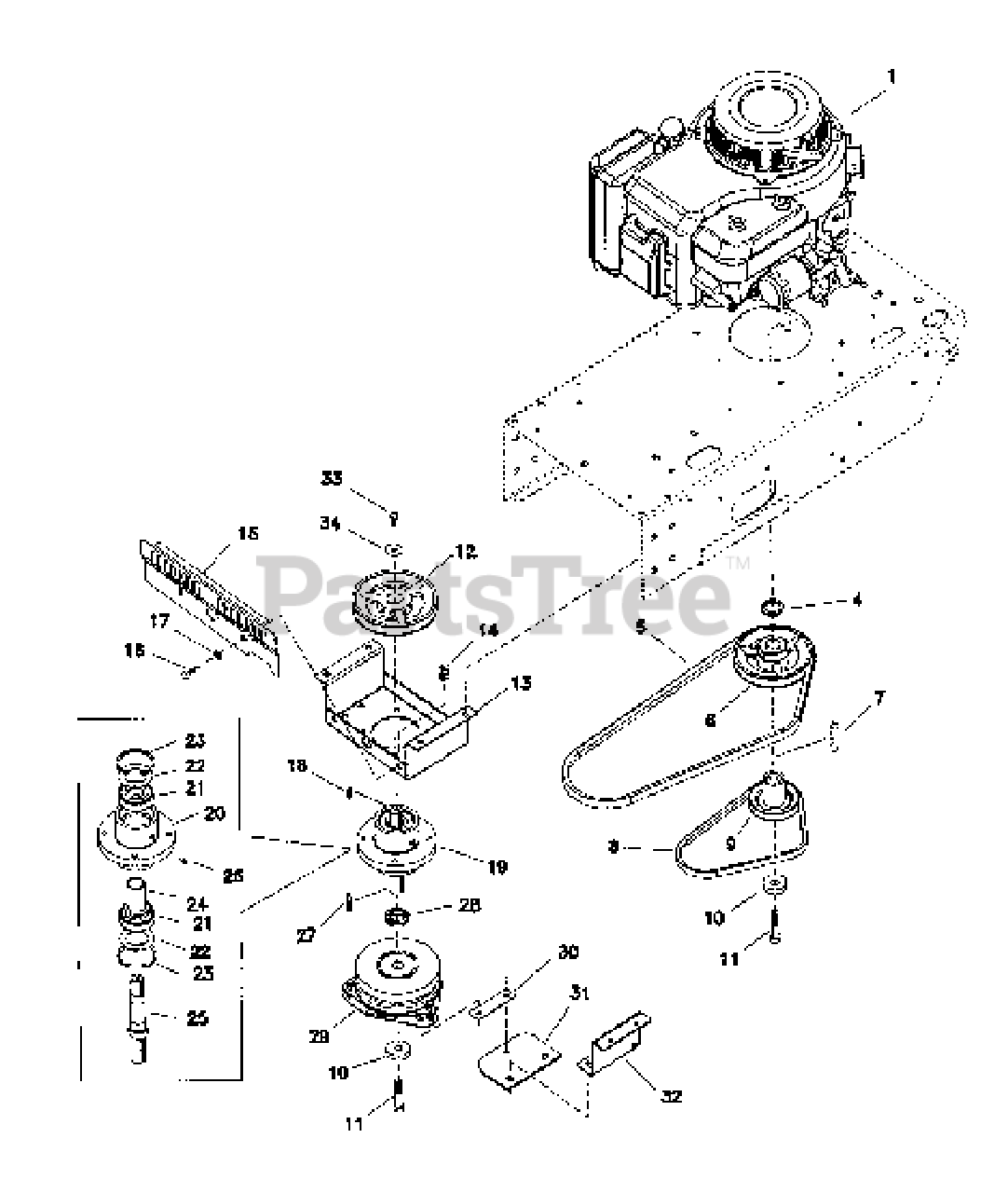

Engine, PTO & Drive Group (7052epdg) Parts Diagram

  • Title

1

Simplicity 22335

* ENGINE, 14HP Kohler Electric Start

$

$

Not available

2

Simplicity 22336

MUFFLER (Not Shown)

$

$

Not available

3

Simplicity 22337

MUFFLER GUARD (Not Shown)

$

$

Not available

4

Simplicity 42620

SPACER, Crankshaft
(Superseded to 5042620)

$

$

Not available

5

Simplicity 21229

BELT (Jackshaft)
(Superseded to 5021229)

$39.99

$

Usually ships in 2-12 days

0

6

Simplicity 20816

PULLEY
(Superseded to 5020816)

$78.99

$

Usually ships in 2-12 days

0

7

Simplicity 50407-9

KEY, 1/4 x 2-1/2
(Superseded to 5050407X20)

$5.99

$

In Stock, only 1 left!

0

8

Simplicity 21230

BELT (Transmission)
(Superseded to 5021230)

$24.99

$

In Stock, only 2 left!

0

9

Simplicity 42597

PULLEY, Transmission Drive
(Superseded to 7042597YP)

$

$

Not available

10

Simplicity 42132

RETAINER, Clutch
(Superseded to 5042132)

$

$

Not available

11

Simplicity 45938

CRANKSHAFT BOLT
(Superseded to 5045938)

$

$

Not available

12

Simplicity 45643

PULLEY, Jackshaft Spindle
(Superseded to 5045643)

$

$

Not available

13

Simplicity 42591

JACKSHAFT MOUNT
(Superseded to 7042591YP)

$

$

Not available

14

Simplicity 22308

BODY CLIP, 5/16-18
(Superseded to 5022308)

$5.99

$

In Stock, Qty 10

0

15

Simplicity 1845367

JACKSHAFT GUARD
(Superseded to 5045367E)

$

$

Not available

16

Simplicity 25011-6

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 5025011X6)

$3.99

$

In Stock, Qty 6

0

17

Simplicity 25155

WASHER, 5/16
(Superseded to 5025155)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 50403-1

KEY, 3/16 x 1
(Superseded to 5050403X1)

$2.49

$

Usually ships in 2-12 days

0

19

Simplicity 45479

JACKSHAFT SPINDLE ASSEMBLY, Complete (Includes Ref 20-26)

$

$

Not available

20

Simplicity 30468

HOUSING
(Superseded to 5030468)

$94.99

$

Usually ships in 2-12 days

0

21

Simplicity 20828

BEARING
(Superseded to 5020828)

$36.99

$

In Stock, only 2 left!

0

22

Simplicity 44855

WASHER

$

$

Not available

23

Simplicity 20866

SNAP RING
(Superseded to 5020866)

$5.99

$

In Stock, only 2 left!

0

24

Simplicity 45645

BEARING SPACER

$

$

Not available

25

Simplicity 45478

JACKSHAFT
(Superseded to 5045478)

$

$

Not available

26

Simplicity 20095

GREASE FITTING
(Superseded to 5020095)

$3.99

$

Usually ships in 2-12 days

0

27

Simplicity 50407-1

KEY, 1/4 x 1
(Superseded to 5050407X8)

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 45576

CLUTCH SPACER

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 21823

CLUTCH, Electric PTO
(Superseded to 5021823)

$524.99

$

Usually ships in 2-12 days

0

30

Simplicity 44674

STRAP
(Superseded to 5044674B)

$

$

Not available

31

Simplicity 43636

PAD, Clutch Anchor
(Superseded to 5043636)

$11.99

$

In Stock, only 1 left!

0

32

Simplicity 1845581

CLUTCH ANCHOR

$

$

Not available

33

Simplicity 25012-6

CAPSCREW, Hex Head, 5/16-24 x 3/4
(Superseded to 5025012X6)

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity XXXXX

WASHER

$

$

Not available
