HW 1436 - Simplicity Pacer 36" Walk-Behind Mower Handle Bar Group (7052hbg) Parts Diagram

Pacer 36" Walk-Behind Mower

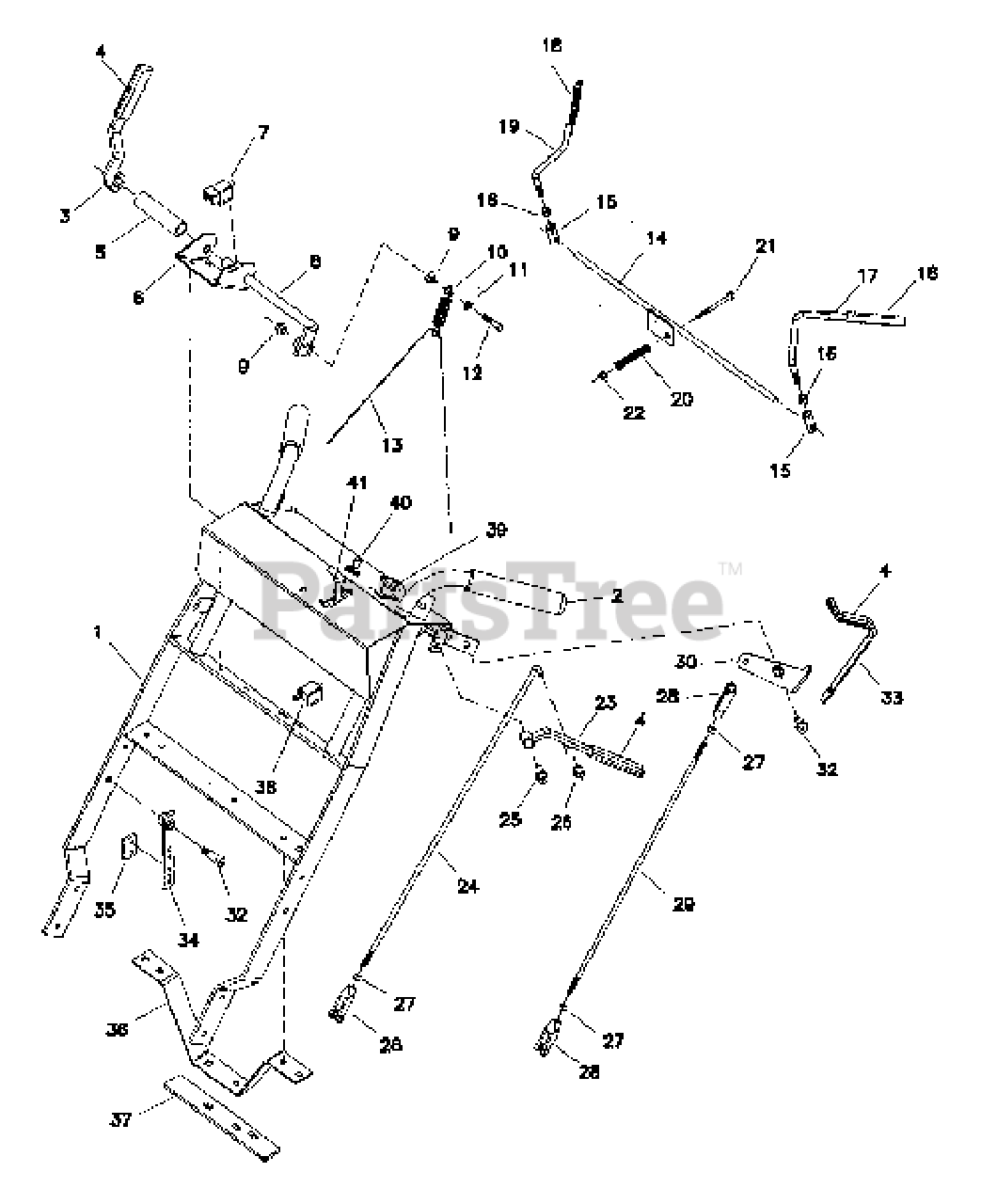

Handle Bar Group (7052hbg) Parts Diagram

  • Title

1

Simplicity 1845480

HANDLE BAR ASSEMBLY
(Superseded to 5045480E)

$

$

Not available

2

Simplicity 20837

GRIP, Foam
(Superseded to 5020837)

$12.99

$

Usually ships in 2-12 days

0

3

Simplicity 1844625

BRAKE HANDLE, Complete (Includes Ref 4)
(Superseded to 5044625E)

$

$

Not available

4

Simplicity 25510

GRIP, Foam
(Superseded to 5025510)

$6.49

$

In Stock, only 2 left!

0

5

Simplicity 45477

BRAKE SHAFT COVER

$

$

Not available

6

Simplicity 1845575

BRAKE HANDLE MOUNT

$

$

Not available

7

Simplicity 1717050SM

SWITCH, Brake

$17.99

$

In Stock, Qty 11

0

8

Simplicity 1845584

BRAKE HANDLE SHAFT

$

$

Not available

9

Simplicity 25139

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 5025139)

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 21242

SPRING, Extension
(Superseded to 5021242)

$22.99

$

Usually ships in 2-12 days

0

11

Simplicity 25155

WASHER, 5/16
(Superseded to 5025155)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 25011-12

CAPSCREW, Hex Head, 5/16-18 x 1-1/2
(Superseded to 5025011X12)

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 50832-3

BRAKE CABLE
(Superseded to 5050832X3)

$

$

Not available

14

Simplicity 1843424

SWITCH ROD
(Superseded to 5043424E)

$

$

Not available

15

Simplicity 43417

HEX ADJUSTER
(Superseded to 5043417)

$24.99

$

Usually ships in 2-12 days

0

16

Simplicity 25034

NUT, Hex, 5/16-18
(Superseded to 5025034)

$2.99

$

Usually ships in 2-12 days

0

17

Simplicity 1845485

HANDLE, Operator Presence, RH, Complete (Includes Ref 18)
(Superseded to 5045485E)

$

$

Not available

18

Simplicity 21490

GRIP, Vinyl
(Superseded to 5021490)

$4.49

$

In Stock, Qty 12

0

19

Simplicity 1845484

HANDLE, Operator Presence, LH, Complete (Includes Ref 18)
(Superseded to 5045484E)

$

$

Not available

20

Simplicity 20637

SPRING, Compression
(Superseded to 5020637)

$5.99

$

Usually ships in 2-12 days

0

21

Simplicity 25010-24

CAPSCREW, Hex Head, 1/4-20 x 3
(Superseded to 5025010X24)

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 25095

NUT, Hex, Nylon Lock, 1/4-20
(Superseded to 5025095)

$

$

Not available

23

Simplicity 1841982

BRAKE HANDLE, Complete (Includes Ref 4)

$

$

Not available

24

Simplicity 42547

BRAKE HANDLE ROD
(Superseded to 5042547)

$

$

Not available

25

Simplicity 25220

SHOULDER BOLT, 1/2 x 1-1/2
(Superseded to 5025220)

$11.99

$

Usually ships in 2-12 days

0

26

Simplicity 20047

COLLAR, 5/16 Set
(Superseded to 5020047)

$7.49

$

Usually ships in 2-12 days

0

27

Simplicity 25033

NUT, Hex, 5/16-24
(Superseded to 5025033)

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 20979

CLEVIS, Plastic, 5/16
(Superseded to 5020979)

$

$

Not available

29

Simplicity 42554

THUMB CONTROL ROD
(Superseded to 5042554)

$10.99

$

Usually ships in 2-12 days

0

30

Simplicity 1845483

CONTROL PIVOT, RH

$

$

Not available

31

Simplicity 1845482

CONTROL PIVOT, LH (Not Shown)

$

$

Not available

32

Simplicity 25223

SHOULDER BOLT, 1/2 x 1
(Superseded to 5025223)

$7.99

$

Usually ships in 2-12 days

0

33

Simplicity 1842614

THUMB CONTROL LEVER, Complete (Includes Ref 4)
(Superseded to 5042614E)

$

$

Not available

34

Simplicity 1842648

BRAKE PIVOT

$

$

Not available

35

Simplicity 42624

CABLE CLAMP
(Superseded to 5042624)

$

$

Not available

36

Simplicity 1842623

SUPPORT, Handle Bar

$

$

Not available

37

Simplicity 1842682

SUPPORT, Engine Deck

$

$

Not available

38

Simplicity 21769

SWITCH, Operator Presence
(Superseded to 5021769)

$14.99

$

In Stock, only 1 left!

0

39

Simplicity 22180

SWITCH, PTO
(Superseded to 5022180)

$

$

Not available

40

Simplicity 20927

SWITCH, Ignition
(Superseded to 5020927)

$33.99

$

Usually ships in 2-12 days

0

41

Simplicity 20811

CABLE, Throttle
(Superseded to 5020811)

$49.99

$

Usually ships in 2-12 days

0
