HW 1436 - Simplicity Pacer 36" Walk-Behind Mower Transmission & Drive Tire Group (7052tdtg) Parts Diagram

Pacer 36" Walk-Behind Mower

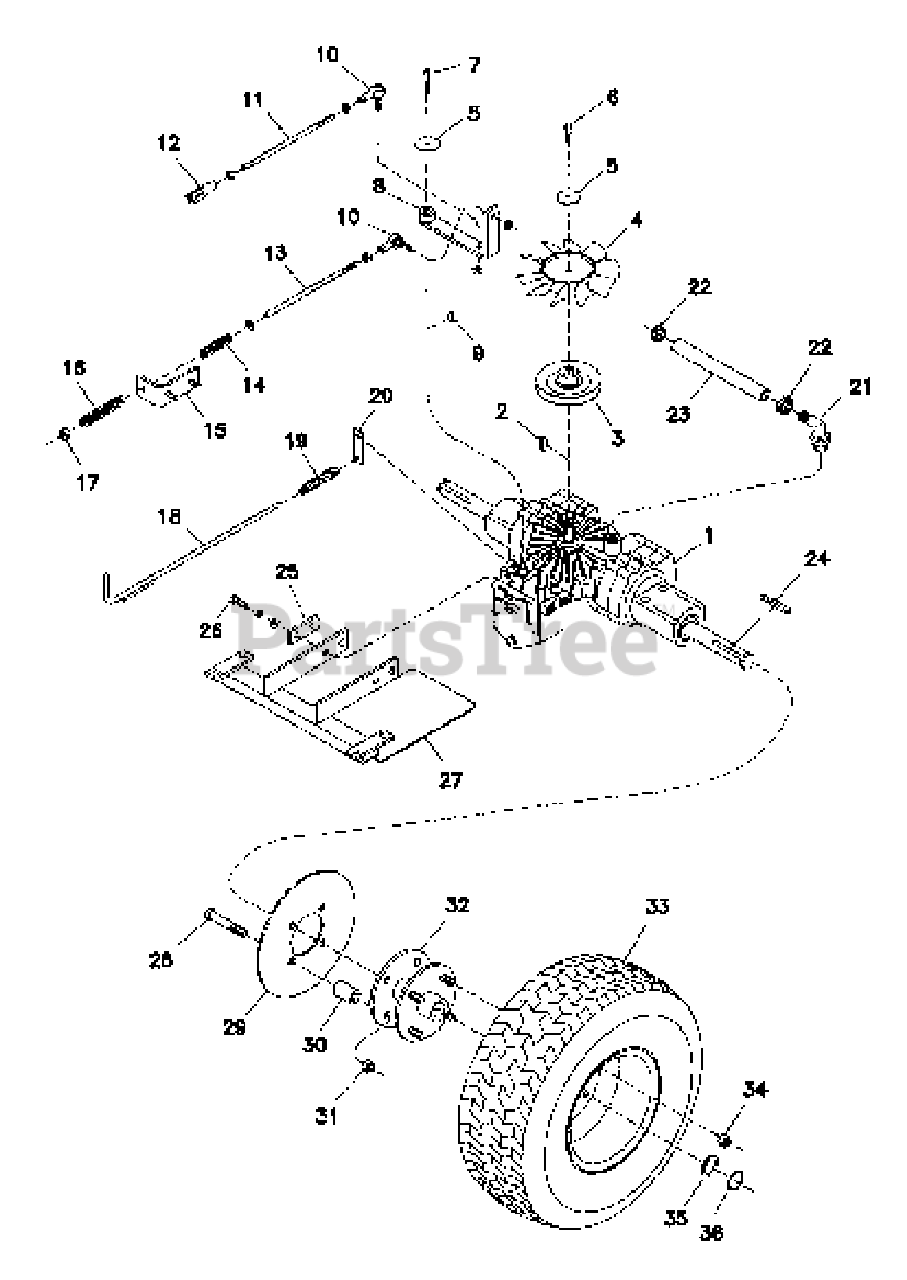

Transmission & Drive Tire Group (7052tdtg) Parts Diagram

  • Title

1

Simplicity 21469

TRANSMISSION, Hydrostatic
(Superseded to 5021469)

$3020.99

$

Usually ships in 2-12 days

0

2

Simplicity 21084

KEY, Woodruff
(Superseded to 5021084)

$3.99

$

In Stock, only 1 left!

0

3

Simplicity 21476

PULLEY, Transmission Input
(Superseded to 5021476)

$70.99

$

In Stock, only 1 left!

0

4

Simplicity 21081

FAN
(Superseded to 5021081)

$23.99

$

In Stock, only 1 left!

0

5

Simplicity 44577

RETAINER, Fan
(Superseded to 5044577)

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 25268

CAPSCREW, Allen Head w/Loctite Patch, 1/4-20 x 1-3/4
(Superseded to 5025268)

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 25269

CAPSCREW, Allen Head w/Loctite Patch, 1/4-20 x 1-1/2
(Superseded to 5025269)

$2.99

$

Usually ships in 2-12 days

0

8

Simplicity 1842537

CONTROL ARM
(Superseded to 5042537E)

$

$

Not available

9

Simplicity 20149

KEY, Woodruff
(Superseded to 5020149)

$2.49

$

Usually ships in 2-12 days

0

10

Simplicity 21170

BALL JOINT, 5/16
(Superseded to 5021170)

$

$

Not available

11

Simplicity 42924

HYDRO LINKAGE ROD
(Superseded to 5042924)

$

$

Not available

12

Simplicity 20979

CLEVIS, Plastic, 5/16
(Superseded to 5020979)

$

$

Not available

13

Simplicity 42551

NEUTRAL LINKAGE ROD
(Superseded to 5042551)

$

$

Not available

14

Simplicity 21004

SPRING, Compression
(Superseded to 5021004)

$5.99

$

Usually ships in 2-12 days

0

15

Simplicity 1842550

NEUTRAL BRACKET

$

$

Not available

16

Simplicity 20637

SPRING, Compression
(Superseded to 5020637)

$5.99

$

Usually ships in 2-12 days

0

17

Simplicity 20047

COLLAR, 5/16 Set
(Superseded to 5020047)

$7.49

$

Usually ships in 2-12 days

0

18

Simplicity 1842638

TRANSMISSION RELEASE ROD
(Superseded to 5042638E)

$

$

Not available

19

Simplicity 20639

SPRING, Extension
(Superseded to 5020639)

$31.99

$

Usually ships in 2-12 days

0

20

Simplicity 42636

RELEASE VALVE EXTENSION
(Superseded to 5042636)

$15.99

$

Usually ships in 2-12 days

0

21

Simplicity 21469-1

FITTING, 90 deg.
(Superseded to 5021469X1)

$

$

Not available

22

Simplicity 21164

HOSE CLAMP
(Superseded to 5021164)

$3.99

$

In Stock, only 2 left!

0

23

Simplicity 5050933X8P14

HOSE, 8-14

$

$

Not available

24

Simplicity 50407-9

KEY, 1/4 x 2-1/2
(Superseded to 5050407X20)

$5.99

$

In Stock, only 1 left!

0

25

Simplicity 1842646

SUPPORT, Mount

$

$

Not available

26

Simplicity 25011-8

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8)

$3.49

$

Usually ships in 2-12 days

0

27

Simplicity 1844734

TRANSMISSION MOUNT
(Superseded to 5044734E)

$

$

Not available

28

Simplicity 25018-24

CAPSCREW, Hex Head, 1/2-20 x 3
(Superseded to 5025018X24)

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 42526

BRACKE DISC
(Superseded to 5042526)

$47.99

$

Usually ships in 2-12 days

0

30

Simplicity 42618

HUB SPACER
(Superseded to 5042618)

$

$

Not available

31

Simplicity 25098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098)

$5.99

$

Usually ships in 2-12 days

0

32

Simplicity 42590

DRIVE HUB
(Superseded to 5042590)

$159.99

$

Usually ships in 2-12 days

0

33

Simplicity 21207

DRIVE TIRE
(Superseded to 5021207)

$219.99

$

Usually ships in 2-12 days

0

34

Simplicity 5020601SM

LUG NUT

$3.49

$

In Stock, Qty 9

0

35

Simplicity 20928

SHIM
(Superseded to 5020928)

$6.99

$

Usually ships in 2-12 days

0

36

Simplicity 21210

SNAP RING
(Superseded to 5021210)

$2.49

$

Usually ships in 2-12 days

0
