HW3250 (0059730) - Honeywell Portable Generator (SN: 6621714B - 6622065B) (2011) EV HW3250 (0J6329) Parts Diagram

Portable Generator

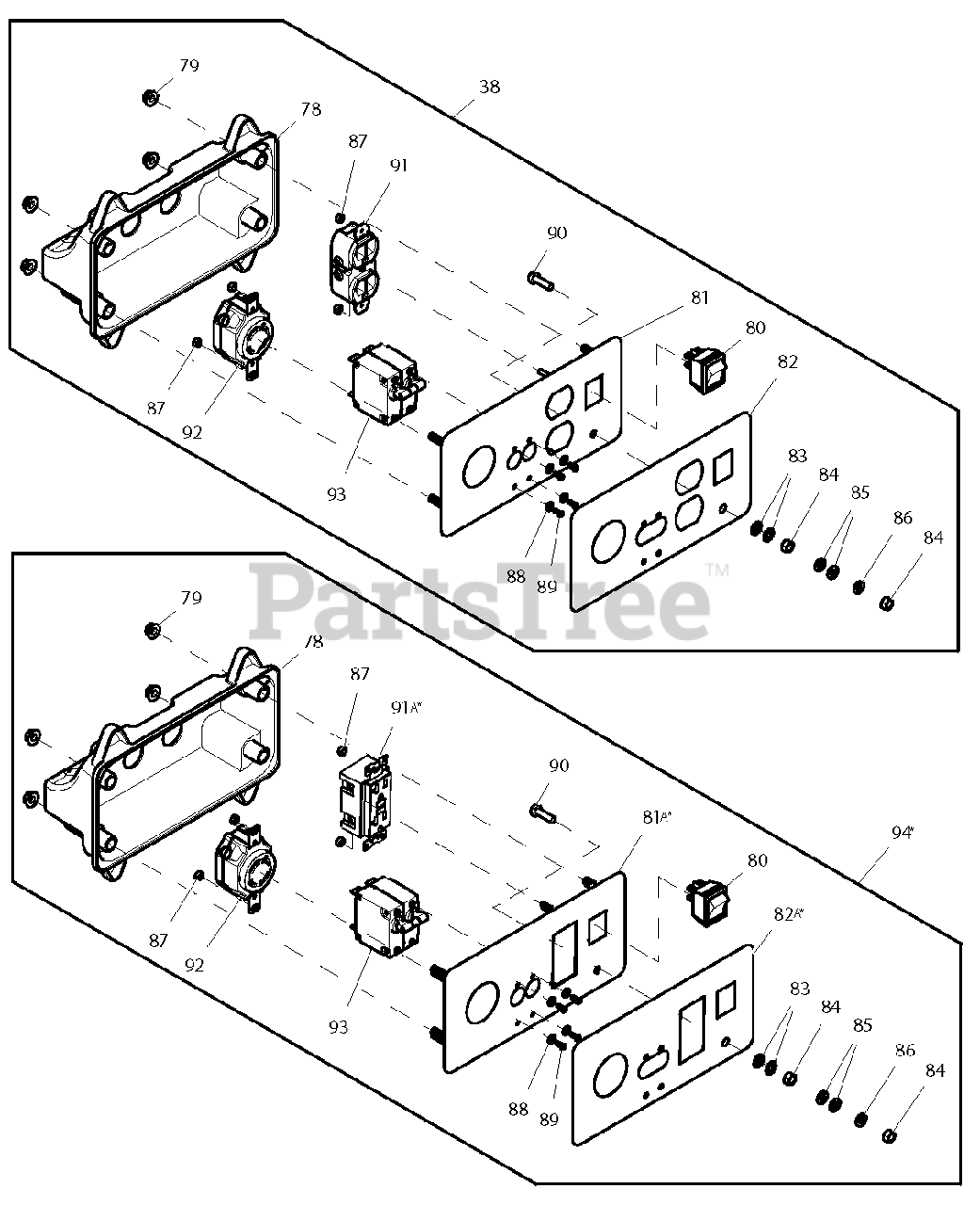

EV HW3250 (0J6329) Parts Diagram

  • Title

38

Generac 0J6616

ASSY CONTROL PNL H3250 49ST

$

$

Currently unavailable

78

Generac 049813

CNTRL PNL BACK BOX HNYWL 3250
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

79

Generac 0J0251A

NUT HEX M6-1.0 G8 CLEAR ZINC

$18.99

$

Usually ships in 2-12 days

0

80

Generac 0J7030

SW RUN-STOP HONEYWELL

$

$

Currently unavailable

81

Generac 0J7030A

WELDMENT FACEPLATE H3250 49ST

$

$

Currently unavailable

81A

0J6333

WELDMENT FACEPLATE H3250 CARB

$

$

Not available

82

0J6333A

OVERLAY CNTRL PNL HW 3250 49ST

$

$

Not available

82A

Generac 0J7510

OVERLAY CNTRL PNL HW 3250 CARB

$

$

Currently unavailable

83

Generac 0J7512

WASHER LOCK EXT 1/4 BLACK ZINC

$2.49

$

Usually ships in 2-12 days

0

84

Generac 0J7514

NUT HEX M6-1.0 G8 BLACK ZINC

$

$

Currently unavailable

85

Generac 0J7513

WASHER FLAT M6 BLACK ZINC

$0.99

$

Usually ships in 2-12 days

0

86

Generac 051715

WASHER LOCK M6 BLACK ZINC
(Superseded to G051715)

$9.49

$

Usually ships in 2-12 days

0

87

Generac 0J7516

NUT HEX M4-0.7 G8 YEL CHR

$

$

Currently unavailable

88

Generac 0J7515

WASHER FLAT M3 BLACK ZINC

$

$

Currently unavailable

89

Generac 0J7511

SCREW PPHM M3-0.5 X 6 BLACK ZN

$

$

Currently unavailable

90

Generac 0H2928

SCREW HHC M6-1.0X20 C8.8 BLKZN

$15.99

$

In Stock, only 1 left!

0

91

Generac 0D4966

OUTLET 20A 120V DPLX SPECGRADE

$

$

Not available

91A

Generac 0H3342

OUTLET 20A 120V GFCI GF20BK

Note: ORDER P/N 0J6927

$

$

Not available

92

Generac 0H3417

OUTLET 20A 120/250V SPCGR

$148.99

$

Usually ships in 2-12 days

0

93

Generac 0J7031

CB 0014A 2P 250V

$466.99

$

Usually ships in 2-12 days

0

94

Generac 0J6615

ASSY CONTROL PNL H3250 CARB

$349.99

$

Usually ships in 2-12 days

0
