HW3250 (0059730) - Honeywell Portable Generator (SN: 6836327B - 9330698B) (2014) EV HW3250 (0J6329) Parts Diagram

Portable Generator

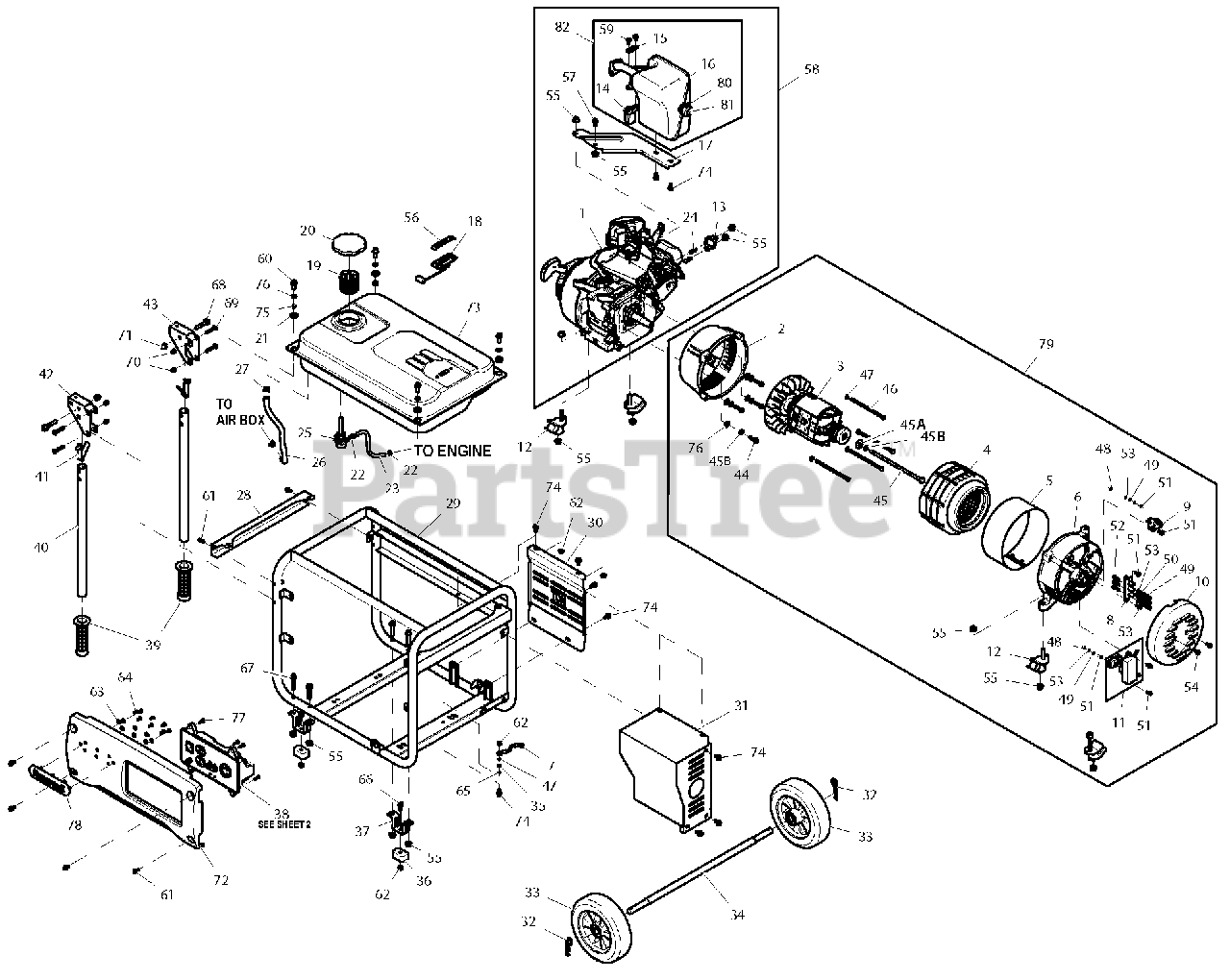

EV HW3250 (0J6329) Parts Diagram

  • Title

1

Generac 0H3375A

ENGINE 208 PS UP

Note: ORDER P/N 0J5628A

$

$

Currently unavailable

2

Generac 0H3976

ADAPTOR CASTING,ENG/ALT 3250W

$117.99

$

Usually ships in 2-12 days

0

3

Generac 0J6971

ROTOR ASSY

Note: ORDER COMPLETE ALTERNATOR P/N 0H3578

$

$

Currently unavailable

4

Generac 0J6972

STATOR ASSY

Note: ORDER COMPLETE ALTERNATOR P/N 0H3578.

$

$

Currently unavailable

5

Generac 0J6977

WRAPPER 620X70

$6.49

$

Usually ships in 2-12 days

0

6

Generac 0J6975

REAR BEARING CARRIER 190

$95.99

$

Usually ships in 2-12 days

0

7

Generac 0G8753C

WIRE ASSY GND ALT TO BASE

$2.49

$

Usually ships in 2-12 days

0

8

Generac 0J6979

REAR WIRING FRAME ORANGE

$2.49

$

Usually ships in 2-12 days

0

9

Generac 0H3380

ASSEMBLY BRUSH 3.25KW PORTABLE

$5.99

$

Usually ships in 2-12 days

0

10

Generac 0H3382

COVER,ALTERNATOR 3.25KW

$7.99

$

In Stock, only 1 left!

0

11

Generac 0H3381

AVR 3.25 KW

$65.99

$

Usually ships in 2-12 days

0

12

Generac 0H3415

VIB MOUNT 35 X 15 X M8-1.25

$6.49

$

In Stock, Qty 12

0

13

Generac 0H3378

GASKET MUFFLER 163/208CC

$1.49

$

Usually ships in 2-12 days

0

14

Generac 0J5204

AIR VALVE 2010

$26.99

$

Usually ships in 2-12 days

0

15

Generac 0J5205

GASKET AIR VALVE 2010 CARB

$1.49

$

Usually ships in 2-12 days

0

16

Generac 0J6970

WELDMENT MUFFLER CAT H3250

$89.99

$

Usually ships in 2-12 days

0

17

Generac 0H3379

BRACKET,MUFFLER MNT 163/208CC

$14.99

$

Usually ships in 2-12 days

0

18

Generac 0H1345A

FUEL GAGE, 90MM LONG ARM

Note: ORDER P/N 0G84300102

$

$

Currently unavailable

19

Generac 0H1326

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

20

Generac 0H1325B

FUEL CAP,NOT VENTED, BLACK CAP

$22.99

$

Usually ships in 2-12 days

0

21

Generac 0J6679

RUBBER MOUNT 8 ID X 5 HGT

$1.49

$

Usually ships in 2-12 days

0

22

Generac 048031B

CLAMP HOSE BAND SPRING .38

$3.99

$

In Stock, only 4 left!

0

23

Generac 0J6626

FUEL HOSE,4.5 ID,8.5 OD,160 LG

$30.99

$

In Stock, only 1 left!

0

24

Generac 045761A

STUD M8-1.25/10MM X 30 G5 ZINC

$7.99

$

Usually ships in 2-12 days

0

25

Generac 0J6680

FUEL VALVE SWIVEL NUT M16

Note: ORDER P/N 0J0974.

$

$

Currently unavailable

26

Generac 0J6560

HOSE, 7.5 ID, 13.5 OD, 300 LG

$

$

Not available

27

Generac 048031N

CLAMP HOSE BAND .53

$1.99

$

In Stock, only 1 left!

0

28

0J6558

WLDMNT CRADLE END PANEL H3250

$

$

Not available

29

0J6509

CRADLE WELDMENT H3250

$

$

Not available

30

0J6619

SIDE MUFFLER SHIELD H3250

$

$

Not available

31

0J7082

INSIDE MUFFLER SHIELD H3250

$

$

Not available

32

Generac 0H3443

COTTER HAIRPIN 2.56 X .80

$1.99

$

In Stock, Qty 5

0

33

Generac 0H3392

WHEEL, 8" NEVER-FLAT 3.25KW UP

$54.99

$

Usually ships in 2-12 days

0

34

Generac 0H3391

AXLE, SOLID 3.25KW PORTABLE
(Superseded to 0H33910ST03)

Note: NO LONGER AVAILABLE. IF YOU NEED BLACK, ORDER 0H33910ST03 IF YOU NEED GRAY, ORDER 0H33910ST14 IF YOU NEED ORANGE, ORDER 0H33910ST15

$24.99

$

Usually ships in 2-12 days

0

35

Generac 049811

WASHER FLAT M6
(Superseded to G049811)

$0.99

$

In Stock, only 4 left!

0

36

Generac 0J6633

RUBBER FOOT RECTANGLE

$2.99

$

Usually ships in 2-12 days

0

37

0J6632

BENT FOOT 3250W HONEYWELL

$

$

Not available

38

Generac 0J6616

ASSY CONTROL PANEL

$

$

Currently unavailable

39

Generac 0J6631

GRIP HANDLE 3250W HONEYWELL

$2.99

$

Usually ships in 2-12 days

0

40

0J6630

HANDLE H3250 PORTABLE

$

$

Not available

41

Generac 0G5442

SNAP BUTTON - .437" DIA. HEAD

$1.49

$

In Stock, Qty 14

0

42

0J6629

BRACKET HANDLE H3250 RH

$

$

Not available

43

0J6629A

BRACKET HANDLE H3250 LH

$

$

Not available

44

Generac 0E9507B

SCREW HHFC M8-1.25 X 25 W/M10

$3.99

$

In Stock, only 4 left!

0

45

Generac 0J6588

SCREW HHFC 5/16-24 X 8.27

$9.49

$

Usually ships in 2-12 days

0

45A

Generac 050190

WASHER FLAT .344ID X 1.0OD
(Superseded to G050190)

$0.99

$

Usually ships in 2-12 days

0

45B

Generac 070006

WASHER LOCK M8 SS
(Superseded to G070006)

$1.99

$

Usually ships in 2-12 days

0

46

Generac 0J6589

SCREW HHC M6-1.0 X 130

$3.49

$

Usually ships in 2-12 days

0

47

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$3.99

$

In Stock, only 1 left!

0

48

0J6678

WASHER LOCK INT M5 SS

$

$

Not available

49

Generac 080856

WASHER LOCK M5 SS
(Superseded to G080856)

$0.99

$

Usually ships in 2-12 days

0

50

Generac 051716

NUT HEX M5-0.8 G8 CLEAR ZINC
(Superseded to G051716)

$0.99

$

Usually ships in 2-12 days

0

51

Generac 0J4968

SCREW HHFC M5-0.8 X 16

$1.49

$

Usually ships in 2-12 days

0

52

Generac 052619

SCREW HHC M5-0.8 X 20 G8.8

$

$

Not available

53

Generac 080857

WASHER FLAT M5 SS

$

$

Not available

54

Generac 0J4967

SCREW HHFC M5-0.8 X 12

$1.49

$

Usually ships in 2-12 days

0

55

Generac 067989

NUT HEX FL WHIZ M8-1.25
(Superseded to G067989)

$3.49

$

In Stock, Qty 20+

0

56

Generac 0H1359

PLATE, FUEL GAGE

Note: CANNOT BUY SEPARATE. MUST PURCHASE FUEL GAUGE ASSY OFF OF BOM

$

$

Currently unavailable

57

Generac 089230

SCREW HHFC M8-1.25 X 35 G8.8

$

$

Not available

58

Generac 0J5628A

ENGINE 208 PS W/MLFR HNYWL

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS. FOR ENGINE INFORMATION REFER TO THE FOLLOWING: 0J5628APMNL 208cc GASOLINE ENG (G24) PARTS MNL

$627.99

$

Usually ships in 2-12 days

0

59

Generac 078606

SCREW PPHM M6-1.0 X 12 SEMS
(Superseded to G078606)

$11.99

$

Usually ships in 2-12 days

0

60

Generac 0E9507C

SCREW HHFC M8-1.25 X 20 W/M10

$1.99

$

In Stock, Qty 14

0

61

Generac 0E1552

SCREW HHFC M6-1.0 X 12 W/M5

Note: ORDER 0D6147 ON MODELS 4806,4857 AND 4858-0 USE 0C8563

$0.99

$

Usually ships in 2-12 days

0

62

Generac 0E8388

NUT HEX FL WHIZ M6-1.0

$6.99

$

Usually ships in 2-12 days

0

63

Generac 038150

WASHER FLAT #8 ZINC
(Superseded to G038150)

Note: MODEL 4270-3 AND 4614- CHANGE TO PART NUMBER 051713 WASHER FLAT M5 AND LOCK WASHER 049226 WHEN USING WITH 076040 SCREW PER ECO- G-6948

$0.99

$

Usually ships in 2-12 days

0

64

Generac 0J4616

SCREW PPPH #8-16 X 0.40" BZC

$1.49

$

Usually ships in 2-12 days

0

65

Generac 0J7517

WASHER LOCK EXT M6 CLEAR ZINC

$

$

Currently unavailable

66

Generac 0C8566

SCREW HHFC M6-1.0 X 20 G8.8

Note: ON MODELS 4858-0, 4857-0 AND 4806-0 USE 0C8563

$12.99

$

Usually ships in 2-12 days

0

67

Generac 0E9507D

SCREW HHFC M8-1.25 X 40 W/M10

$1.49

$

Usually ships in 2-12 days

0

68

Generac 0H1779A

SCREW HHFC M8-1.25 X 43

$

$

Currently unavailable

69

Generac 0H1781B

CHB M6-1.00 X 37 MM LONG

$0.99

$

Usually ships in 2-12 days

0

70

Generac 0H1782A

CAP NUT M6-1.00 BLACK ZINC

$0.99

$

Usually ships in 2-12 days

0

71

Generac 0H1782

CAP NUT M8-1.25 BLACK ZINC

$2.99

$

In Stock, Qty 12

0

72

Generac 0J6331

PNL PLASTIC SIDE C-PNL HW3250

$47.99

$

Usually ships in 2-12 days

0

73

0J7435

WELDMENT FUEL TANK H3250

$

$

Not available

74

Generac 0G1705

SCREW HHFC M6-1.0 X 14 G8.8

$0.99

$

Usually ships in 2-12 days

0

75

0H1610B

ANTI-CRUSH 8OD 6.2ID 5LG

$

$

Not available

76

Generac 070008

WASHER FLAT M8 SS
(Superseded to G070008)

$1.49

$

Usually ships in 2-12 days

0

77

Generac 0G8382

SCREW PPPH #8-16 X .66" BZC

$1.99

$

Usually ships in 2-12 days

0

78

Generac 0J6332

BADGE SIDE PANEL H3250

$

$

Currently unavailable

79

Generac 0H3578

ASSY ALTERNATOR 3250W PORTABLE

$687.99

$

Usually ships in 2-12 days

0

80

Generac 057824

CLAMP HOSE #16 .87-1.50
(Superseded to G057824)

$4.99

$

Usually ships in 2-12 days

0

81

Generac 0H3377

SPARK ARRESTOR, 163/208CC

$20.99

$

Usually ships in 2-12 days

0

82

Generac 0J6617

ASSY MUFFLER H3250

Note: ORDER P/N 0J66170SRV

$

$

Currently unavailable
