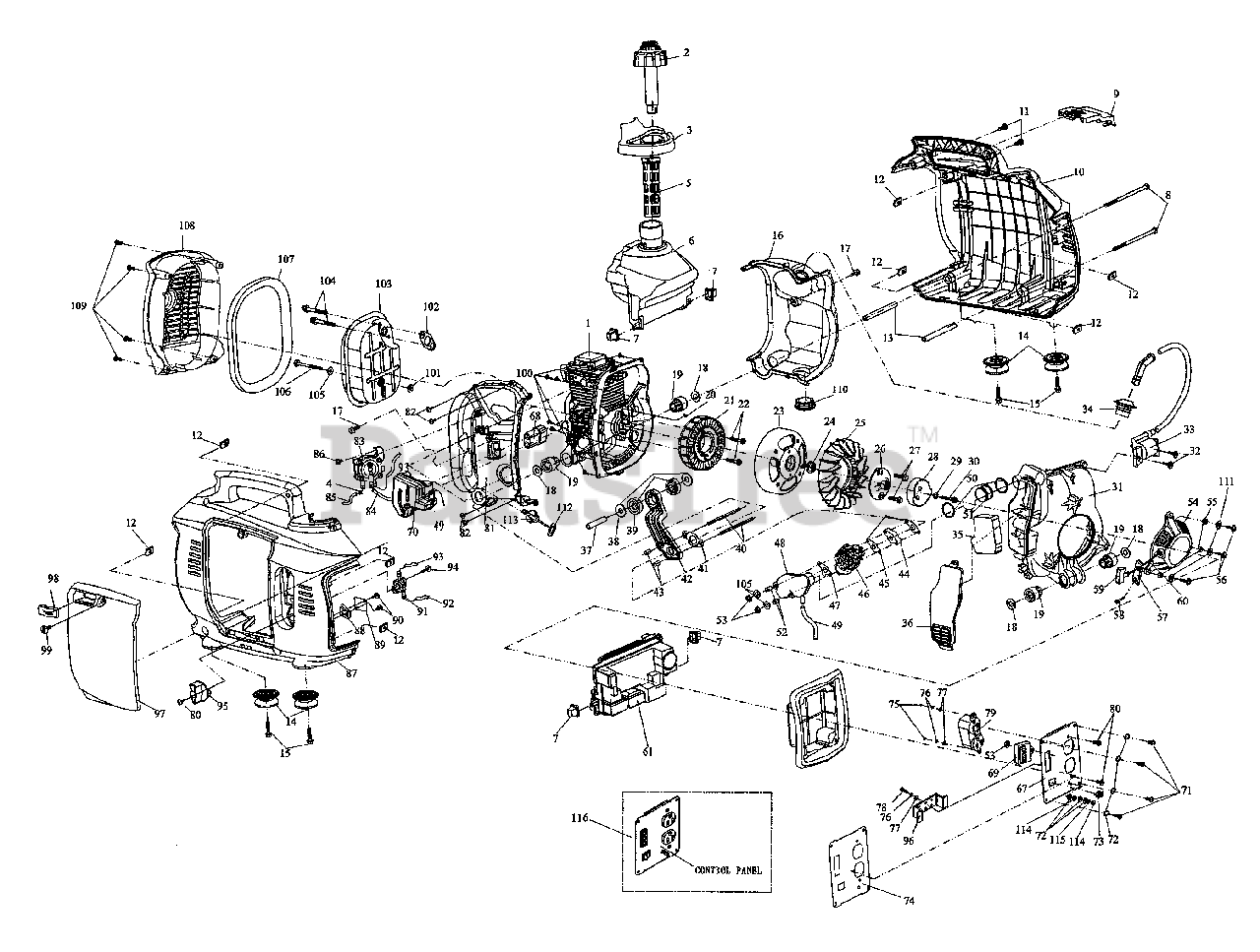

HW800W (0060640) - Honeywell Portable Generator (SN: 6460617C - 6915225C) (2012) No Assembly Title Parts Diagram

Portable Generator

No Assembly Title Parts Diagram

  • Title

1

Generac 0H5681

ENGINE ASSY.

$831.99

$

Usually ships in 2-12 days

0

2

Generac 0H4347H110

CAP ASSY, FUEL TANK (RED)

$26.99

$

Usually ships in 2-12 days

0

3

Generac 0H56810110

FUEL FILLER INLET RUBBER RING

$19.99

$

Usually ships in 2-12 days

0

4

Generac 0H43470198

CLAMP, FUEL HOSE

$5.99

$

In Stock, only 2 left!

0

5

Generac 0H43470112

CUP, FUEL FILTER

$3.49

$

Usually ships in 2-12 days

0

6

Generac 0H56810111

TANK, FUEL

$45.99

$

Usually ships in 2-12 days

0

7

Generac 0H43470114

SHOCK ABSORBER BLOCK

$1.99

$

In Stock, only 1 left!

0

8

Generac 0H63620150

SCREW, CROSS RECESSED PAN HEAD, M6X120

$1.99

$

Usually ships in 2-12 days

0

9

Generac 0H5681H112

COVER, UPPER SHELL

$

$

Currently unavailable

10

Generac 0H5681H113

SHELL, UPPER

$

$

Currently unavailable

11

Generac 0H43470168

SCREW, CROSS RECESSED PAN HEAD, M6X14

$0.99

$

In Stock, only 1 left!

0

12

Generac 0H43470117

LOCK SLICE/SCREW CLIP

$

$

Not available

13

Generac 0H63620117

ALIGNMENT PIN

$5.49

$

Usually ships in 2-12 days

0

14

Generac 0H43470118

DAMPING FEET

$5.99

$

In Stock, only 2 left!

0

15

Generac 0H43470121

BOLT, HEX, FLANGE FACE (M6X12)

$0.99

$

Usually ships in 2-12 days

0

16

Generac 0H56810114

LOWER CASING, ENGINE

$16.99

$

Usually ships in 2-12 days

0

17

Generac 0H43470142

BOLT, HEX, FLANGE FACE (M5X16)

$0.99

$

Usually ships in 2-12 days

0

18

Generac 0H43470123

WASHER

$0.99

$

In Stock, only 4 left!

0

19

Generac 0H43470124

SLEEVE, DAMPING/VIBRATION MOUNTS

$

$

Not available

20

Generac 0H43470125

KEY, WOODRUFF--3X5X13

$0.99

$

Usually ships in 2-12 days

0

21

Generac 0H56810115

STATOR ASSY.

$219.99

$

Usually ships in 2-12 days

0

22

Generac 0H56810116

BOLT, HEX, FLANGE FACE (M5X25)

$0.99

$

Usually ships in 2-12 days

0

23

Generac 0H56810117

FLYWHEEL ROTOR ASSY.

$

$

Not available

24

Generac 0H63620124

NUT, HEX FLANGE FACE(M10x1.25-8)

$1.49

$

Usually ships in 2-12 days

0

25

Generac 0H56810118

FAN

$10.99

$

Usually ships in 2-12 days

0

26

Generac 0H56810119

SEAT, STARTING JAW

$9.49

$

Usually ships in 2-12 days

0

27

Generac 0H43470132

BOLT, HEX , FLANGE FACE(M6X14)

$0.99

$

Usually ships in 2-12 days

0

28

Generac 0H56810120

JAW, STARTING

$6.49

$

Usually ships in 2-12 days

0

29

Generac 0H43470213

WASHER (6)

$0.99

$

Usually ships in 2-12 days

0

30

Generac 0H56810121

BOLT, HEX, FLANGE FACE(M6X18)

$0.99

$

Usually ships in 2-12 days

0

31

Generac 0H56810122

COWLING & INLET COVER ASSY.

$36.99

$

Usually ships in 2-12 days

0

32

Generac 0H56810123

SCREW, CROSS RECESSED PAN HEAD TAPPING

$0.99

$

Usually ships in 2-12 days

0

33

Generac 0H56810124

COIL, INGITION

$

$

Not available

34

Generac 0H56810125

SLEEVE, RUBBER (HIGH VOLTAGE)

$1.49

$

Usually ships in 2-12 days

0

35

Generac 0H56810126

SPONGE, AIR FILTER

$

$

Not available

36

Generac 0H56810127

COVER, AIR FILTER

$3.99

$

Usually ships in 2-12 days

0

37

Generac 0H56810128

ALIGNMENT PIN

$0.99

$

Usually ships in 2-12 days

0

38

Generac 0H56810129

WASHER

$0.99

$

Usually ships in 2-12 days

0

39

Generac 0H56810130

DAMPING RING, POTHOOK

$0.99

$

Usually ships in 2-12 days

0

40

Generac 0H56810131

STUD BOLT

$7.49

$

Usually ships in 2-12 days

0

41

Generac 0H56810132

GASKET, POTHOOK

$0.99

$

Usually ships in 2-12 days

0

42

Generac 0H56810133

POTHOOK

$7.49

$

Usually ships in 2-12 days

0

43

Generac 0H56810134

PIN, HOLLOW FIXED POSITION

$0.99

$

Usually ships in 2-12 days

0

44

Generac 0H56810135

BLOCK, CARBURETOR CUSHION

$1.49

$

Usually ships in 2-12 days

0

45

Generac 0H56810136

SEAL GASKET, CARBURETOR(OUT)

$6.49

$

In Stock, Qty 6

0

46

Generac 0H56810137

CARBURETOR REGULATING ASSY.

Note: STEPPER MOTOR INCLUDED WITH CARBURETOR.

$

$

Not available

46A

Generac 0H56810200

STEPPER MOTOR

$23.99

$

Usually ships in 2-12 days

0

47

Generac 0H63620141

SEAL GASKET, CARBURETOR(IN)

$4.99

$

In Stock, only 4 left!

0

48

Generac 0H56810138

FILTER ADAPTER BOX(BREATHER)

$4.99

$

Usually ships in 2-12 days

0

49

Generac 0H56810139

TUBE, BREATHER

$11.99

$

Usually ships in 2-12 days

0

50

Generac 0H43470151

CIRCLIP, ADAPTER

$

$

Not available

51

Generac 0H43470152

SLEEVE, FILTER ADAPTER

$0.99

$

Usually ships in 2-12 days

0

52

Generac 0H56810140

ALIGNMENT PIN, ADAPTER BOX

$0.99

$

Usually ships in 2-12 days

0

53

Generac 0H63620142

NUT, HEX FLANGE FACE

$0.99

$

Usually ships in 2-12 days

0

54

Generac 0H56810141

STARTER ASSY.

$31.99

$

Usually ships in 2-12 days

0

55

Generac 0H56810142

SAFEGUARD TUBE

$0.99

$

Usually ships in 2-12 days

0

56

Generac 0H56810143

REC.PAN HEAD SCREW/WASHER ASSY.(M5X12)

$0.99

$

Usually ships in 2-12 days

0

57

Generac 0H43470155

HANDLE PANEL

$

$

Not available

58

Generac 0H43470200

RECESSED HEAD BOLT & WASHER ASSY.

$

$

Not available

59

Generac 0H43470153

STARTER HANDLE

$

$

Not available

59a

Generac 0H56810144

STARTER HANDEL HOOD

$3.49

$

Usually ships in 2-12 days

0

60

Generac 0H43470154

STARTER ROPE

$

$

Not available

61

Generac 0H56810145

INVERTER

Note: THE 0H56810145 IS THE INVERTER FOR MODELS--- 005791-1 005791-2 005791-3 THE INVERTER FOR MODEL 005791-0--0H5681A145--IS OBSOLETE AND NOT AVAILABL

$1103.99

$

Usually ships in 2-12 days

0
