HWPS 26700BV (84952) - Snapper 26" Walk-Behind Mower, 7hp REAR WHEELS, HEIGHT LATCHES, DEBRIS SHIELD Parts Diagram

26" Walk-Behind Mower, 7hp

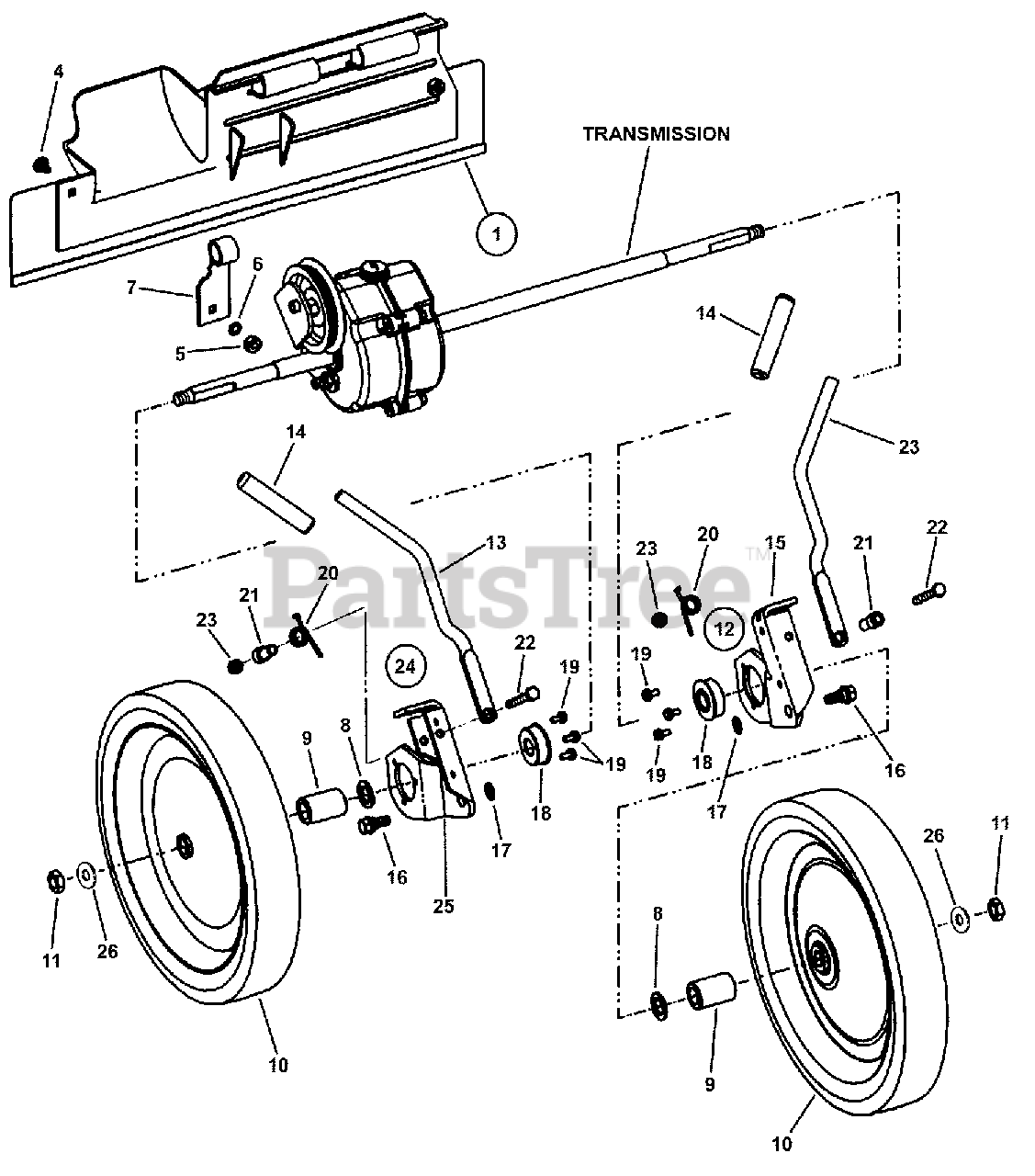

REAR WHEELS, HEIGHT LATCHES, DEBRIS SHIELD Parts Diagram

  • Title

1

Snapper 7057855

ASSEMBLY, Debris Shield

Note: (Includes indented items below, plus 5 staples)

$

$

Not available

--

Snapper 7046820

GUARD, Foot
(Superseded to 7046820YP)

$33.99

$

Usually ships in 2-12 days

0

--

Snapper 7057855

SHIELD, Debris

Note: Was 46984

$

$

Not available

4

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage GR5
(Superseded to 703978)

Note: Was 90005

$3.99

$

In Stock, Qty 18

0

5

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 15

0

6

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 5

0

7

Snapper 7012616

SUPPORT, Foot Guard
(Superseded to 7012616YP)

$5.49

$

In Stock, Qty 17

0

8

Snapper 7091043

BUSHING, 5/8" Machine
(Superseded to 7091043YP)

Note: Not Used on 2001 or 2002 Models

$3.49

$

In Stock, only 4 left!

0

9

Snapper 7072323

SPACER, 5/8" I.D. x 1-1/2" long
(Superseded to 7072323YP)

$57.99

$

Usually ships in 2-12 days

0

10

Snapper 7073521

WHEEL, 12" x 2.00 Diamond Tread

Note: Was 72327

$

$

Not available

11

Snapper 7090377

NUT, 7/16-20 Hex Center Lock Jam
(Superseded to 7090377SM)

$5.49

$

In Stock, Qty 15

0

12

Snapper 7057844

ASSEMBLY, Left Wheel Arm

Note: (Includes indented items below)

$

$

Currently unavailable

13

Snapper 7046817

LEVER, Height Adjuster
(Superseded to 7046817YP)

$15.99

$

Usually ships in 2-12 days

0

14

Snapper 7022295

GRIP, Shift Handle
(Superseded to 7022295YP)

$7.49

$

In Stock, only 2 left!

0

15

Snapper 7046818

ARM, Left
(Superseded to 7046818YP)

$106.99

$

Usually ships in 2-12 days

0

16

Snapper 7015761

BOLT, 5/16-18 Hex Washer Face Shoulder
(Superseded to 703839)

$5.49

$

In Stock, only 2 left!

0

17

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 9

0

18

Snapper 7046983

BEARING, 9/16"
(Superseded to 7046983YP)

$23.99

$

In Stock, only 2 left!

0

19

Snapper 7091012

SCREW, #10-32 x 3/8" Hex Washer Self-Tap
(Superseded to 703967)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7028888

SPRING, Return
(Superseded to 7028888YP)

$6.99

$

Usually ships in 2-12 days

0

21

Snapper 7028926

SPACER, Height Adjust
(Superseded to 7028926YP)

$11.99

$

Usually ships in 2-12 days

0

22

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Head Cap GR5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7057845

ASSEMBLY, Right Wheel Arm

Note: (Includes items 13, 14, 16 thru 23 and 25)

$

$

Currently unavailable

25

Snapper 7046819

ARM, Right
(Superseded to 7046819YP)

$103.99

$

Usually ships in 2-12 days

0

26

Snapper 7031961

WASHER, 7/16" Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0
