HWSS 100 - MTD Pro Spreader Frame Parts Diagram

Pro Spreader

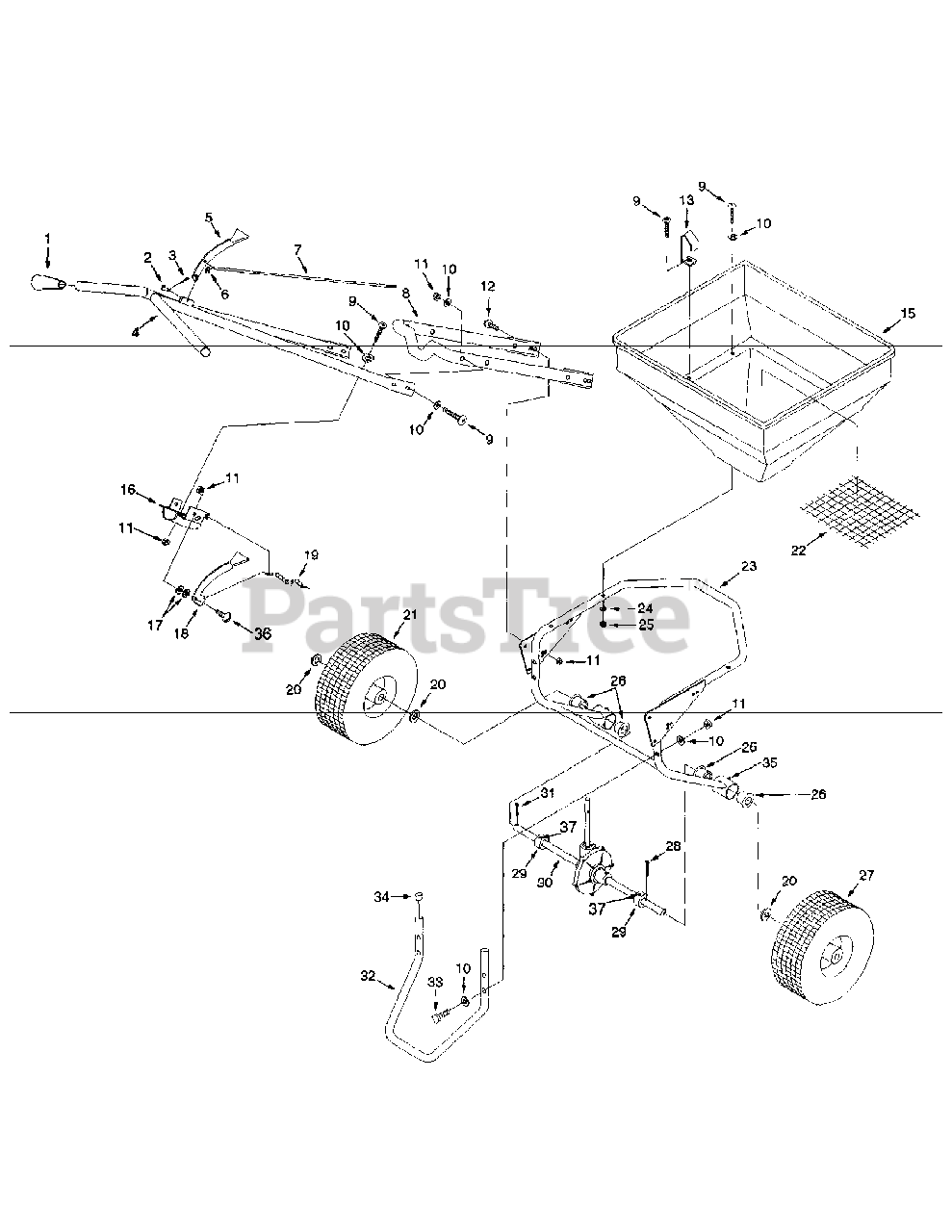

Frame Parts Diagram

  • Title

1

MTD 00030446

Handle Grip

$12.99

$

Usually ships in 3-6 days

0

2

MTD 00060031

Clevis Pin, 1/4 x 1/2, SS
(Superseded to 715-05056)

$8.99

$

In Stock, only 2 left!

0

3

MTD 00060032

Cotter Pin, 3/32 x 1/2, SS

$

$

Not available

4

MTD 00030413

Upper Handle, SS

Note: NLA

$

$

Not available

5

MTD 00060034

Operating Lever, SS and Rubber Knob
(Superseded to 680-00406)

$30.99

$

Usually ships in 3-6 days

0

6

MTD 00010171

C-Clip
(Superseded to 726-05073)

$4.49

$

Usually ships in 3-6 days

0

7

MTD 00030408

Lever Rod, SS

$

$

Not available

8

MTD 00030436

Lower Handle, SS

Note: NLA

$

$

Not available

9

MTD 00060047

Machine Screw, 1/4-20 x 1-1/2, SS

$4.49

$

Usually ships in 3-6 days

0

10

MTD 00060033

Flat Washer, 1/4, SS
(Superseded to 736-05152)

$7.49

$

Usually ships in 3-6 days

0

11

MTD 712-0324

Hex Nut, 1/4-20 Nylock, SS

$3.49

$

In Stock, Qty 20+

0

12

MTD 00070029

Machine Screw, 1/4-20 x 5/8, SS

Note: NLA

$

$

Not available

13

MTD 00060046

Screen Clip, SS
(Superseded to 703-10298)

$9.49

$

In Stock, only 2 left!

0

15

MTD 01001003

Hopper

Note: NLA

$

$

Not available

16

MTD 00030418

Bracket, Dual Remote, SS

$42.99

$

Usually ships in 3-6 days

0

17

MTD 00018628

Flat Washer, 1/4, Nylon

$3.49

$

Usually ships in 3-6 days

0

18

MTD 00030416

Remote Cable Lever, SS and Rubber Knob

$24.99

$

In Stock, Qty 16

0

19

MTD 00030444

Cable, Remote Control

$

$

Not available

20

MTD 00060017

Spacer Washer, SS
(Superseded to 736-05151)

$3.99

$

In Stock, only 4 left!

0

21

MTD 00019790

Idler Wheel, Composite

Note: NLA

$

$

Not available

22

MTD 00030412

Hopper Screen

Note: NLA

$

$

Not available

23

MTD 00030500

Frame

Note: NLA

$

$

Not available

24

MTD 00060058

Lock Washer, 1/4, SS

$

$

Not available

25

MTD 00060059

Hex Nut, 1/4-20, SS

$2.99

$

Usually ships in 3-6 days

0

26

MTD 00018963

Axle Bushing, Composite
(Superseded to 741-05179)

$7.99

$

Usually ships in 3-6 days

0

27

MTD 00018901

Drive Wheel, Composite

$

$

Not available

28

MTD 00060012

Cotter Pin, 3/16 x 1-3/4, SS
(Superseded to 714-05018)

$7.99

$

Usually ships in 3-6 days

0

29

MTD 00060014

Shaft Collar, SS

$21.99

$

Usually ships in 3-6 days

0

30

MTD 00030391

Spreader Axle, SS

$

$

Not available

32

MTD 00030438

Leg, SS

$

$

Not available

33

MTD 00020962

Cap Screw, 1/4-20 x 2-1/4, SS

Note: NLA

$

$

Not available

34

MTD 00020913

Plastic Plug
(Superseded to 731-11580)

$3.99

$

Usually ships in 3-6 days

0

35

MTD 737-04345

Grease Fitting,1/4-28 Straight

$4.49

$

In Stock, Qty 18

0

36

MTD 00060057

Pan Hd. Mach. Scr. 1/4-20 x 7/8

$4.99

$

Usually ships in 3-6 days

0

37

MTD 00010985

Set Screw

$

$

Not available
