HWT-622 (25A-258H190) - White Outdoor Walk-Behind Trimmer (2001) Trimmer Mower Assembly Parts Diagram

Walk-Behind Trimmer

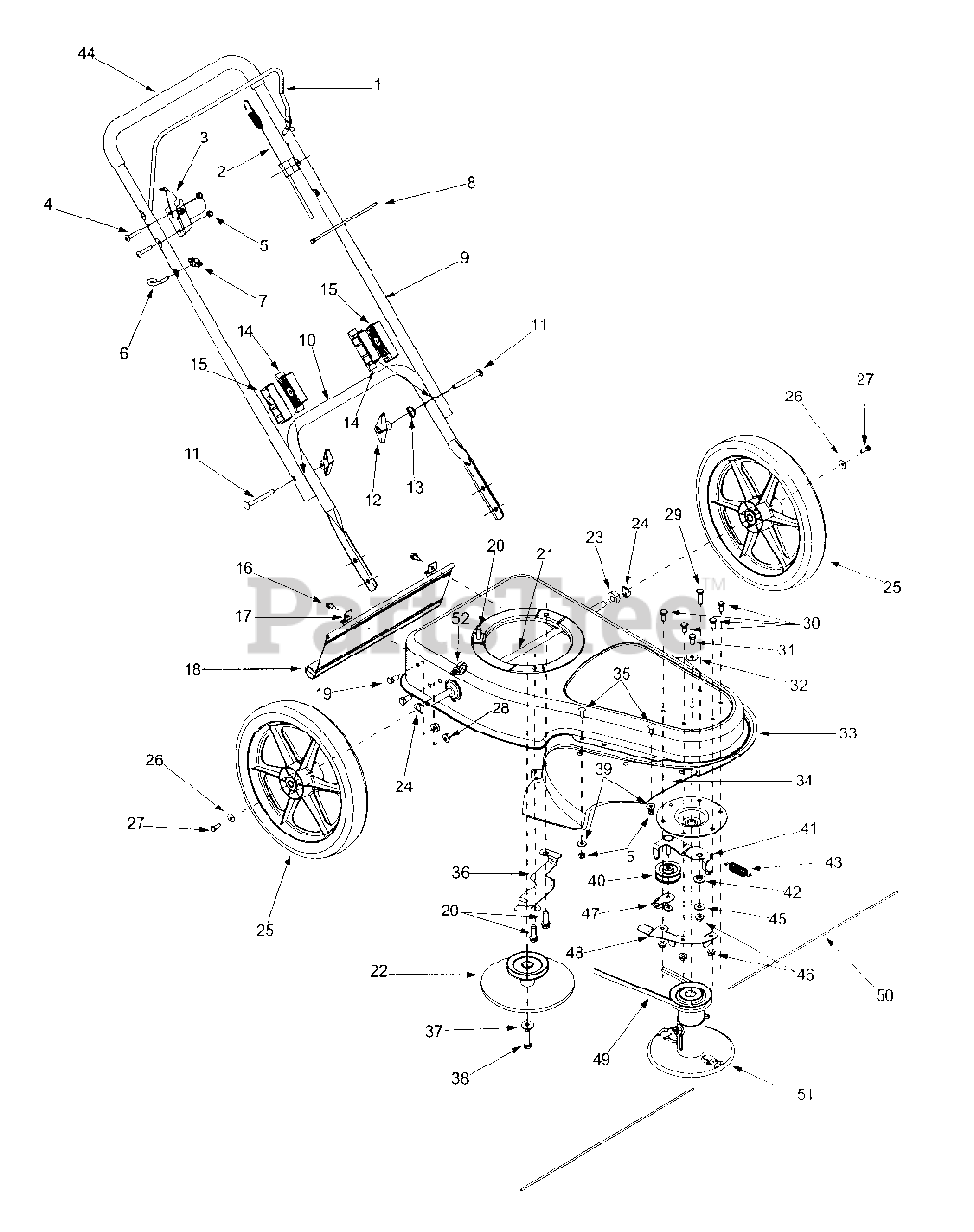

Trimmer Mower Assembly Parts Diagram

  • Title

1

MTD 747-0824B-0637

Control Lever

$61.99

$

In Stock, only 1 left!

0

2

MTD 946-1116A

Engagement Cable

$36.99

$

In Stock, Qty 8

0

3

MTD 981-0166

Control Lock Bracket

$

$

Not available

4

MTD 710-0578

Machine Screw 1/4-20 x 1.50

$4.49

$

Usually ships in 3-6 days

0

5

MTD 712-0324

Hex Lock Nut 1/4-20

$3.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Eye Bolt 1/4-20

$3.99

$

In Stock, Qty 15

0

7

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

8

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

9

MTD 749-1255-0637

Upper Handle

$

$

Not available

10

MTD 749-1254-0637

Lower Handle

$

$

Not available

11

MTD 710-0450

Carriage Screw 5/16-18 x 3.0

$5.99

$

Usually ships in 3-6 days

0

12

MTD 920-0284

Wing Nut
(Superseded to 720-0284)

$6.49

$

In Stock, Qty 20+

0

13

MTD 936-0451

Shoulder Washer.320 ID x .93 OD
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

14

MTD 731-1267

Lower Handle Connector

$

$

Not available

15

MTD 731-1268

Upper Handle Connector

$15.99

$

Usually ships in 3-6 days

0

16

MTD 710-0896

Hex Washer Screw 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

17

MTD 782-9065

Trail Shield Clip

Note: *CHOOSE COLOR WHEN ORDERING*

$3.99

$

In Stock, only 3 left!

0

18

MTD 731-2329

Trail Shield

Note: NLA

$24.99

$

In Stock, only 1 left!

0

19

MTD 710-0216

Hex Cap Screw 3/8-16 x .750

$3.99

$

In Stock, Qty 17

0

20

MTD 710-0502A

Hex Washer Screw 3/8-16 x 1.25

$6.49

$

In Stock, Qty 7

0

21

MTD 681-0159

Trimmer Axle
(Superseded to 681P0159A)

$54.99

$

In Stock, only 1 left!

0

22

MTD 756-1223

Flywheel Pulley

$114.99

$

Usually ships in 3-6 days

0

23

MTD 750-1240

Spacer .51 ID x 1.0 OD

$3.49

$

In Stock, only 2 left!

0

24

MTD 736-0182

Spacer Washer .501 ID x 1.0 OD

$4.49

$

In Stock, Qty 10

0

25

MTD 734-2030

Wheel Assembly

Note: NLA

$

$

Not available

26

MTD 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 13

0

27

MTD 710-3015

Hex Cap Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

28

MTD 912-3005

Flange Lock Nut 3/8-16
(Superseded to 712-3005)

$6.49

$

Usually ships in 3-6 days

0

29

MTD 710-1694

Screw 5/16-18 x 1.25

$3.49

$

Usually ships in 3-6 days

0

30

MTD 710-1307

Screw 5/16-18 x .75

$6.49

$

Usually ships in 3-6 days

0

31

MTD 710-0237

Hex Cap Screw 5/16-24 x .625

$4.49

$

Usually ships in 3-6 days

0

32

MTD 936-0425

Bell Washer .325 ID x .930 OD
(Superseded to 736-0425)

$

$

Not available

33

MTD 681-0165

Trimmer Base Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0165-0638

DECK ASM: TRIMMER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0165-0662

DECK ASM: TRIMMER - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0165-0665

DECK ASM: TRIMMER - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0165-0716

DECK ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

34

MTD 631-0096

Trimmer Deflector Assembly

$100.99

$

In Stock, only 1 left!

0

35

MTD 710-0703

Hex Carriage Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

36

MTD 781-1007

Belt Keeper Bracket Engine

Note: NLA

Variations

MTD 781-1007-0637

No Longer Available BRACKET-BE - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 936-0452

Bell Washer .396 ID x 1.14 OD
(Superseded to 736-0452)

$4.49

$

In Stock, Qty 16

0

38

MTD 710-1044

Hex Cap Screw 3/8-24 x 1.50

$3.99

$

In Stock, Qty 20+

0

39

MTD 736-0173

Flat Washer .28 ID x .74 OD

$3.99

$

In Stock, Qty 10

0

40

MTD 756-1198

Idler Pulley

$49.99

$

In Stock, only 4 left!

0

41

MTD 981-0181A

Idler Bracket Assembly
(Superseded to 981-1008A)

$45.99

$

In Stock, Qty 11

0

42

MTD 750-1275

Idler Spacer

$5.99

$

In Stock, Qty 11

0

43

MTD 732-1166

Extension Spring .50 Dia x 1.88 Lg

$4.49

$

In Stock, Qty 5

0

44

MTD 720-0295

Handle Grip

$30.99

$

Usually ships in 3-6 days

0

45

MTD 736-0371

Flat Washer

$4.49

$

In Stock, Qty 7

0

46

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

47

MTD 781-1028

Idler Keeper Bracket

Note: NLA

Variations

MTD 781-1028-0637

Idler Keeper Bracket - POWDER BLACK (0637)

$7.99

$

In Stock, Qty 12

0

$7.49

$

Usually ships in 3-6 days

0

48

MTD 781-1020

Belt Keeper Bracket Front

Note: NLA

Variations

MTD 781-1020-0637

Belt Keeper Bracket - POWDER BLACK (0637)

$26.99

$

In Stock, only 3 left!

0

$21.99

$

Usually ships in 3-6 days

0

49

MTD 954-0625A

V-Belt

$28.99

$

In Stock, Qty 11

0

50

MTD OEM-743-0112

Trimmer Line .155 Dia.

$14.99

$

In Stock, Qty 19

0

51

MTD 918-0558

Spindle Assembly, includes 782-0143
(Superseded to 918-0558A)

$

$

Not available

51

MTD 982-0143

Skid Assembly (use with 618-0558) not shown
(Superseded to 982-0143A)

$34.99

$

In Stock, Qty 20+

0

51

MTD 710-3013

Hex Screw 1/4-20 X .5 GR5 not shown

$4.49

$

In Stock, only 2 left!

0

51

MTD 912-0291

Hex Lock Nut 1/4-20
(Superseded to 712-0291)

$

$

Not available

52

MTD 726-3055

Cable Retainer Clip

$6.49

$

In Stock, only 1 left!

0
