HWT-6E (25A-120-190) - White Outdoor Walk-Behind Trimmer (1998) Lower Steering Assembly Parts Diagram

Walk-Behind Trimmer

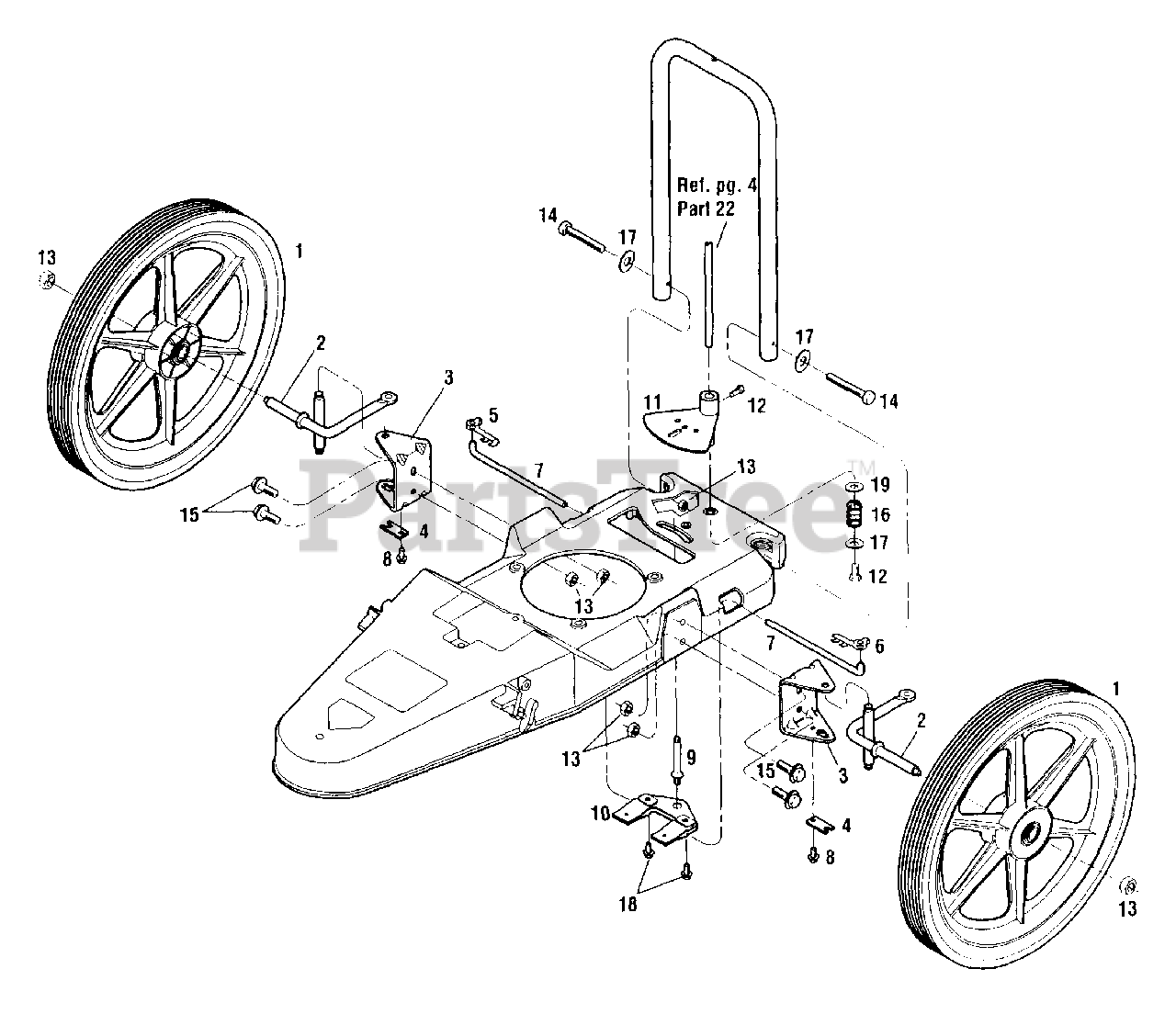

Lower Steering Assembly Parts Diagram

  • Title

1

MTD 1910823

Wheel - 6 Spoke

Note: NLA

$

$

Not available

2

MTD 1910820001

Wheel Arm Weldment

$

$

Not available

3

MTD 1915213001

Wheel Mounting Bracket

Note: NLA

$

$

Not available

4

MTD 1915218001

Wheel Arm Retainer

Note: NLA

$

$

Not available

5

MTD 1765550

Rod End Clip/Right Side

$10.99

$

In Stock, only 1 left!

0

6

MTD 1765551

Rod End Clip/Left Side

$8.49

$

In Stock, only 1 left!

0

7

MTD 1910819

Steering Link

Note: NLA

$

$

Not available

8

MTD 1909301

Hex Flange Screw, 1/4-20 x 5/8

$

$

Not available

9

MTD 1915234

Shoulder Stud

Note: NLA

$

$

Not available

10

MTD 1915249001

Clamp Link

Note: NLA

$

$

Not available

11

MTD 1910811001

Trim Plate

Note: NLA

$

$

Not available

12

MTD 1111696

Screw, 5/16-24 x 1/2

Note: NLA

$

$

Not available

13

MTD 1744708

Hex Lock Nut, 5/16-18

$

$

Not available

14

MTD 1111606

Hex Hd Bolt, 5/16-18 x 2

Note: NLA

$

$

Not available

15

MTD 710-04048

Hex Flange Screw, 5/16-18 x 1

$4.49

$

In Stock, Qty 7

0

16

MTD 1725279

Spring

Note: NLA

$

$

Not available

17

MTD 9901

Washer, 5/16 ID

Note: NLA

$

$

Not available

18

MTD 710-04049

Hex Flange Screw, 5/16-18 x 5/8

$4.49

$

In Stock, Qty 14

0

19

MTD 936-0326

Washer
(Superseded to 736-0326)

$4.49

$

In Stock, Qty 20+
