HX 16 (UT-18022-C) - Homelite Hedge Trimmer Figure 3 Parts Diagram

Hedge Trimmer

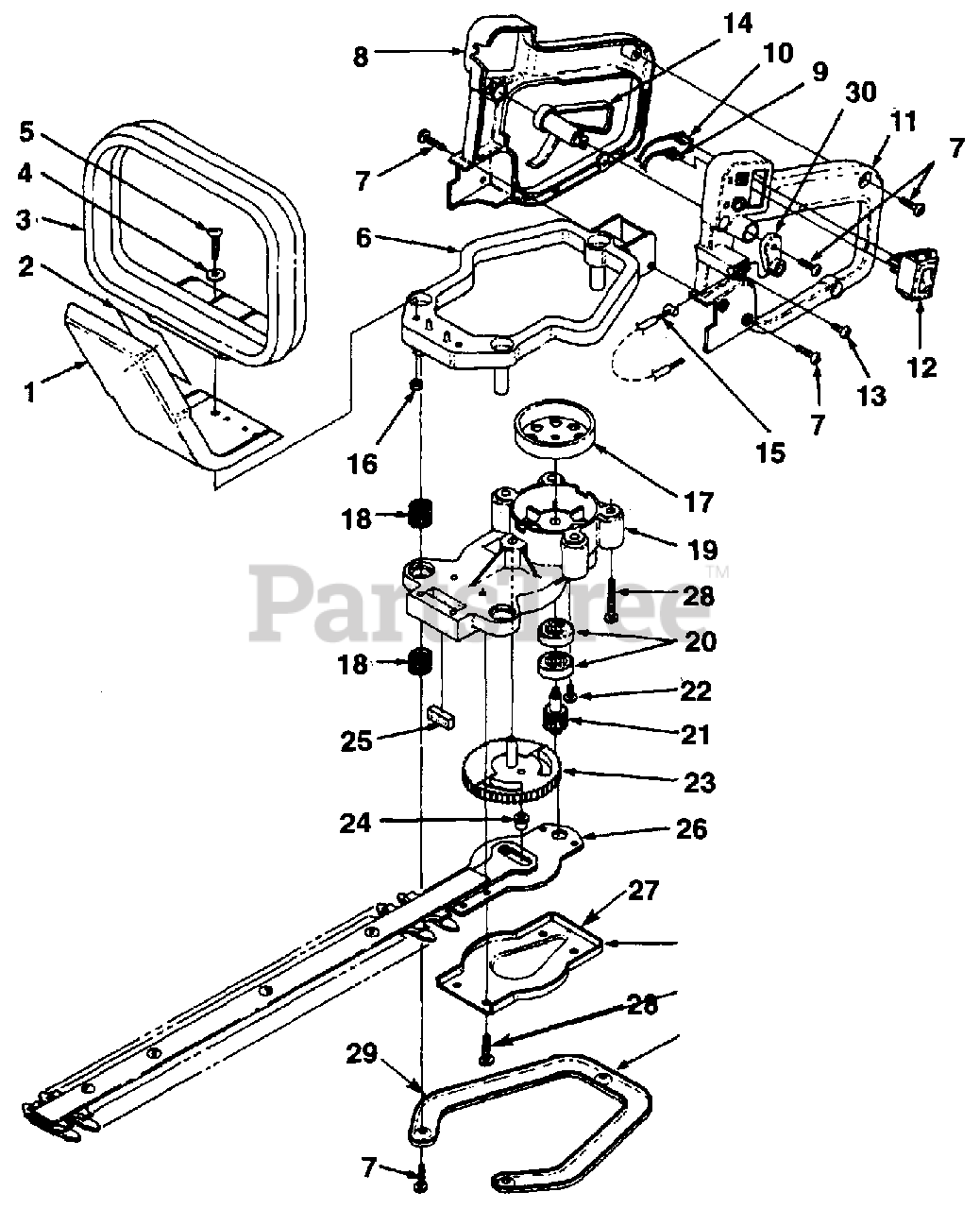

Figure 3 Parts Diagram

  • Title

1

Homelite 00937

GUARD-Hand (HX16, HT17, HT19)

$

$

Not available

Homelite 01972

GUARD-Hand (HT21, HT17I, HT19I, HT21I, HT22)
(Superseded to UP07289)

$

$

Not available

2

Homelite 02745

DECAL-Caution

$

$

Not available

Homelite 02916A

DECAL-Warning (HT17I, HT19I, HT21I)

$

$

Not available

3

Homelite 00936A

HANDLE-Front

$

$

Not available

4

Homelite 95249

WASHER-Flat (10-24)

$

$

Not available

5

Homelite 82538

SCREW-Thread Form. (10-24 X 3/4")

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 01007

BASE-Vibration Isolator

$

$

Not available

7

Homelite 82536

SCREW-Thread Form. (#8 X 3/4")

$

$

Not available

8

Homelite 00938

HANDLE-Rear (Right)
(Superseded to 00938A)

$

$

Not available

9

Homelite A00942

LEAD-Electrical

$

$

Not available

10

Homelite A00943

LEAD-Ground

$

$

Not available

11

Homelite 00939

HANDLE-Rear (Left)
(Superseded to 00939A)

$7.99

$

Usually ships in 3-7 days

0

12

Homelite 00941

SWITCH
(Superseded to 985703001)

$

$

Not available

13

Homelite 82541

SCREW-Thread Form. (#10 X 1/2")

$2.49

$

In Stock, only 3 left!

0

14

Homelite 00958A

TRIGGER

$

$

Currently unavailable

15

Homelite 01973

CABLE-Throttle

$

$

Not available

16

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

17

Homelite 00949B

DRUM-Clutch
(Superseded to 00949C)

$

$

Not available

18

Homelite 01009

SPRING-Compression

$

$

Not available

19

Homelite A01526

GEAR BOX ASSEMBLY
(Superseded to A01526A)

$

$

Not available

20

Homelite 98843

BEARING-Ball

$

$

Not available

21

Homelite A01313

PINION & SCREW ASSEMBLY
(Superseded to UP07968)

$

$

Not available

22

Homelite 82541

SCREW-Thread Form. (#10 X 1/2")

$2.49

$

In Stock, only 3 left!

0

23

Homelite A01312

GEAR & PIN ASSEMBLY
(Superseded to UP07969)

$33.99

$

Usually ships in 3-7 days

0

24

Homelite 00955

BUSHING

$

$

Not available

25

Homelite 00935

BLADE-Seal

$

$

Not available

26

Homelite 07210

BLADE ASSY. (17")
(Superseded to A00956A)

$115.99

$

Usually ships in 3-7 days

0

Homelite 07211

BLADE ASSY. (19")

$

$

Not available

Homelite 04898

BLADE ASSY. (22")

$

$

Not available

Homelite A01841A

BLADE ASSY. (21")

$

$

Not available

27

Homelite 00954

COVER-Gear Box

$5.99

$

Usually ships in 3-7 days

0

28

Homelite 82537

SCREW-Thread Form. (#10 X 7/8")

$

$

Not available

29

Homelite 01013

BRACE

$

$

Not available

30

Homelite 00959

LEVER-Trigger
(Superseded to 00959A)

$

$

Not available

?31

Homelite 07487

WASHER

$

$

Not available
