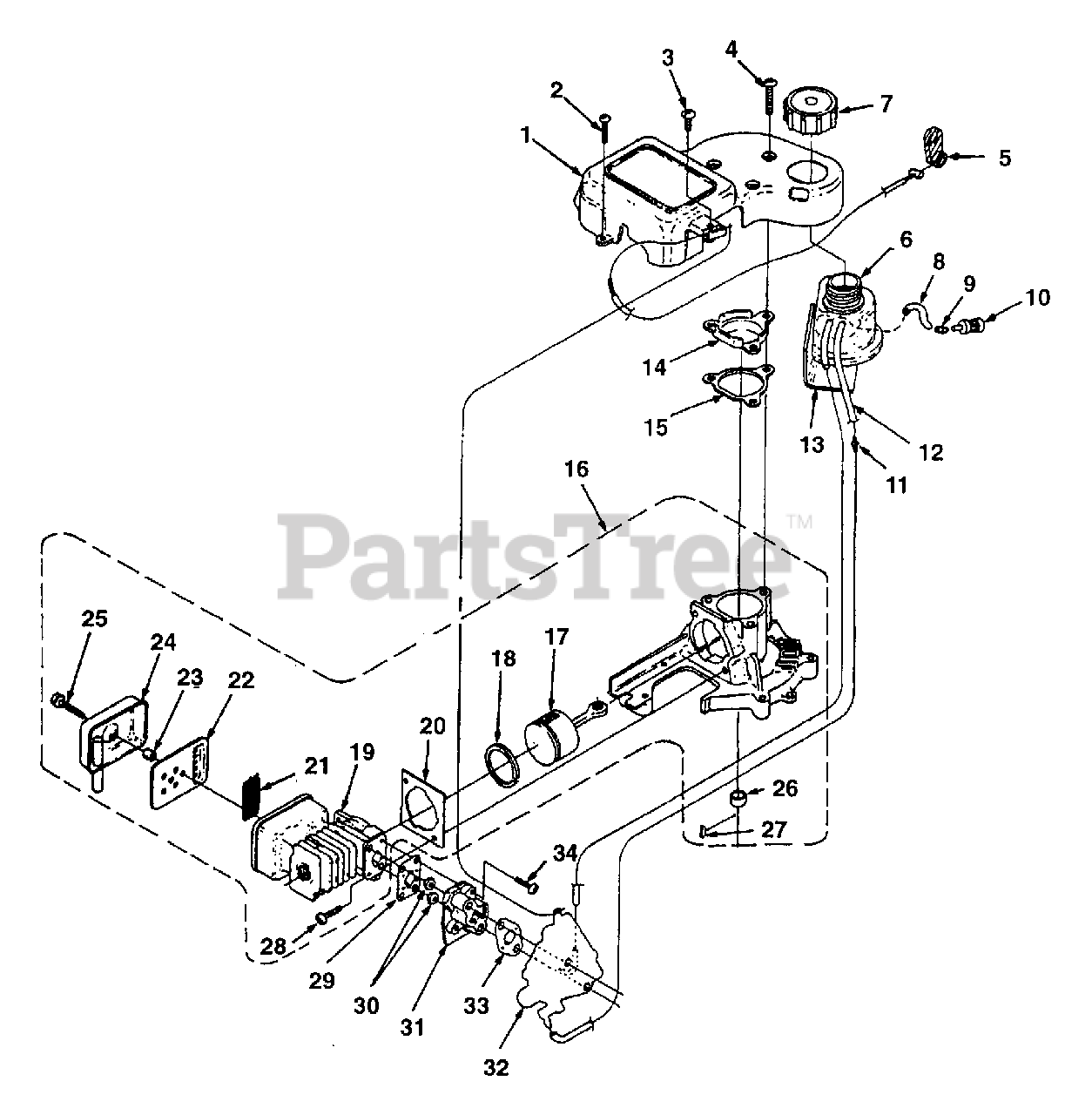

HX 22 (UT-18029-C) - Homelite Hedge Trimmer Engine Internal - Fuel Tank - Muffler - Carburetor Parts Diagram

Hedge Trimmer

Engine Internal - Fuel Tank - Muffler - Carburetor Parts Diagram

  • Title

1

Homelite A08178

COVER-Engine
(Superseded to 009472)

$

$

Not available

2

Homelite 82536

SCREW-Thread Form. (#8 x 3/4")

Note: Torque Specs: 20-30 In/Lbs; 2.3-3.4 Nm

$

$

Not available

3

Homelite 82541

SCREW-Thread Form. (#10 x 1/2")

Note: Torque Specs: 20-30 In/Lbs; 2.3-3.4 Nm

$2.49

$

In Stock, only 3 left!

0

4

Homelite 82538

SCREW-Thread Form. (10-24 x 3/4")

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm; Red 262 (Required Loctite)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 00959A

LEVER-Trigger

$

$

Not available

6

Homelite A08454

FUEL TANK ASSEMBLY

$

$

Currently unavailable

7

Homelite DA00099A

CAP-Fuel
(Superseded to UP04111)

$

$

Not available

8

Homelite 0143921

TUBING-Rubber (5 1/2")
(Superseded to UP04403)

$

$

Not available

9

Homelite 98268

CLAMP-Wire
(Superseded to 690765001)

$2.49

$

In Stock, only 2 left!

0

10

Homelite 49422

FILTER-Fuel
(Superseded to PS03380)

$

$

Not available

11

Homelite 01327

FITTING

Note: As required

$

$

Not available

12

Homelite 9477225

TUBING-Rubber (6 1/4")

$

$

Not available

13

Homelite 00927A

SPACER-Fuel Tank

$

$

Not available

14

Homelite A04820A

CRANKCASE COVER
(Superseded to UP06589)

$16.99

$

Usually ships in 3-7 days

0

15

Homelite 00946

GASKET-Crankcase

$

$

Not available

16

Homelite A08217

SHORT BLOCK

$

$

Not available

17

Homelite A08479

PISTON & ROD
(Superseded to UP07213)

$72.99

$

Usually ships in 3-7 days

0

18

Homelite 08476

RING-Piston
(Superseded to UP07066)

$46.99

$

Usually ships in 3-7 days

0

19

Homelite A08211

CYLINDER & MUFFLER ASSEMBLY

$

$

Currently unavailable

20

Homelite 08159

GASKET-Cylinder

$

$

Not available

21

Homelite 00921

SCREEN-Spark Arrestor

$

$

Not available

22

Homelite 00920

BAFFLE-Muffler

$

$

Not available

23

Homelite 00931

SPACER-Muffler

$

$

Not available

24

Homelite A01838

COVER-Muffler
(Superseded to UP07141)

$

$

Not available

25

Homelite 82540

SCREW-Thread Form. (8-32 x 1")

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 01971

SPACER
(Superseded to UP06361)

$5.49

$

Usually ships in 3-7 days

0

27

Homelite 69250

KEY-Woodruff

$

$

Not available

28

Homelite 82568

SCREW-Machine (10-24 x 3/4")
(Superseded to UP06518)

Note: Torque Specs: 45-55 In/Lbs; 5.1-6.2 Nm

$

$

Not available

29

Homelite 00932B

GASKET-Heat Dam

$

$

Not available

30

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

31

Homelite 00917C

HEAT DAM
(Superseded to UP07271)

$18.99

$

Usually ships in 3-7 days

0

32

Homelite A08212

CARBURETOR KIT

$

$

Currently unavailable

33

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$

$

Not available

34

Homelite 825491

SCREW-Thread Form. (10-24 x 1")
(Superseded to UP05542)

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available
