HydroCut (5900111) - Ferris HydroCut Series 36" Walk-Behind Mower, 13hp Kawasaki Engine Frame & Handle Bars Group - Electric Start Parts Diagram

HydroCut Series 36" Walk-Behind Mower, 13hp Kawasaki

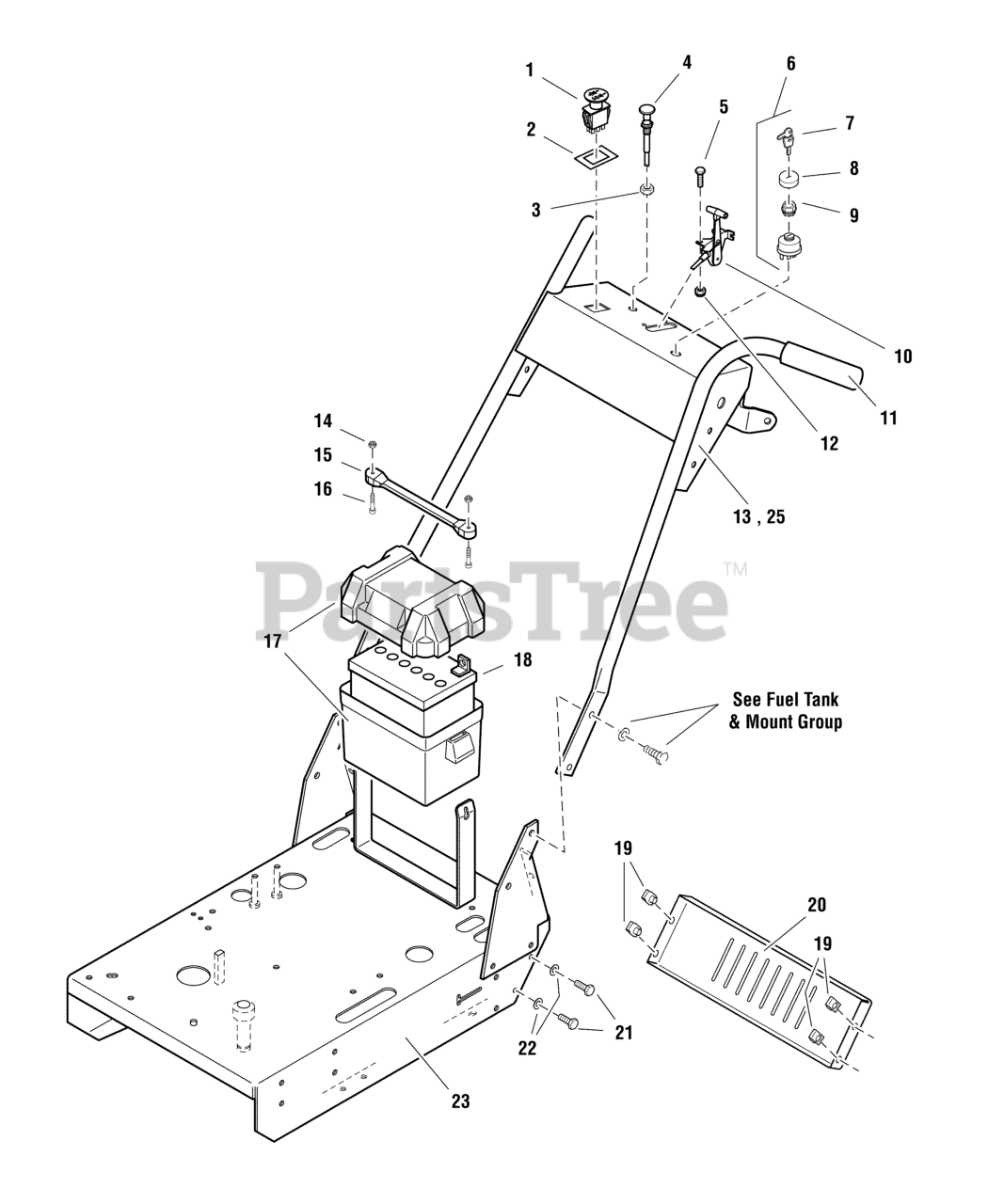

Engine Frame & Handle Bars Group - Electric Start Parts Diagram

  • Title

1

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

2

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

3

Ferris 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5046501

CABLE, CHOKE CONTROL, 47"
(Superseded to 5046501SM)

$55.99

$

Usually ships in 2-12 days

0

5

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

6

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref No. 7 - 9)

$33.99

$

Usually ships in 2-12 days

0

7

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

8

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

9

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5047629

CABLE, THROTTLE CONTROL, 48"
(Superseded to 5047629SM)

$62.99

$

Usually ships in 2-12 days

0

11

Ferris 5104659

GRIP, FOAM, .940" X 4.62" X .187"
(Superseded to 5104659FS)

$7.99

$

Usually ships in 2-12 days

0

12

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5404467B

WELD, HANDLE BAR, TD

Note: (S/N: 2013136021 & Above)

$284.99

$

Usually ships in 2-12 days

0

14

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5021670

STRAP, RUBBER
(Superseded to 5021670SM)

$13.99

$

In Stock, only 1 left!

0

16

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

In Stock, only 2 left!

0

17

Ferris 5100688

BATTERY BOX, W/ DRAIN HOLE
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

18

BATTERY

$

$

Not available

19

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

20

Ferris 5047735B

SHIELD, REAR

$21.99

$

Usually ships in 2-12 days

0

21

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Ferris 5049229B

WELD, ENGINE DECK, HC36

$883.99

$

Usually ships in 2-12 days

0

24

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

25

Ferris 5061279B

WELD, HANDLE BAR, TD

Note: (S/N: 2013136020 & Below)

$296.99

$

Usually ships in 2-12 days

0
