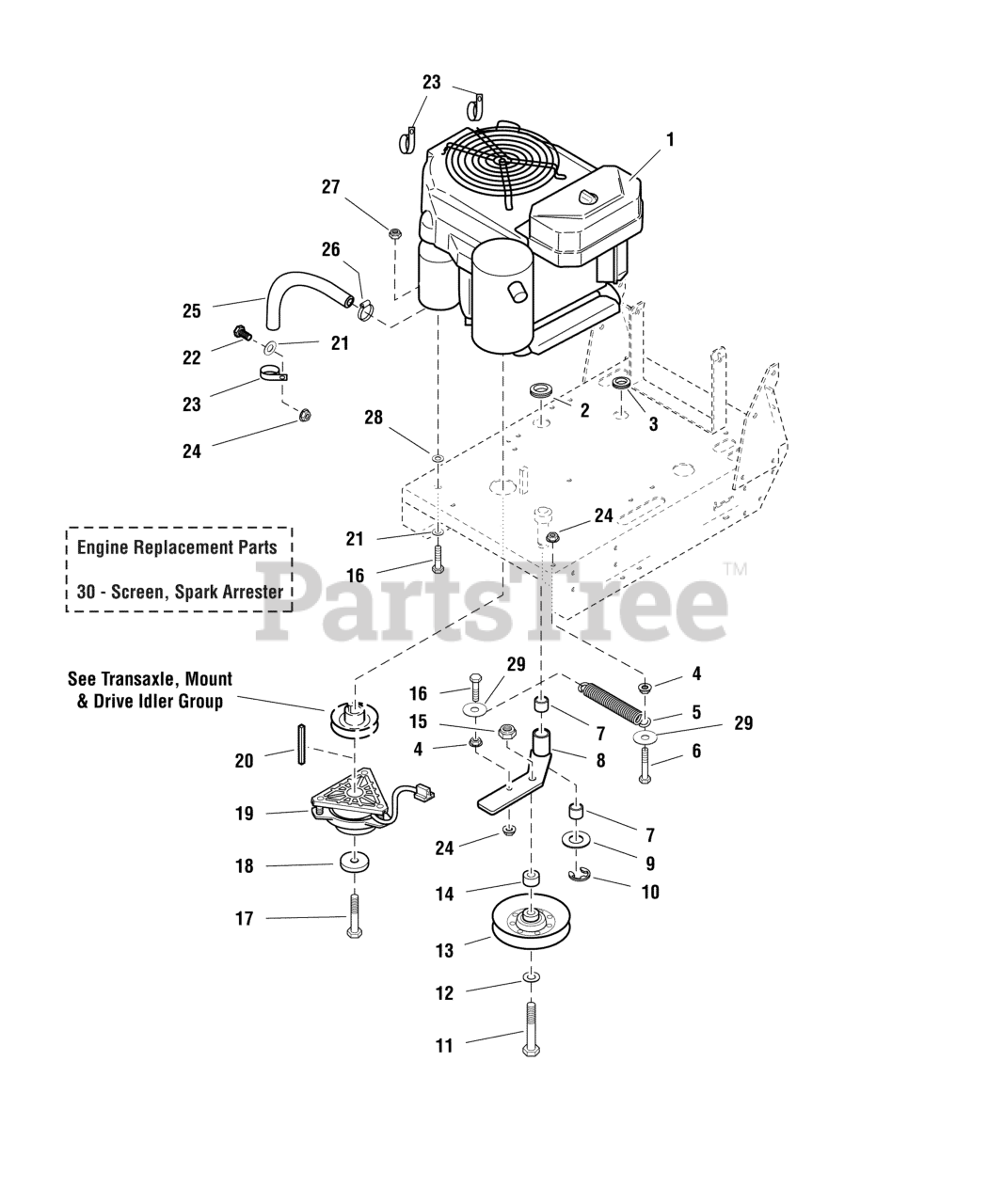

HydroCut (5900111) - Ferris HydroCut Series 36" Walk-Behind Mower, 13hp Kawasaki Engine, PTO & Deck Drive Idler Group - 13HP/36" - Electric Parts Diagram

HydroCut Series 36" Walk-Behind Mower, 13hp Kawasaki

Engine, PTO & Deck Drive Idler Group - 13HP/36" - Electric Parts Diagram

  • Title

1

ENGINE, 13HP KAI ELEC START

$

$

Not available

2

Ferris 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

3

Ferris 5021077

GROMMET, 1/2

$

$

Currently unavailable

4

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

5

Ferris 5023400

SPRING, EXTENSION

$13.99

$

Usually ships in 2-12 days

0

6

Ferris 5025011X18

BOLT, 5/16-18 X 2-1/4" GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

7

Ferris 5020876B

BUSHING, BRASS, 3/4 X 1 X 1
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

8

Ferris 5049208B

WELD, IDLER ARM

$29.99

$

Usually ships in 2-12 days

0

9

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5020863

C-CLIP, 3/4" SHAFT
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 1 left!

0

12

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

13

Ferris 5021097

PULLEY, IDLER, V-NOTCH, 5
(Superseded to 5021097SM)

$40.99

$

Usually ships in 2-12 days

0

14

Ferris 5044609

SPACER, .52 X 1.00 X .38
(Superseded to 5044609SM)

$6.49

$

Usually ships in 2-12 days

0

15

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

16

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5047632

BOLT, CRANKSHAFT, 7/16"X2.75
(Superseded to 5102865)

$5.49

$

In Stock, only 1 left!

0

18

Ferris 5042132

SPACER, .45 X 1.62 X .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

19

Ferris 1757359

CLUTCH, OGURA, 74 ft lbs - 1"
(Superseded to 1757359YP)

Note: (For model S/N: 2016545302 & Below, key is needed unless replacing clutch)

$290.99

$

In Stock, only 1 left!

0

20

Ferris 5050407X16

KEY, 1/4 SQ X 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

21

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

22

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

23

Ferris 5023173

CLAMP, HOSE, 1.000 DIA.
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5050857X10P5

HOSE, 1/2" PUSH-ON, 10.50"

$

$

Not available

26

Ferris 5021392

CLAMP, #6 HOSE, STAINLESS
(Superseded to 5021392SM)

$4.99

$

In Stock, only 2 left!

0

27

Ferris 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

30

Ferris 5101677

SCREEN, SPARK ARRESTER-KAWI 13, 17, 19HP

$26.99

$

Usually ships in 2-12 days

0
