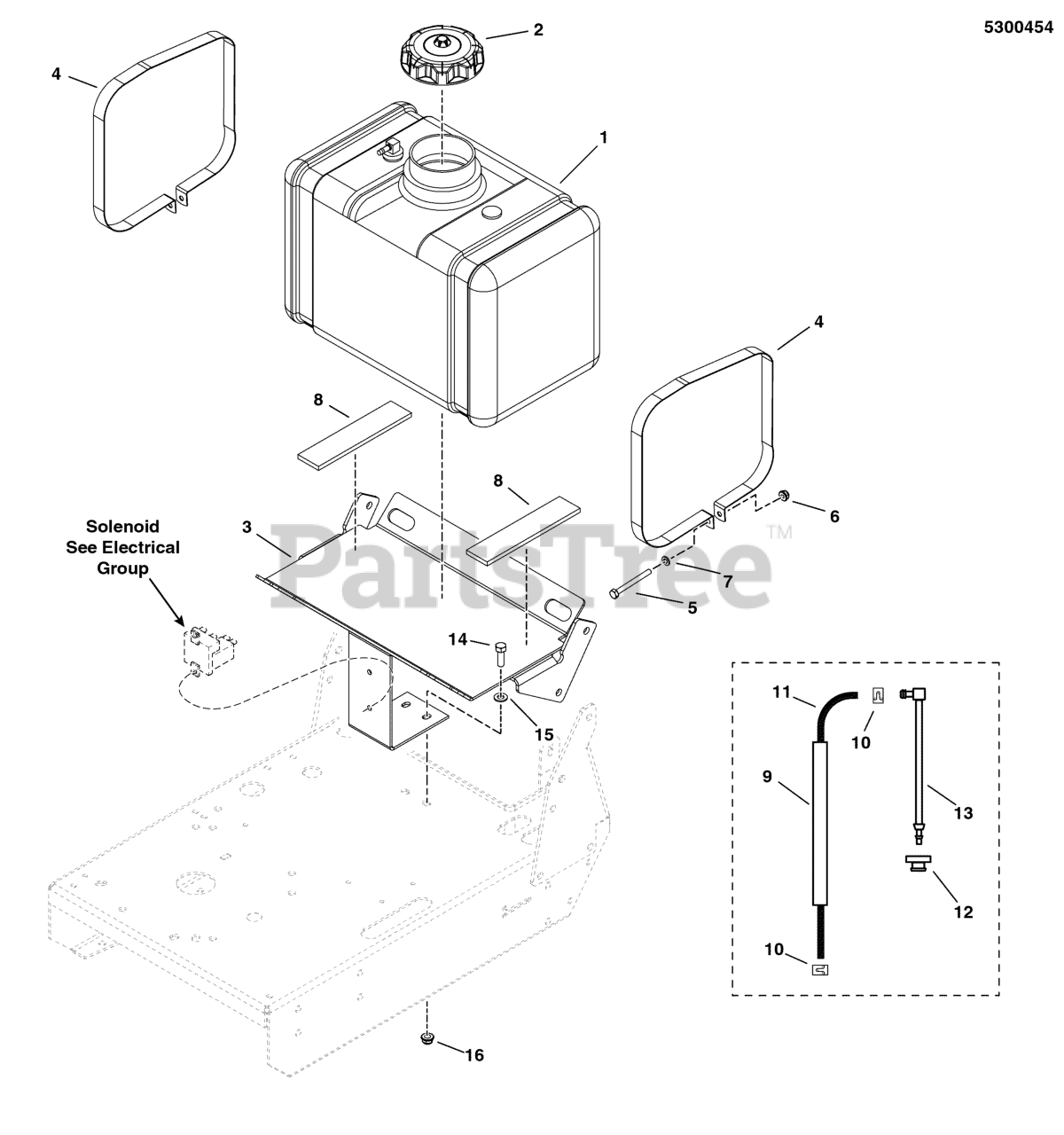

HydroCut (5900604) - Ferris HydroCut Series 32" Walk-Behind Mower, 13hp Kawasaki Fuel Tank & Mount Group - S/N: 2014433879 & Above Parts Diagram

HydroCut Series 32" Walk-Behind Mower, 13hp Kawasaki

Fuel Tank & Mount Group - S/N: 2014433879 & Above Parts Diagram

  • Title

1

Ferris 5102833

TANK, 5 GAL, W DROP TUBE/VENT
(Superseded to 5102833YP)

Note: (S/N: 2014985585 & Above)

$420.99

$

Usually ships in 2-12 days

0

1

Ferris 5102063

TANK, FUEL, PLASTIC, TOP DRAW, NO LOGO

Note: (S/N: 2014433879 - 2014985584)

$397.99

$

Usually ships in 2-12 days

0

2

Ferris 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$41.99

$

In Stock, only 2 left!

0

3

Ferris 5407443B

WELD, TANK MOUNT, HYDROCUT - RED

$

$

Currently unavailable

4

Ferris 5403445A

STRAP, FUEL TANK
(Superseded to 5403445AYP)

$23.99

$

Usually ships in 2-12 days

0

5

Ferris 5025010X10

BOLT, 1/4-20 X 1-1/4 GD5 CZ
(Superseded to 5025010X10SM)

$3.99

$

In Stock, Qty 7

0

6

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

7

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

8

Ferris 5100810

PAD, RUBBER MOUNT
(Superseded to 5100810YP)

$9.49

$

Usually ships in 2-12 days

0

9

Ferris 5050833X20

WIRE LOOM, 1/2 ID X 20 IN

$4.99

$

Usually ships in 2-12 days

0

10

Ferris 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

11

Ferris 5050831X25

HOSE, 1/4" FUEL, 25.00"
(Superseded to 5050831X25SM)

$21.99

$

Usually ships in 2-12 days

0

12

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, Qty 15

0

13

Ferris 5101261

PICKUP TUBE ASM, FUEL TANK, 8.0"

$35.99

$

Usually ships in 2-12 days

0

14

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 14

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5102833X1

GROMMET

Note: (Grommet for fuel tank 5102833)

$10.99

$

Usually ships in 2-12 days

0
