HydroCut (5900962) - Ferris HydroCut Series 32" Walk-Behind Mower, 16hp Kawasaki 32" Mower Deck - Frame, Caster & Shield Parts Diagram

HydroCut Series 32" Walk-Behind Mower, 16hp Kawasaki

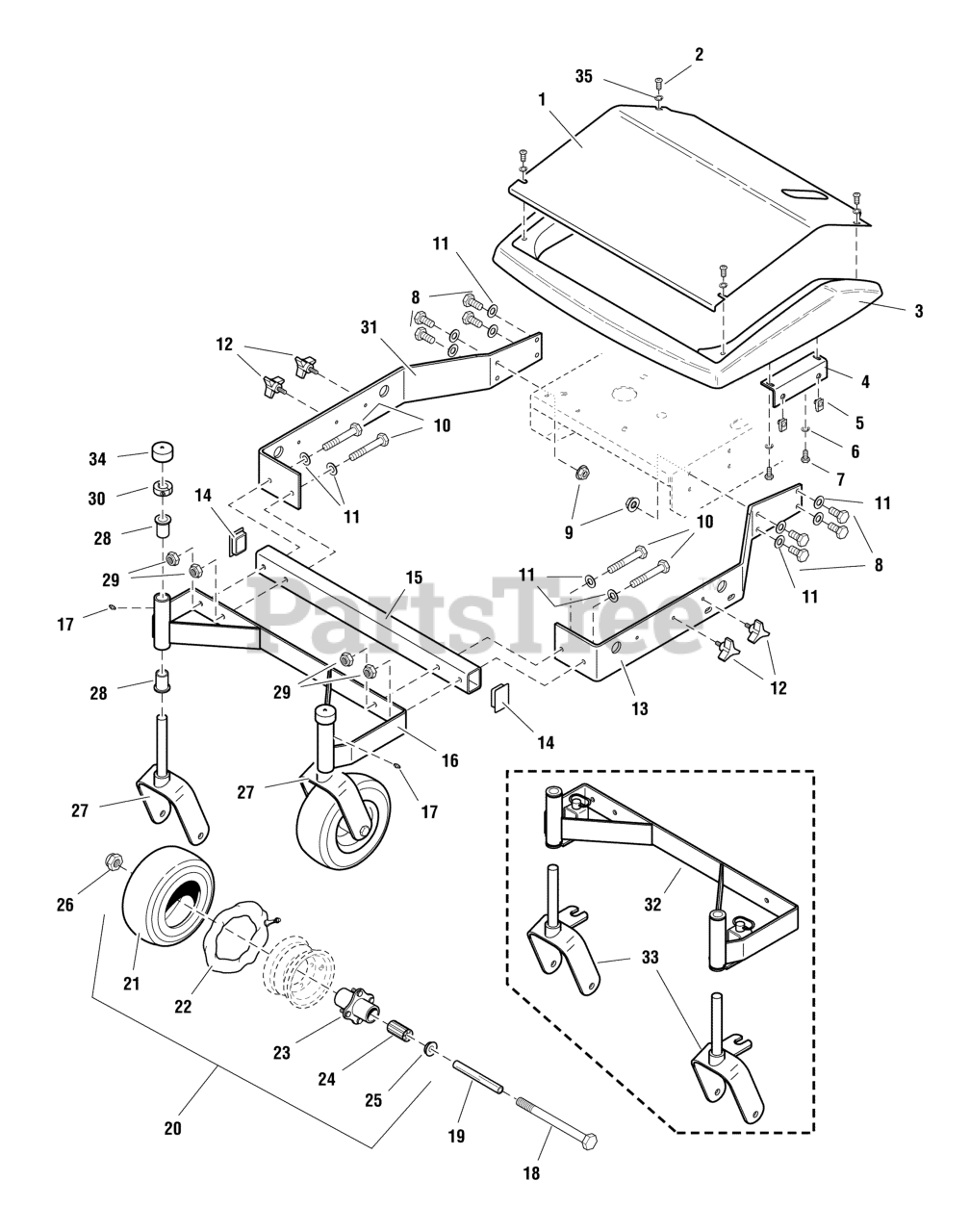

32" Mower Deck - Frame, Caster & Shield Parts Diagram

  • Title

1a

Ferris 5048145B

SHIELD INSERT

Note: (S/N: 2014433878 & Below)

$65.99

$

Usually ships in 2-12 days

0

1b

Ferris 5407385B

SHIELD INSERT

Note: (S/N: 2014433879 & Above)

$61.99

$

Usually ships in 2-12 days

0

2

Ferris 5025299X4

SCREW, Allen Head, 1/4-20 x 1/2
(Superseded to 5106469)

$2.99

$

In Stock, only 2 left!

0

3

Ferris 5048150

GUARD, MOWER HOUSING

$

$

Currently unavailable

4

Ferris 5048353B

SHIELD MOUNT BRACKET

$25.99

$

Usually ships in 2-12 days

0

5

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 4 left!

0

6

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$4.49

$

In Stock, Qty 18

0

7

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

8

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

9

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

10

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

11

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5102355

KNOB

$7.99

$

Usually ships in 2-12 days

0

13

Ferris 5047648B

FRAME RAIL - LH

$71.99

$

Usually ships in 2-12 days

0

14

Ferris 5022098

CAP, Plastic
(Superseded to 5022098SM)

$3.99

$

In Stock, Qty 13

0

15

Ferris 5048194B

CROSS TUBE

$44.99

$

Usually ships in 2-12 days

0

16

Ferris 5048969

ASSM, CASTER MOUNT

Note: (Includes Ref No. 17 & 28)

$

$

Currently unavailable

17

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$4.49

$

In Stock, only 1 left!

0

18

Ferris 5025017X44

BOLT, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$8.49

$

In Stock, only 2 left!

0

19

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$14.99

$

In Stock, only 1 left!

0

20

Ferris 5021181S

TIRE ASSM, 9 X 3.5 X 4, SILVER
(Superseded to 5021181SSM)

Note: (Includes Ref No. 21 - 25)

$103.99

$

In Stock, only 4 left!

0

21

Ferris 5021181X1

TIRE, Front, 9 x 3.5 x 4

$

$

Currently unavailable

22

Ferris 5021181X2

TUBE

$

$

Currently unavailable

23

Ferris 5021181SX3

HUB & BEARING ASSEMBLY, Complete, Silver
(Superseded to 5021181SX3SM)

Note: (Includes Ref No. 24 & 25)

$59.99

$

Usually ships in 2-12 days

0

24

Ferris 5021182

BEARING, ROLLER 3/4" ID X 3.25" (ONE PER TIRE)(SV)

Note: (1 per tire)

$

$

Currently unavailable

25

Ferris 5021043

RETAINER, Bearing

Note: (2 per tire)

$6.99

$

Usually ships in 2-12 days

0

26

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.99

$

In Stock, only 3 left!

0

27

Ferris 5048172B

CASTER YOKE

Note: (Use with Ref No. 16, part no. 48969)

$87.99

$

Usually ships in 2-12 days

0

28

Ferris 5020823

BUSHING, Flange
(Superseded to 5020823SM)

$11.99

$

In Stock, only 4 left!

0

29

Ferris 5025394

NUT, 3/8-16 Hex Nylon Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

30

Ferris 5010114

COLLAR, 3/4" Split
(Superseded to 5010114SM)

$20.99

$

Usually ships in 2-12 days

0

31

Ferris 5047649B

FRAME RAIL - RH

$68.99

$

Usually ships in 2-12 days

0

32

Ferris 5048968

CASTER MOUNT FRAME W/ LOCKS, Complete
(Superseded to 5048968DYP)

Note: (Includes Ref No. 17 & 28)

$455.99

$

Usually ships in 2-12 days

0

33

Ferris 5048965B

CASTER YOKE
(Superseded to 5048965BFS)

Note: (Use with Ref No. 32, part no. 48968)

$46.99

$

Usually ships in 2-12 days

0

34

Ferris 5023274

CAP,VINYL, 1.375 X 1
(Superseded to 5023274SM)

$5.99

$

Usually ships in 2-12 days

0

35

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0
