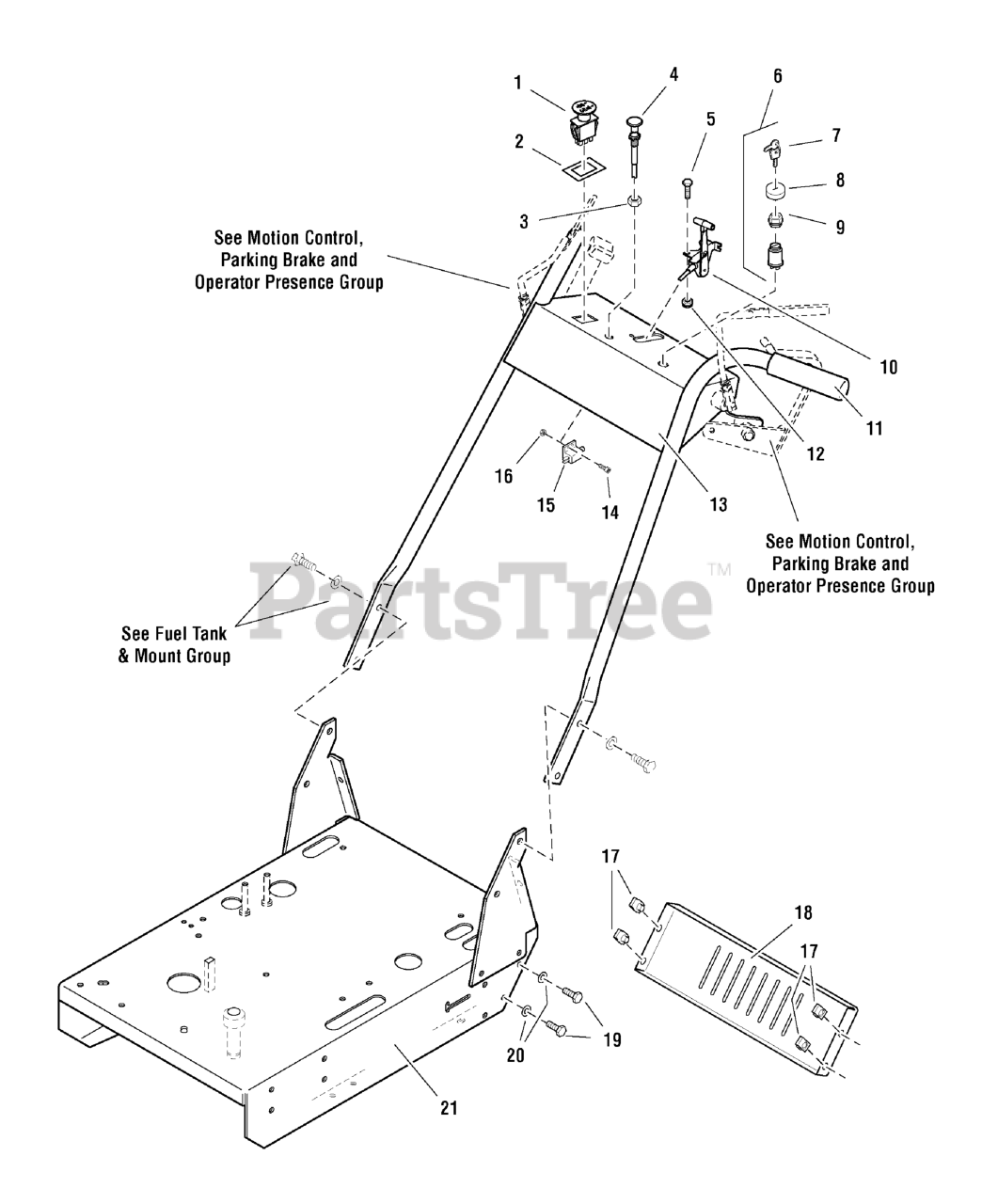

HydroCut (5901037) - Ferris HydroCut Series 32" Walk-Behind Mower, 13hp Kawasaki Engine Frame & Handle Bars Group - Manual Start Parts Diagram

HydroCut Series 32" Walk-Behind Mower, 13hp Kawasaki

Engine Frame & Handle Bars Group - Manual Start Parts Diagram

  • Title

1

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

2

Ferris 5022222

SWITCH RETAINER RING
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

3

Ferris 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5046501

CABLE, Choke Control, 47"
(Superseded to 5046501SM)

$55.99

$

Usually ships in 2-12 days

0

5

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

6

Ferris 5021842

SWITCH, Ignition, Complete
(Superseded to 5021842SM)

Note: (Includes Ref No. 7 - 9)

$37.99

$

In Stock, only 1 left!

0

7

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

8

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

9

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5047629

CABLE, Throttle Control, 46"
(Superseded to 5047629SM)

$62.99

$

Usually ships in 2-12 days

0

11

Ferris 5104659

GRIP, FOAM, .940" X 4.62" X .187"
(Superseded to 5104659FS)

$7.99

$

Usually ships in 2-12 days

0

12

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 11

0

13

Ferris 5600270

ASSM, WELD, HANDLE BAR, HC WITH DECALS

$

$

Currently unavailable

14

Ferris 5025179X4

SCREW, #10-24 x 1/2

$

$

Currently unavailable

15

Ferris 5021769

SWITCH, PLUNGER, N.C.
(Superseded to 5021769SM)

$14.99

$

In Stock, only 1 left!

0

16

Ferris 5025079

NUT, #10-24 HEX
(Superseded to 703895)

$4.49

$

In Stock, Qty 8

0

17

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

18

Ferris 5047735B

REAR SHIELD

$21.99

$

Usually ships in 2-12 days

0

19

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

20

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Ferris 5048230B

ENGINE DECK ASSEMBLY

$273.99

$

Usually ships in 2-12 days

0
