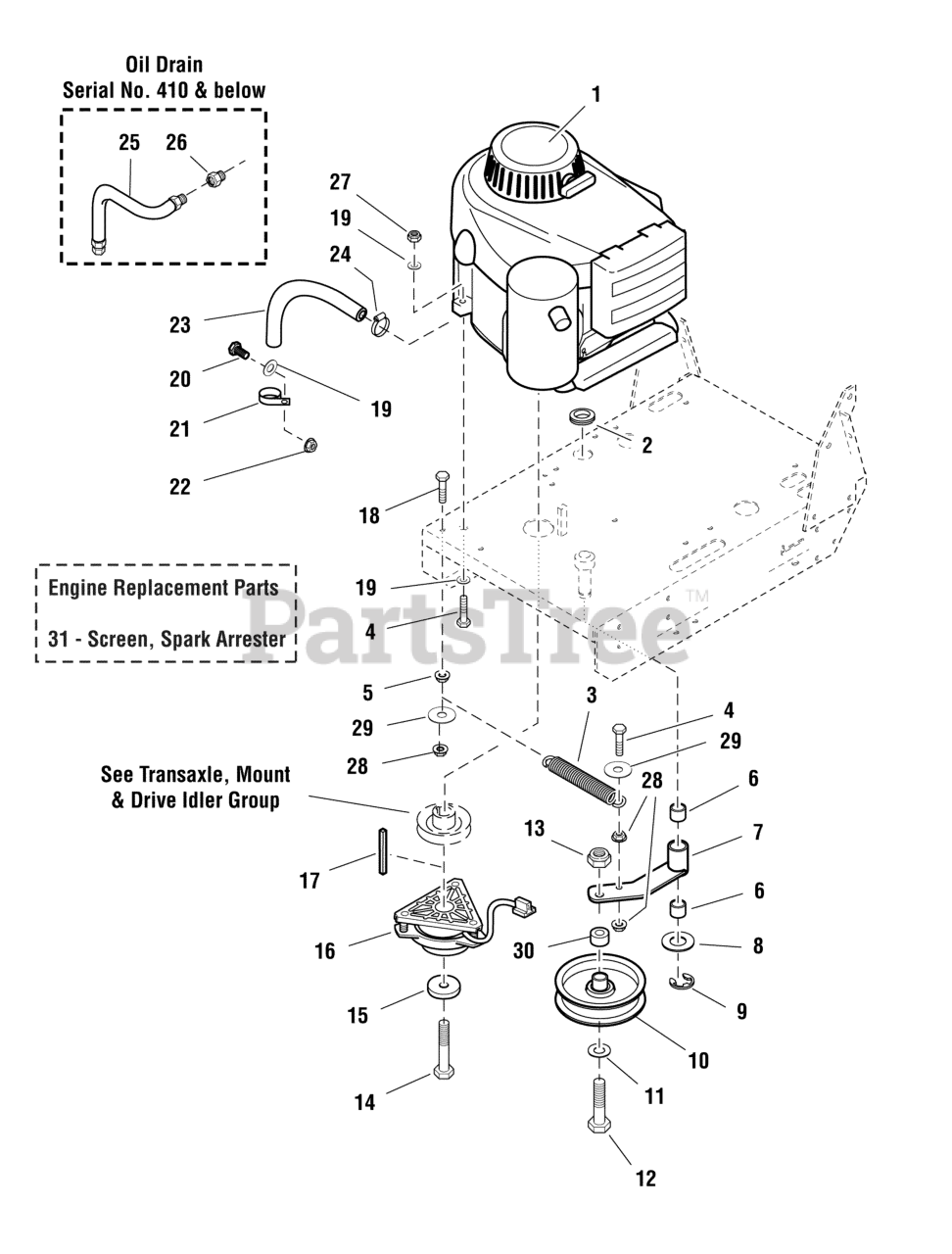

HydroCut (5901037) - Ferris HydroCut Series 32" Walk-Behind Mower, 13hp Kawasaki Engine, PTO & Deck Drive Idler Group - 13HP/32" - Manual Parts Diagram

HydroCut Series 32" Walk-Behind Mower, 13hp Kawasaki

Engine, PTO & Deck Drive Idler Group - 13HP/32" - Manual Parts Diagram

  • Title

1

ENGINE, 13HP Kawasaki (Model FH381V)

$

$

Not available

1

Ferris 5021178X3

FUEL FILTER
(Superseded to 5021178X3FS)

$12.99

$

Usually ships in 2-12 days

0

1

Ferris 5021334X1

OIL FILTER (49065-2078)
(Superseded to 5213341SM)

$

$

Not available

1

PRE-CLEANER (11013-7016)

$

$

Not available

1

AIR FILTER (11013-7017)

$

$

Not available

1

MUFFLER (49070-7002)

$

$

Not available

1

EXHAUST MANIFOLD (18088-7001)

$

$

Not available

1

MANIFOLD HEAT SHIELD (13271-7022)

$

$

Not available

1

EXHAUST MANIFOLD GASKET (11060-7021)

$

$

Not available

1

RECOIL ASSEMBLY, Complete (49088-7001)

$

$

Not available

2

Ferris 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

3

Ferris 5021103

SPRING, Extension
(Superseded to 5021103SM)

$19.99

$

Usually ships in 2-12 days

0

4

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

6

Ferris 5020876B

BUSHING, BRASS, 3/4 X 1 X 1
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

7

Ferris 5047661B

DECK DRIVE IDLER ARM

$20.99

$

Usually ships in 2-12 days

0

8

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5021369

IDLER PULLEY
(Superseded to 5021369SM)

$73.99

$

Usually ships in 2-12 days

0

11

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

12

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, only 2 left!

0

13

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

14

Ferris 5047632

BOLT, CRANKSHAFT, 7/16"X2.75
(Superseded to 5102865)

$5.49

$

In Stock, only 1 left!

0

15

Ferris 5042132

SPACER, .45 x 1.62 x .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

16

Ferris 1757359

CLUTCH, OGURA, 74 ft lbs - 1"
(Superseded to 1757359YP)

Note: (For model S/N: 2016545302 & Below, key is needed unless replacing clutch)

$290.99

$

In Stock, only 1 left!

0

17

Ferris 5050407X3

KEY, 1/4 SQ. X 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

18

Ferris 5025011X16

BOLT, 5/16-18 X 2" GD5 YZ
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

20

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

21

Ferris 5023173

CLAMP
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 9

0

23

Ferris 5050857X10P5

HOSE, 10-1/2"

$

$

Not available

24

Ferris 5021392

CLAMP, #6 HOSE, STAINLESS
(Superseded to 5021392SM)

$4.99

$

In Stock, only 2 left!

0

25

Ferris 5048681

OIL DRAIN HOSE
(Superseded to 5048681SM)

Note: (S/N: 101-410)

$18.99

$

In Stock, only 1 left!

0

26

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

Note: (S/N: 101-410)

$15.99

$

Usually ships in 2-12 days

0

27

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5025392

NUT, 5/16-18 Hex Nylon Flange
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

29

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

30

Ferris 5044609

SPACER, .52 x 1.00 x .38
(Superseded to 5044609SM)

$6.49

$

Usually ships in 2-12 days

0

31

Ferris 5101677

SCREEN, SPARK ARRESTER-KAWI 13, 17, 19HP

$26.99

$

Usually ships in 2-12 days

0
