HydroDrive (5900806) - Ferris HydroDrive Series 48" Walk-Behind Mower, 16hp 48" Mower Deck - Belts, Pulleys & Idler Arm Parts Diagram

HydroDrive Series 48" Walk-Behind Mower, 16hp

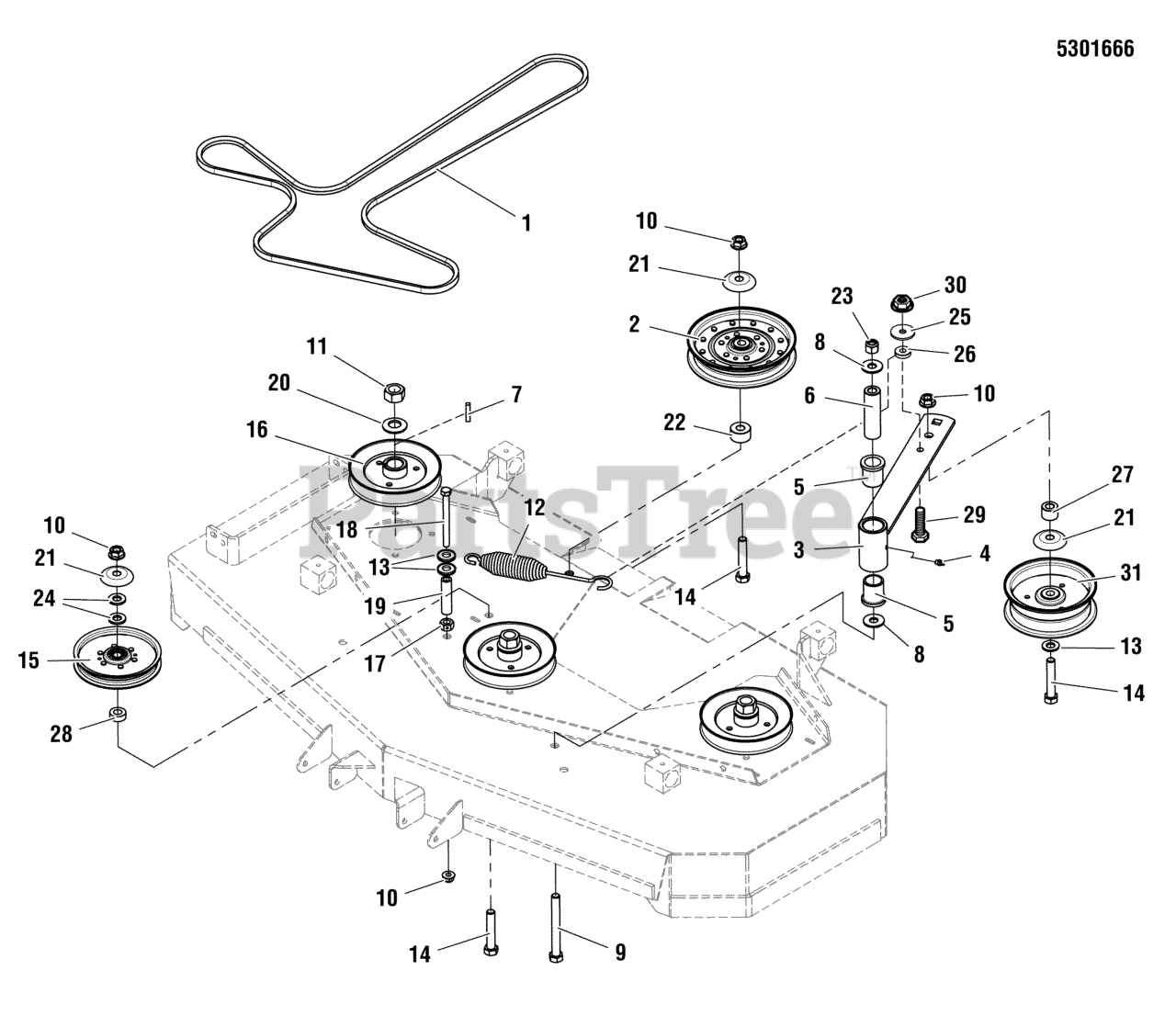

48" Mower Deck - Belts, Pulleys & Idler Arm Parts Diagram

  • Title

1

Ferris 5021650

BELT,# 7-5335
(Superseded to 5021650FS)

$89.99

$

In Stock, only 3 left!

0

2

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

3

Ferris 5061305B

WELD, IDLER ARM - RED

$80.99

$

Usually ships in 2-12 days

0

4

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$4.49

$

Usually ships in 2-12 days

0

5

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$10.99

$

In Stock, Qty 20+

0

6

Ferris 5061339

SPACER, .52 X 1.00 X 3.42
(Superseded to 5061339SM)

$14.99

$

Usually ships in 2-12 days

0

7

Ferris 5050407X10

KEY, 1/4 SQ. X 1-1/4
(Superseded to 5050407X10YP)

$4.49

$

In Stock, Qty 12

0

8

Ferris 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$4.49

$

In Stock, only 1 left!

0

9

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 2 left!

0

10

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 6

0

11

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 8

0

12

Ferris 5100632

SPRING, EXTENSION, SWIVEL
(Superseded to 5100632YP)

$40.99

$

In Stock, only 4 left!

0

13

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$4.49

$

In Stock, Qty 20+

0

14

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 5

0

15

Ferris 5023264

PULLEY, FLAT IDLER, 5.0 X .75

$49.99

$

Usually ships in 2-12 days

0

16

Ferris 5023175

PULLEY, 5.540OB X .985ID, SINGLE B-SEC
(Superseded to 5023175SM)

$68.99

$

In Stock, only 2 left!

0

17

Ferris 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$8.49

$

Usually ships in 2-12 days

0

18

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 2 left!

0

19

Ferris 5050857X2P25

HOSE, 1/2" PUSH-ON 2.25"
(Superseded to 5050857X2P25FS)

$5.99

$

Usually ships in 2-12 days

0

20

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

22

Ferris 5047142

SPACER, .52 X 1.25 X .70
(Superseded to 5047142SM)

$9.49

$

In Stock, only 1 left!

0

23

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.99

$

Usually ships in 2-12 days

0

24

Ferris 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, Qty 18

0

25

Ferris 5100548

WASHER, .390 X 1.50 X .109 YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 2 left!

0

26

Ferris 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.99

$

In Stock, Qty 6

0

27

Ferris 5045178

SPACER, .52 X 1.00 X .75
(Superseded to 5045178SM)

$7.99

$

In Stock, only 2 left!

0

28

Ferris 5044609

SPACER, .52 X 1.00 X .38
(Superseded to 5044609SM)

$6.99

$

Usually ships in 2-12 days

0

29

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

30

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

31

Ferris 5101312

PULLEY, IDLER, 5.00 WIDE W/ .51 BC
(Superseded to 5101312FS)

$72.99

$

Usually ships in 2-12 days

0
