HydroDrive (5900806) - Ferris HydroDrive Series 48" Walk-Behind Mower, 16hp 48" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

HydroDrive Series 48" Walk-Behind Mower, 16hp

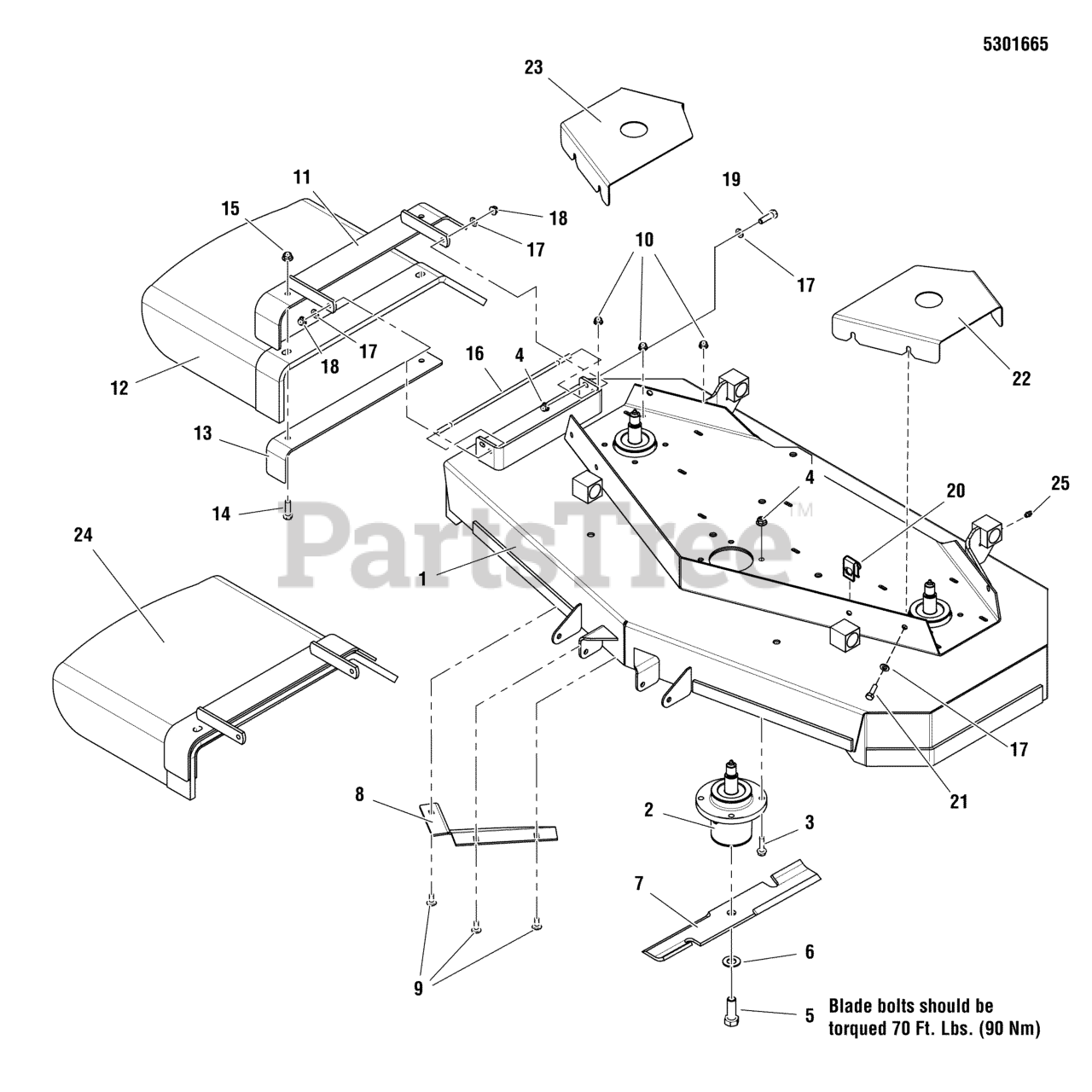

48" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Ferris 5600298

DECK SHELL W/ DECALS, 48" - HD1648

Note: (Includes Safety Decals)

$1709.99

$

Usually ships in 2-12 days

0

2

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

3

Ferris 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$4.49

$

In Stock, Qty 7

0

4

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

6

Ferris 5025159

WASHER, 5/8 USS

$

$

Currently unavailable

7

Ferris 5020843S

BLADE SET, 48 DECK (SET OF 3 BLADES)
(Superseded to 5101986S)

$

$

Not available

8

Ferris 5401271A

WELD, DISCHARGE BAFFLE, 48" - BLK

$

$

Currently unavailable

9

Ferris 5025145X6

BOLT, 5/16-18 X 3/4", CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

10

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$52.99

$

Usually ships in 2-12 days

0

12

Ferris 5402404

CHUTE, DISCHARGE, RUBBER, BENT, 44/48/52 (SV)
(Superseded to 5402404FS)

$148.99

$

Usually ships in 2-12 days

0

13

Ferris 5402362A

SUPPORT, DISCHARGE CHUTE, 44/48/52 - BLK
(Superseded to 5402362AFS)

$37.99

$

Usually ships in 2-12 days

0

14

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

16

Ferris 5042555

ROD, BRAKE LINKAGE
(Superseded to 5042555SM)

$11.99

$

In Stock, only 3 left!

0

17

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

18

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 15

0

19

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

20

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

21

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

22

Ferris 5403661B

GUARD, DECK, 48, HD1648, LH - RED

$29.99

$

Usually ships in 2-12 days

0

23

Ferris 5403660B

GUARD, DECK, 48, HD1648, RH - RED

$29.99

$

Usually ships in 2-12 days

0

24

Ferris 5600132

KIT, DISCHARGE CHUTE, 44/48/52

Note: (INCLUDES REF NOS 11 - 15)

$

$

Not available

25

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$4.49

$

Usually ships in 2-12 days

0
