HydroDrive (5900806) - Ferris HydroDrive Series 48" Walk-Behind Mower, 16hp Handle Bar and Instrument Control Group Parts Diagram

HydroDrive Series 48" Walk-Behind Mower, 16hp

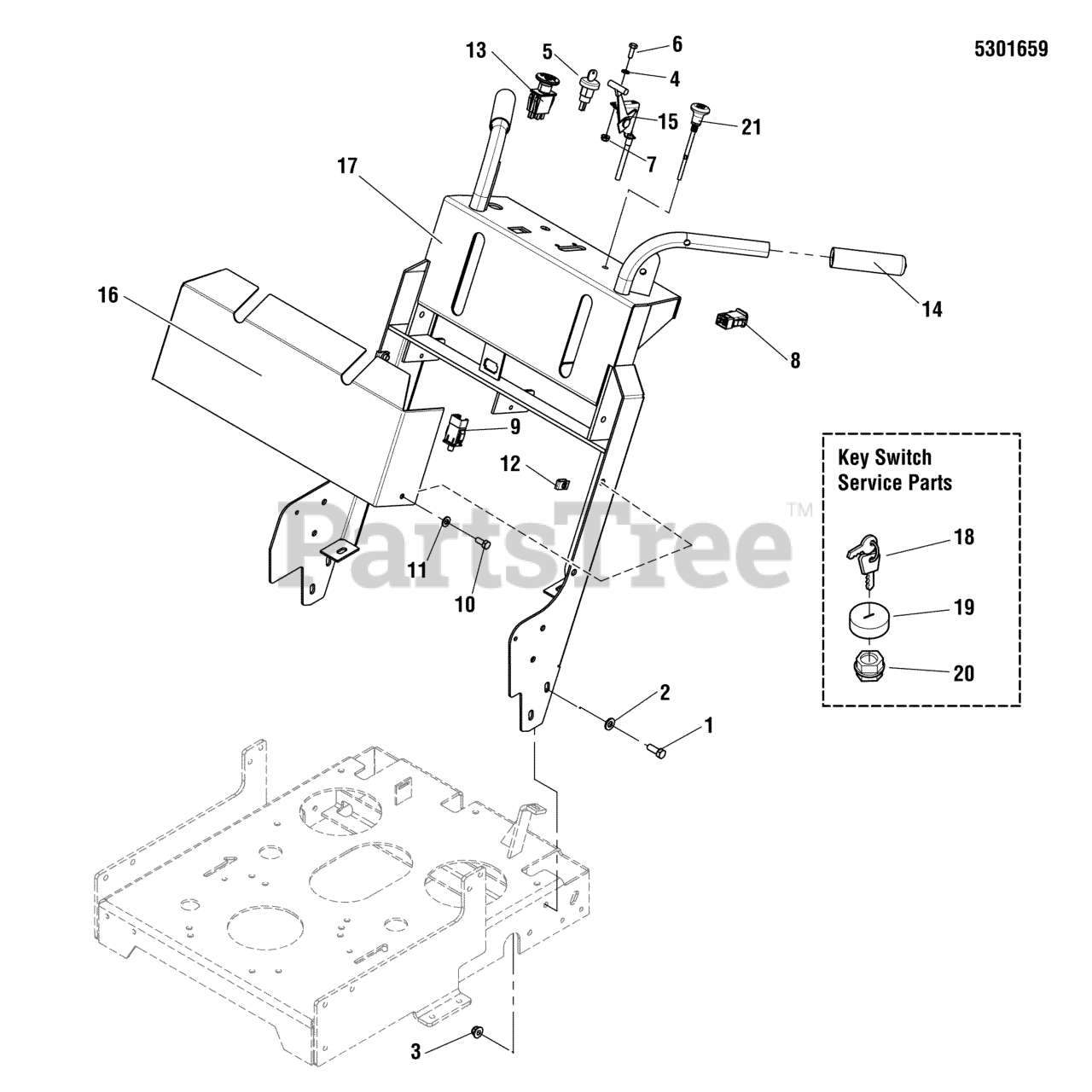

Handle Bar and Instrument Control Group Parts Diagram

  • Title

1

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

2

Ferris 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$4.49

$

In Stock, Qty 8

0

3

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

4

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

5

Ferris 5021842

SWITCH, IGNITION, 2 POST
(Superseded to 5021842SM)

Note: (Includes Ref Nos 18 - 20)

$39.99

$

Usually ships in 2-12 days

0

6

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

7

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

8

Ferris 5101280

SWITCH, PLUNGER, NO/NC SNAP-IN, LOW PROFILE
(Superseded to 5101280YP)

$32.99

$

Usually ships in 2-12 days

0

9

Ferris 5101216

SWITCH, PLUNGER, NC, SINGLE POLE SNAP-IN

$15.99

$

Usually ships in 2-12 days

0

10

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

11

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

12

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 4 left!

0

13

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$35.99

$

In Stock, Qty 20+

0

14

Ferris 5104659

GRIP, FOAM, .940" X 4.62" X .187"
(Superseded to 5104659FS)

$7.99

$

Usually ships in 2-12 days

0

15

Ferris 5101213

CABLE, THROTTLE, 54"

$33.99

$

Usually ships in 2-12 days

0

16

Ferris 5600278

HANDLE BAR COVER W/ DECALS, HD1648

$136.99

$

Usually ships in 2-12 days

0

17a

Ferris 5600475

HANDLE BAR W/ DECALS, HD1648

Note: (S/N: 2014582799 & ABOVE)

$918.99

$

Usually ships in 2-12 days

0

17b

Ferris 5600297

HANDLE BAR W/ DECALS, HD1648

Note: (S/N: 2014582798 & BELOW)

$712.99

$

Usually ships in 2-12 days

0

18

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

19

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.99

$

In Stock, Qty 6

0

20

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 2 left!

0

21

Ferris 5047912

CABLE, CHOKE CONTROL, 56"
(Superseded to 5047912FS)

$59.99

$

Usually ships in 2-12 days

0
