HZ 15420 KVE (82370) - Snapper Yard Cruiser 42" Zero-Turn Mower, 15hp Fender & Transaxle Assembly Parts Diagram

Yard Cruiser 42" Zero-Turn Mower, 15hp

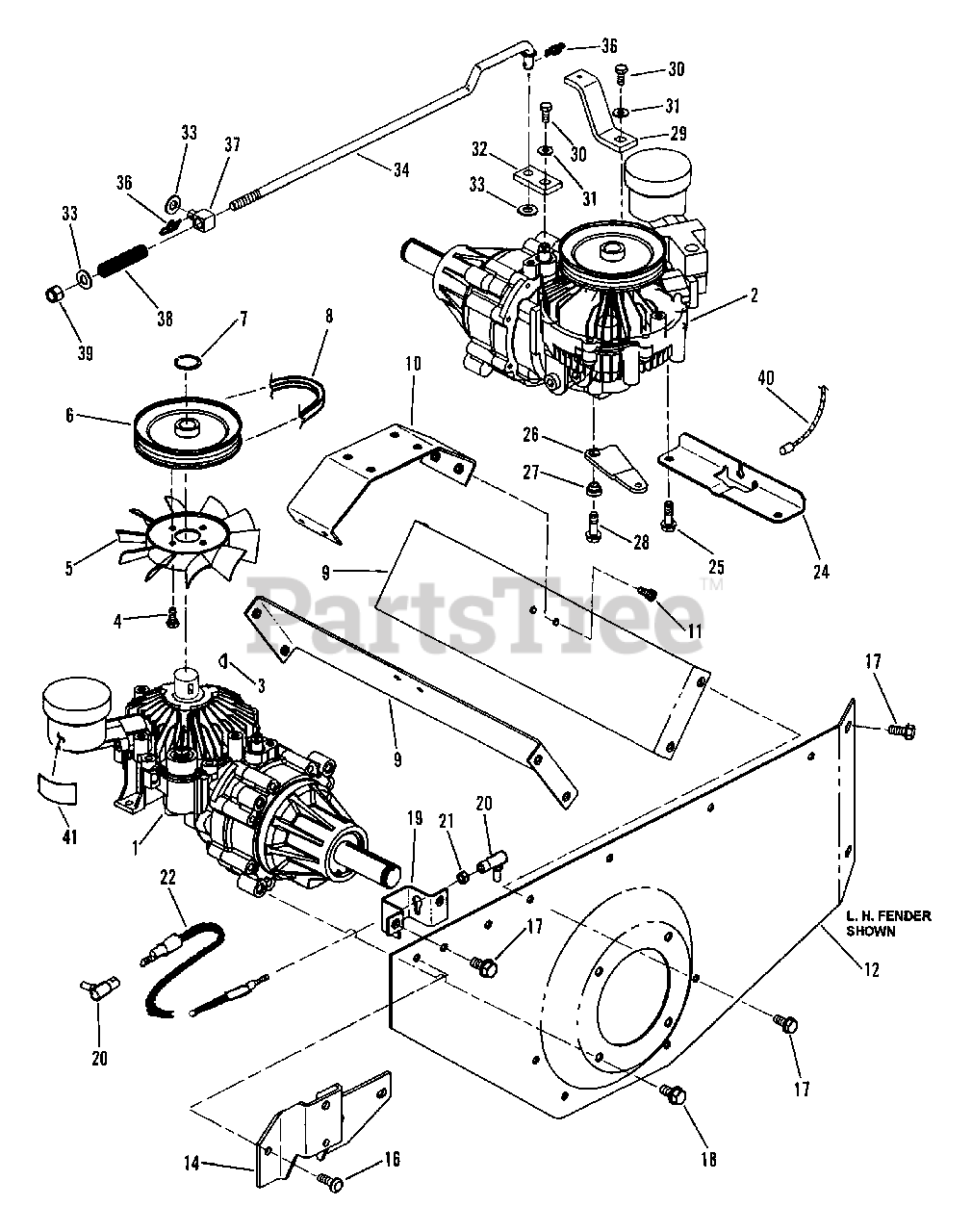

Fender & Transaxle Assembly Parts Diagram

  • Title

1

Snapper 7029128

TRANSAXLE, Hydro L.H. (Eaton Model X778-005)

$

$

Not available

2

Snapper 7029129

TRANSAXLE, Hydro w/o Manifold R.H. (Eaton Model X778-011)
(Superseded to 7029129YP)

$1034.99

$

Usually ships in 2-12 days

0

3

Snapper 7015894

KEY, #605 Woodruff
(Superseded to 7015894SM)

$3.99

$

In Stock, only 4 left!

0

4

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 11

0

5

Snapper 7035337

FAN, 6" O.D., 10 Blade
(Superseded to 7035337YP)

$26.99

$

In Stock, only 3 left!

0

6

Snapper 7035336

PULLEY, Hydro Input
(Superseded to 7035336YP)

$62.99

$

In Stock, only 2 left!

0

7

Snapper 7091771

RING, Retaining

$3.49

$

In Stock, only 4 left!

0

8

Snapper 7029118

V-BELT, Hydro Drive
(Superseded to 7029118YP)

$37.99

$

In Stock, only 2 left!

0

9

Snapper 7034915

BRACKET, Fender Support
(Superseded to 7034915YP)

$40.99

$

Usually ships in 2-12 days

0

10

Snapper 7034916

BRACKET, Hydro Support
(Superseded to 7034916YP)

$49.99

$

Usually ships in 2-12 days

0

11

Snapper 7091819

SCREW, 1/4-20 Hex Washer Head, Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 11

0

12

Snapper 7034909

FENDER, L.H,

$

$

Not available

13

Snapper 7034908

FENDER, R.H.
(Superseded to 7034908YP)

Note: (Not Shown)

$196.99

$

Usually ships in 2-12 days

0

14

Snapper 7034917

BRACKET, Deck Support L.H.

$

$

Not available

15

Snapper 7035424

BRACKET, Deck Support R.H.

Note: (Not Shown)

$

$

Not available

16

Snapper 7091000

SCREW, 5/16-18 x 7/8" Pan Head, Self-Tapping
(Superseded to 1960086SM)

$5.49

$

In Stock, only 2 left!

0

17

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Head, Self-Tapping
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Head, Self-Tapping
(Superseded to 704000)

$5.49

$

In Stock, Qty 13

0

19

Snapper 7034922

BRACKET, Hydro Control Cable
(Superseded to 7034922YP)

$

$

Not available

20

Snapper 7029147

ROD END, #10-32 w/Stud
(Superseded to 7029147YP)

$46.99

$

Usually ships in 2-12 days

0

21

Snapper 7091801

NUT, #10-32 Hex Center Lock
(Superseded to 7091801YP)

$2.99

$

Usually ships in 2-12 days

0

22

Snapper 7029170

CABLE, L.H. Hydraulic Control (45.5")
(Superseded to 7029170YP)

$151.99

$

Usually ships in 2-12 days

0

23

Snapper 7029169

CABLE, R.H. Hydraulic Control (35")
(Superseded to 7029169YP)

Note: (Not Shown)

$125.99

$

In Stock, only 1 left!

0

24

Snapper 7039484

BRACKET, Hydro Release Cable
(Superseded to 7039484YP)

$26.99

$

Usually ships in 2-12 days

0

25

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 14

0

26

Snapper 7039483

BRACKET, Hydro Release Actuator
(Superseded to 7039483YP)

$29.99

$

Usually ships in 2-12 days

0

27

Snapper 7012114

BUSHING,
(Superseded to 7012114SM)

$5.49

$

In Stock, Qty 5

0

28

Snapper 7091841

SCREW, 5/16-18 x 1" Hex Washer Head, Self-Tapping
(Superseded to 7091841SM)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper 7034913

ARM, Brake
(Superseded to 7034913YP)

$30.99

$

Usually ships in 2-12 days

0

30

Snapper 7091165

BOLT, 1/4-28 x 5/8" Hex Head, Grade 8
(Superseded to 7091165YP)

$2.99

$

Usually ships in 2-12 days

0

31

Snapper 7090746

WASHER, 1/4 Belleville
(Superseded to 7090746YP)

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 7034914

ARM, Brake
(Superseded to 7034914YP)

$15.99

$

Usually ships in 2-12 days

0

33

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7029284

ROD, R.H.Brake
(Superseded to 7029284YP)

$79.99

$

Usually ships in 2-12 days

0

35

Snapper 7029142

ROD, L.H. Brake
(Superseded to 7029142YP)

Note: (Not Shown)

$20.99

$

Usually ships in 2-12 days

0

36

Snapper 7091593

COTTER-PIN, 3/8 Self-Locking
(Superseded to 703355)

$3.99

$

In Stock, Qty 8

0

37

Snapper 7024586

LINK, Swivel Brake
(Superseded to 7024586YP)

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 7028091

SPRING, Brake Compression
(Superseded to 7028091YP)

$3.49

$

Usually ships in 2-12 days

0

39

Snapper 7091299

NUT, 3/8-16 Nyloc
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

40

Snapper 7039485

CABLE, Hydro Release Valve
(Superseded to 7039485YP)

$

$

Not available

41

Snapper 7044767

DECAL, Hydro Reservoir

$

$

Currently unavailable
