HZS 15421 KVE (82547) - Snapper Yard Cruiser 42" Zero-Turn Mower, 15hp Mower Deck Assembly (Part 3) Parts Diagram

Yard Cruiser 42" Zero-Turn Mower, 15hp

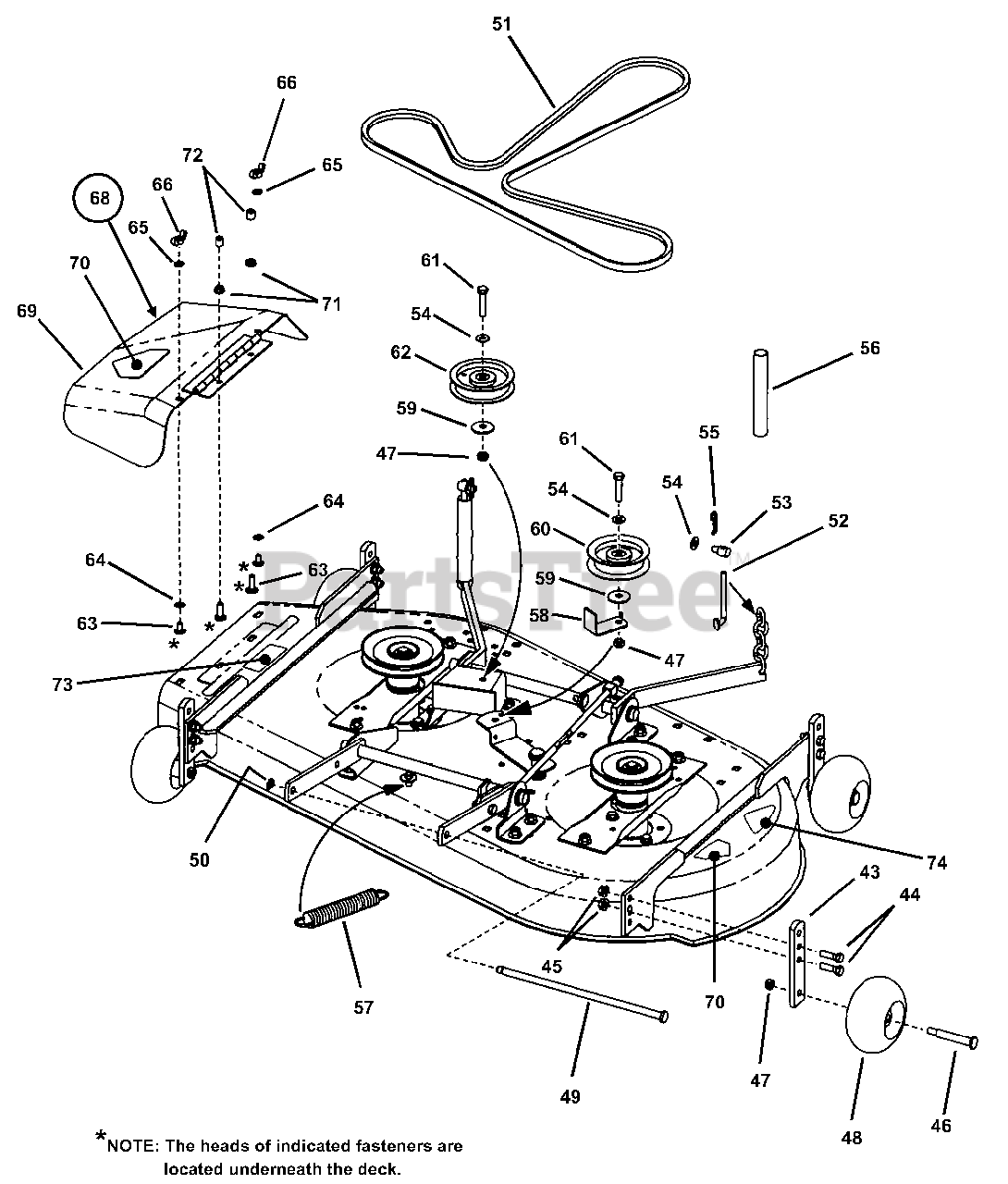

Mower Deck Assembly (Part 3) Parts Diagram

  • Title

43

Snapper 7035835

POST, Anti-Scalp
(Superseded to 7035835SM)

$20.99

$

In Stock, only 2 left!

0

44

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

45

Snapper 7091619

NUT, 3/8-16 Hex Flange
(Superseded to 703333)

Note: This item is the same as 9-0613 (Item 4 of Part 1) except for the finish.

$4.99

$

In Stock, Qty 20+

0

46

Snapper 7029265

BOLT, 3/8-16 x 2-58" Shoulder
(Superseded to 7029265SM)

$10.99

$

In Stock, Qty 6

0

47

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

48

Snapper 7029264

GAUGE WHEEL
(Superseded to 7029264YP)

$14.99

$

In Stock, Qty 9

0

49

Snapper 7022717

ROD, Deck Support
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

50

Snapper 7017847

RING, 7/16" External Retaining
(Superseded to 7017847YP)

$4.49

$

In Stock, only 1 left!

0

51

Snapper 7075235

BELT, HA, 94.5" Effective Length
(Superseded to 7075235YP)

$64.99

$

In Stock, only 2 left!

0

52

Snapper 7028728

ADJUSTER, Chain
(Superseded to 703827)

$10.99

$

In Stock, Qty 6

0

53

Snapper 7028200

SWIVEL, Adjustable
(Superseded to 7028200SM)

$13.99

$

In Stock, only 1 left!

0

54

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

55

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

56

Snapper 7028021

COVER, Chain

$

$

Not available

57

Snapper 7035969

SPRING, External
(Superseded to 7035969SM)

$20.99

$

In Stock, only 1 left!

0

58

Snapper 7036561

GUIDE, 38"/42" Idler Belt

$

$

Not available

59

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, Qty 20+

0

60

Snapper 7075707

IDLER, 4" Outside Diameter, Flat
(Superseded to 7075707YP)

Note: Was 27717

$37.99

$

In Stock, Qty 8

0

61

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

62

Snapper 7018574

IDLER, 4.12" Outside Diameter, Flat
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 7

0

63

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

64

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

65

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

66

Snapper 7091537

NUT, 5/16-18 Wing Lock
(Superseded to 7091537YP)

$4.49

$

In Stock, Qty 13

0

?67

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, Grade 5
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

68

Snapper 7051401

ASSEMBLY, Chute & Decal
(Superseded to 7051401YP)

Note: (Includes 69 & 70)

$159.99

$

In Stock, only 1 left!

0

69

Snapper 7051401

CHUTE, Side (weldment)
(Superseded to 7051401YP)

Note: Was 40497

$159.99

$

In Stock, only 1 left!

0

70

Snapper 7013010

DECAL, CPSC Heavy Adhesive
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 20+

0

71

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

72

Snapper 7023606

CAP, Vinyl
(Superseded to 7023606YP)

$3.99

$

In Stock, only 2 left!

0

73

Snapper 7046720

DECAL, Chute/Deflector
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

74

Snapper 7024910

DECAL, 42 Inch

$

$

Not available

Snapper 7054315

42" Deck Assembly

Note: Includes items 1 thru 74 except for items 49, 50, 54 & 56.

$

$

Not available
