HZS 15422 KVE (84308) - Snapper Yard Cruiser 42" Zero-Turn Mower, 15hp Clutch Assembly Parts Diagram

Yard Cruiser 42" Zero-Turn Mower, 15hp

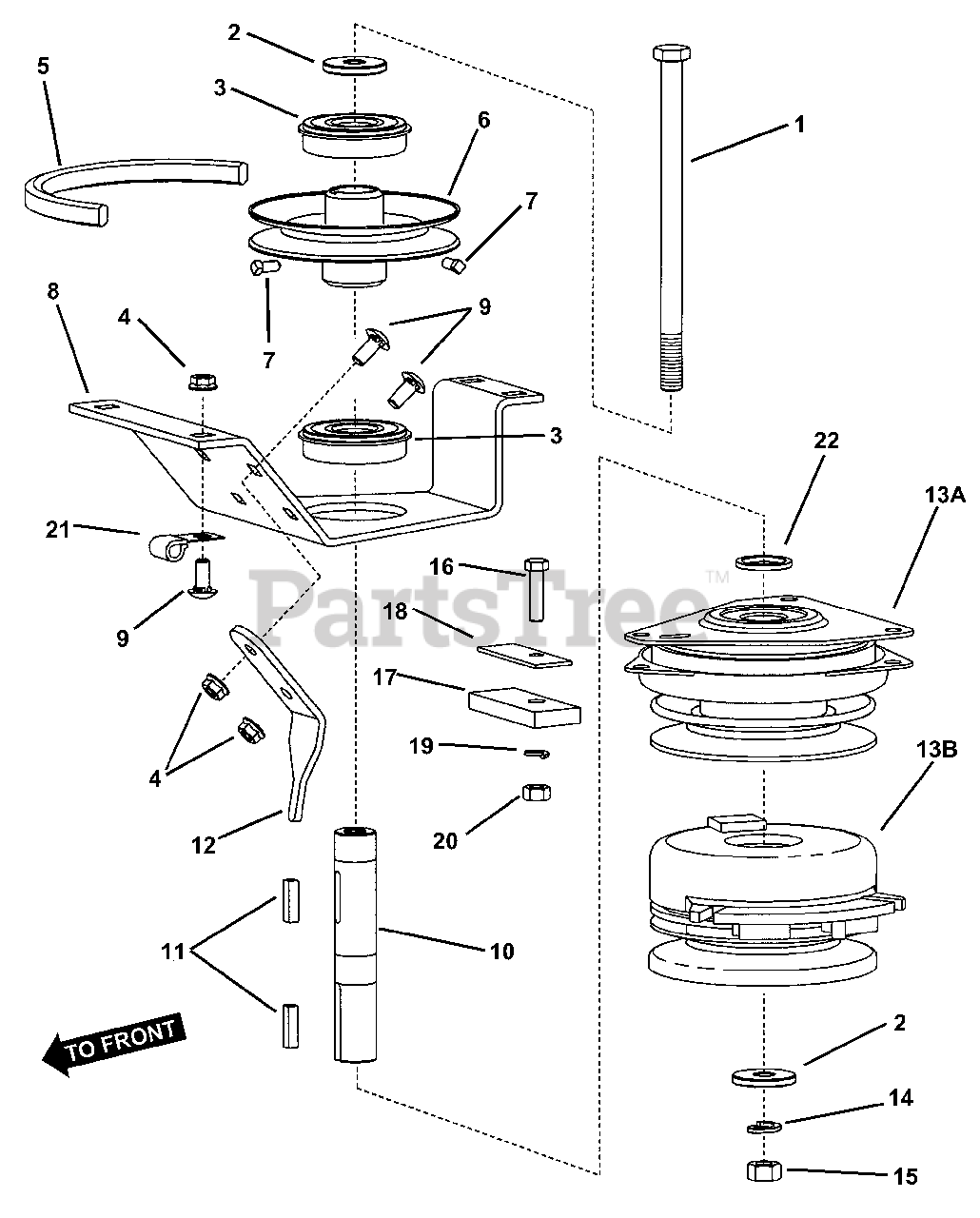

Clutch Assembly Parts Diagram

  • Title

1

Snapper 7091735

SCREW, 7/16-20 x 8" Hex Head Cap

$9.49

$

Usually ships in 2-12 days

0

2

Snapper 7029138

WASHER, 7/16 x 1" O.D. Flat
(Superseded to 704053)

$9.99

$

In Stock, only 2 left!

0

3

Snapper 7029136

BEARING, 6305 w/Snap-Ring
(Superseded to 7029136YP)

$

$

Not available

4

Snapper 7091601

NUT, 5/16-18, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7029117

V-BELT, 5L Cogged 50.170" effective length
(Superseded to 7029117YP)

$54.99

$

In Stock, only 1 left!

0

5

Snapper 7046997

V-BELT, 5L Cogged 49.44" effective length (48" Model)
(Superseded to 7046997YP)

$49.99

$

In Stock, Qty 8

0

6

Snapper 7029107

PULLEY, Jackshaft
(Superseded to 7029107YP)

$74.99

$

In Stock, only 1 left!

0

6

Snapper 7046892

PULLEY, Jackstaff (48" Model)
(Superseded to 7046892YP)

$69.99

$

Usually ships in 2-12 days

0

7

Snapper 7091829

SETSCREW, 1/4-20 x 1/2" w/Patch
(Superseded to 703139)

$3.49

$

In Stock, only 2 left!

0

8

Snapper 7063269

SUPPORT, Jackshaft
(Superseded to 7063269YP)

$68.99

$

Usually ships in 2-12 days

0

9

Snapper 7091508

BOLT, 5/16-18 x 3/4 Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7029135

JACKSHAFT
(Superseded to 7029135YP)

$68.99

$

Usually ships in 2-12 days

0

11

Snapper 7013250

KEY, 1/4 x 1" Square
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7074572

BRACKET, Anti-Rotate

$

$

Not available

13A

Snapper 7029232

CLUTCH, Electric (Ogura) (12 V, 4 OHM)
(Superseded to 5023100SM)

$535.99

$

Usually ships in 2-12 days

0

13B

Snapper 7053740

CLUTCH, Electric (Warner) (12V, 3.3 AMP, 3.5 OHM)

$

$

Not available

14

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

15

Snapper 7090460

NUT, 7/16-20 Hex, Grade B
(Superseded to 7090460SM)

$2.49

$

Usually ships in 2-12 days

0

16

Snapper 7091527

SCREW, 5/16-18 x 1-1/4", Hex Head Cap, Grade 5
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

17

Snapper 7029704

BUMPER, Electric Clutch
(Superseded to 7029704YP)

$23.99

$

Usually ships in 2-12 days

0

18

Snapper 7034448

WASHER, Rectangular Steel
(Superseded to 7034448YP)

$33.99

$

Usually ships in 2-12 days

0

19

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7091511

NUT, 5/16-18, Grade 5
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7012652

CLIP, Wire, 7/16
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7029137

WASHER (Ogura Clutch) (.125" thick)
(Superseded to 7029137YP)

$5.49

$

In Stock, only 4 left!

0

22

Snapper 7035841

WASHER (Warner Clutch) (.750" thick)

$12.99

$

Usually ships in 2-12 days

0
