HZS 15423 KVE (84735) - Snapper Yard Cruiser 42" Zero-Turn Mower, 15hp Electrical Components (Part 2) Parts Diagram

Yard Cruiser 42" Zero-Turn Mower, 15hp

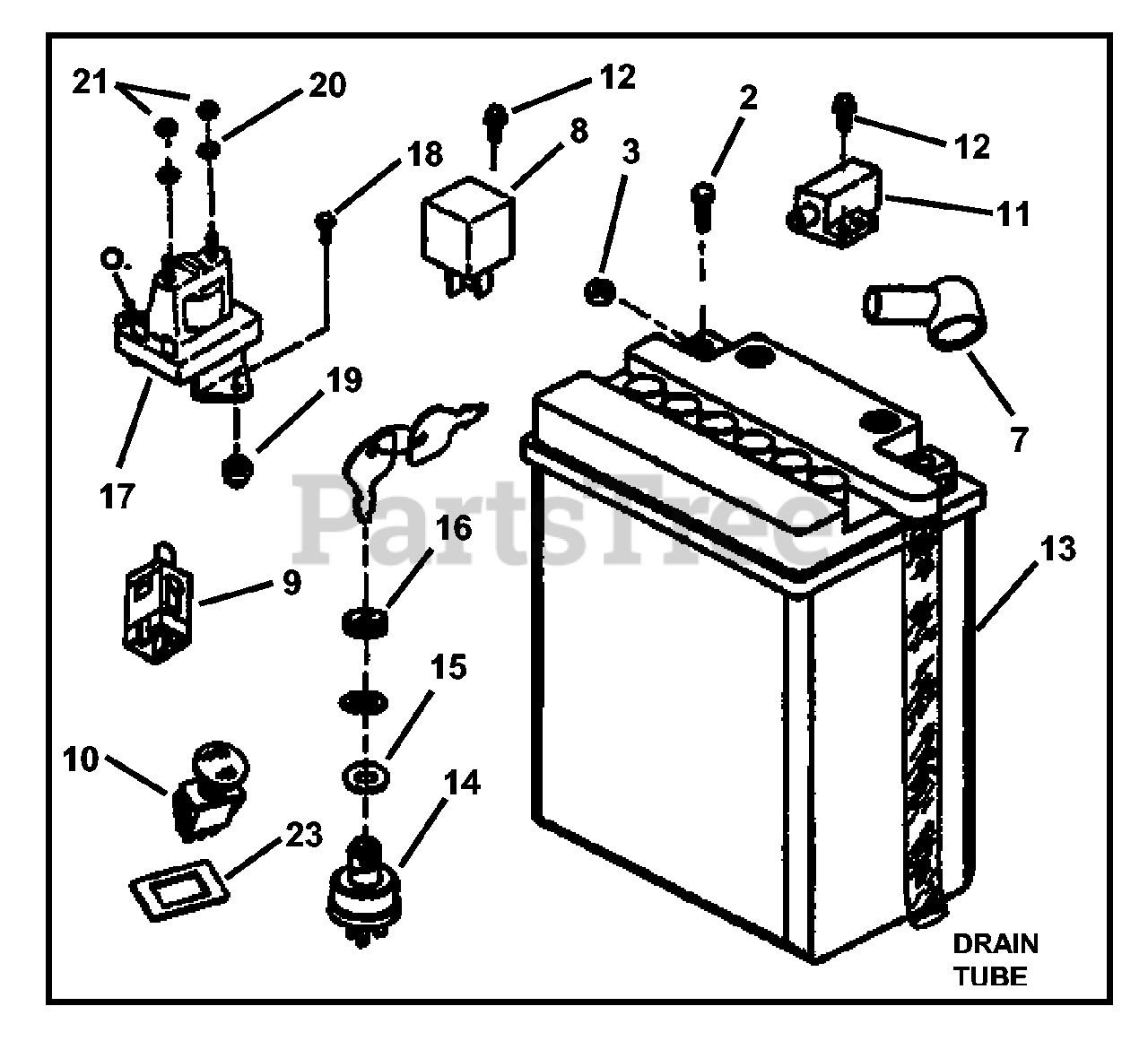

Electrical Components (Part 2) Parts Diagram

  • Title

2

Snapper 7090411

SCREW, #10-24 x 1/2" Hex Head Cap

$

$

Not available

3

Snapper 7012688

NUT, #10-24 Hex Twin "Whiz" Lock
(Superseded to 7012688YP)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7071694

COVER, Battery Cable
(Superseded to 7071694SM)

$3.99

$

In Stock, only 2 left!

0

8

Snapper 7028570

RELAY, Operator Presence Control
(Superseded to 7028570YP)

$29.99

$

In Stock, only 4 left!

0

9

Snapper 7022886

SWITCH, Seat (NC/NO)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

10

Snapper 7028542

SWITCH, PTO Electric Clutch
(Superseded to 7028542YP)

$40.99

$

In Stock, only 3 left!

0

11

Snapper 7023355

SWITCH, Park Break (NC/NO)
(Superseded to 7023355YP)

$17.99

$

In Stock, Qty 11

0

12

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

13

Snapper 7029130

BATTERY, 12 Volt, 14 Amp, 190 Cold Cranking Amp

Note: (Includes Drain Tube)

$

$

Not available

14

Snapper 7026343

SWITCH, Ignition (After-fire Solenoid)
(Superseded to 7026343SM)

$38.99

$

In Stock, Qty 5

0

15

Snapper 7029714

SPACER

$

$

Not available

16

Snapper 7023506

BEZEL
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7075622

SOLENOID, 12 Volt (was 18604)
(Superseded to 1755382YP)

$29.99

$

In Stock, Qty 10

0

18

Snapper 7090071

SCREW, 1/4-20 x 1/2" Hex Head Cap, Grade 5
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

19

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, Grade 5
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

20

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91314

$4.49

$

In Stock, Qty 13

0

21

Snapper 7090977

NUT, 1/4-20 Hex Jam
(Superseded to 7090977YP)

$2.99

$

In Stock, only 2 left!

0

23

Snapper 7035661

SPACER, PTO Switch
(Superseded to 7035661YP)

$4.49

$

Usually ships in 2-12 days

0
