HZS 18482 BVE (84305) - Snapper Yard Cruiser 48" Zero-Turn Mower, 18hp Mower Deck Sub-Assembly (Part 2) Parts Diagram

Yard Cruiser 48" Zero-Turn Mower, 18hp

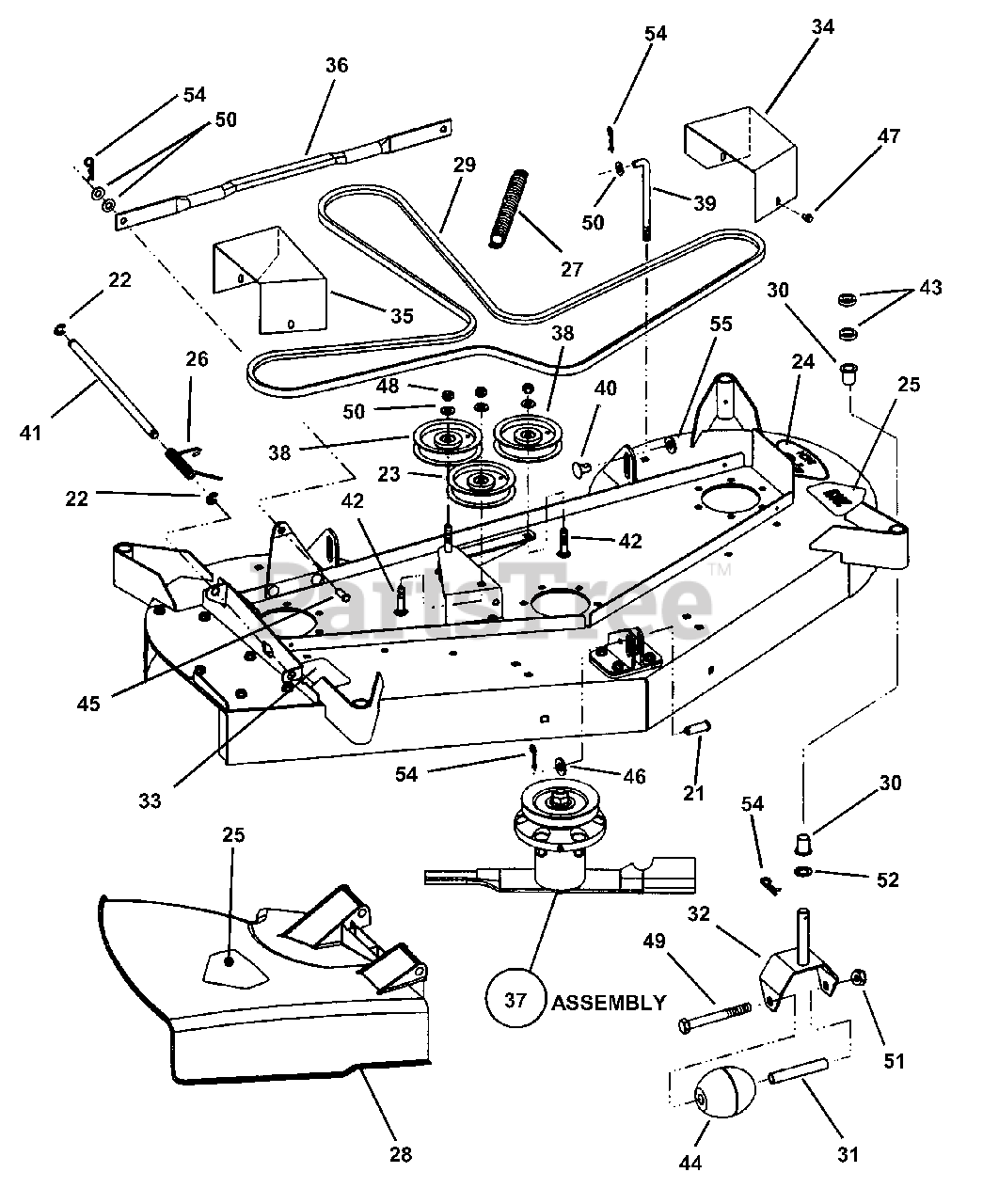

Mower Deck Sub-Assembly (Part 2) Parts Diagram

  • Title

21

Snapper 7012951

PIN, 1/2 x 1-3/8" Clevis

$

$

Not available

22

Snapper 7014341

RING, External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7018574

IDLER, 4.12" Flat
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 7

0

24

Snapper 7024431

DECAL, 48" Deck
(Superseded to 7024431YP)

$11.99

$

Usually ships in 2-12 days

0

25

Snapper 7013010

DECAL, CPSC
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 20+

0

26

Snapper 7035813

SPRING, Chute
(Superseded to 7035813SM)

$24.99

$

In Stock, only 3 left!

0

27

Snapper 7058508

SPRING, Idler Primary
(Superseded to 7058508YP)

$50.99

$

In Stock, only 2 left!

0

28

Snapper 7029425

CHUTE, Side Discharge
(Superseded to 7104733YP)

$87.99

$

Usually ships in 2-12 days

0

29

Snapper 7058509

V-BELT, HA Section, (120.722" Nominal Effective Length)
(Superseded to 7058509YP)

$79.99

$

Usually ships in 2-12 days

0

30

Snapper 7043858

BEARING, 1/2 x 3/4" Plastic
(Superseded to 7043858YP)

Note: Was 46278

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7046301

SLEEVE, Caster Wheel
(Superseded to 7046301YP)

$14.99

$

In Stock, Qty 5

0

32

Snapper 7046302

WELDMENT, Bracket/Shaft Caster
(Superseded to 7046302YP)

$75.99

$

Usually ships in 2-12 days

0

33

Snapper 7046720

DECAL, Chute/Deflector
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

34

Snapper 7047093

COVER, Belt L.H.
(Superseded to 7047093YP)

$19.99

$

Usually ships in 2-12 days

0

35

Snapper 7047094

COVER, Belt R.H.
(Superseded to 7047094YP)

$13.99

$

Usually ships in 2-12 days

0

36

Snapper 7047217

ROD, Timing
(Superseded to 7047217YP)

$128.99

$

Usually ships in 2-12 days

0

37

Snapper 7057674

ASSEMBLY, 48" Spindle

Note: (see "48" Spindle Assembly")

$

$

Currently unavailable

38

Snapper 7072319

IDLER, 3-1/4" Flat
(Superseded to 7072319SM)

$74.99

$

In Stock, only 1 left!

0

39

Snapper 7058086

LINK, Leveling
(Superseded to 7058086YP)

$11.99

$

Usually ships in 2-12 days

0

40

Snapper 7058087

SUPPORT, Swivel

$

$

Not available

41

Snapper 7072044

HINGE PIN, Chute
(Superseded to 7072044YP)

$29.99

$

In Stock, only 1 left!

0

42

Snapper 7091810

BOLT, 3/8-16 x 1-3/4" Short Neck Carriage, Grade 5
(Superseded to 703879)

Note: Was 91158

$3.99

$

In Stock, Qty 13

0

43

Snapper 7076436

SPACER, Blade
(Superseded to 7076436YP)

$7.49

$

In Stock, only 4 left!

0

44

Snapper 7073142

ROLLER, Low Density Polyethylene
(Superseded to 7073142YP)

Note: Was 79226

$16.99

$

In Stock, Qty 11

0

45

Snapper 7046392

PIN, 3/8 x 7/8" Clevis
(Superseded to 7046392YP)

$2.99

$

Usually ships in 2-12 days

0

46

Snapper 7090250

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, Qty 15

0

47

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

Note: Was 90302

$4.99

$

Usually ships in 2-12 days

0

48

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, Grade 5 or B
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, Qty 17

0

49

Snapper 7090993

SCREW, 1/2-20 x 4-1/2" Hex Head Cap, Grade 5
(Superseded to 7090993YP)

$5.49

$

In Stock, only 1 left!

0

50

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

51

Snapper 7090266

NUT, 1/2-20 Hex Center Lock,
(Superseded to 7090266YP)

$4.49

$

Usually ships in 2-12 days

0

52

Snapper 7091628

WASHER, .64 I.D. Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, Qty 5

0

?53

Snapper 7091947

PIN, 1/8" x 1/2" Hair
(Superseded to 7091947YP)

$2.99

$

Usually ships in 2-12 days

0

54

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

55

Snapper 7090667

WASHER, 1/2" Flat
(Superseded to 7090667YP)

$3.49

$

Usually ships in 2-12 days

0

Snapper 7057777

48" Deck Assembly

Note: Includes items 1 thru 55.

$

$

Currently unavailable
