HZS 18483 BVE (84730) - Snapper Yard Cruiser 48" Zero-Turn Mower, 18hp 48" Front Frame & Cover Assembly Parts Diagram

Yard Cruiser 48" Zero-Turn Mower, 18hp

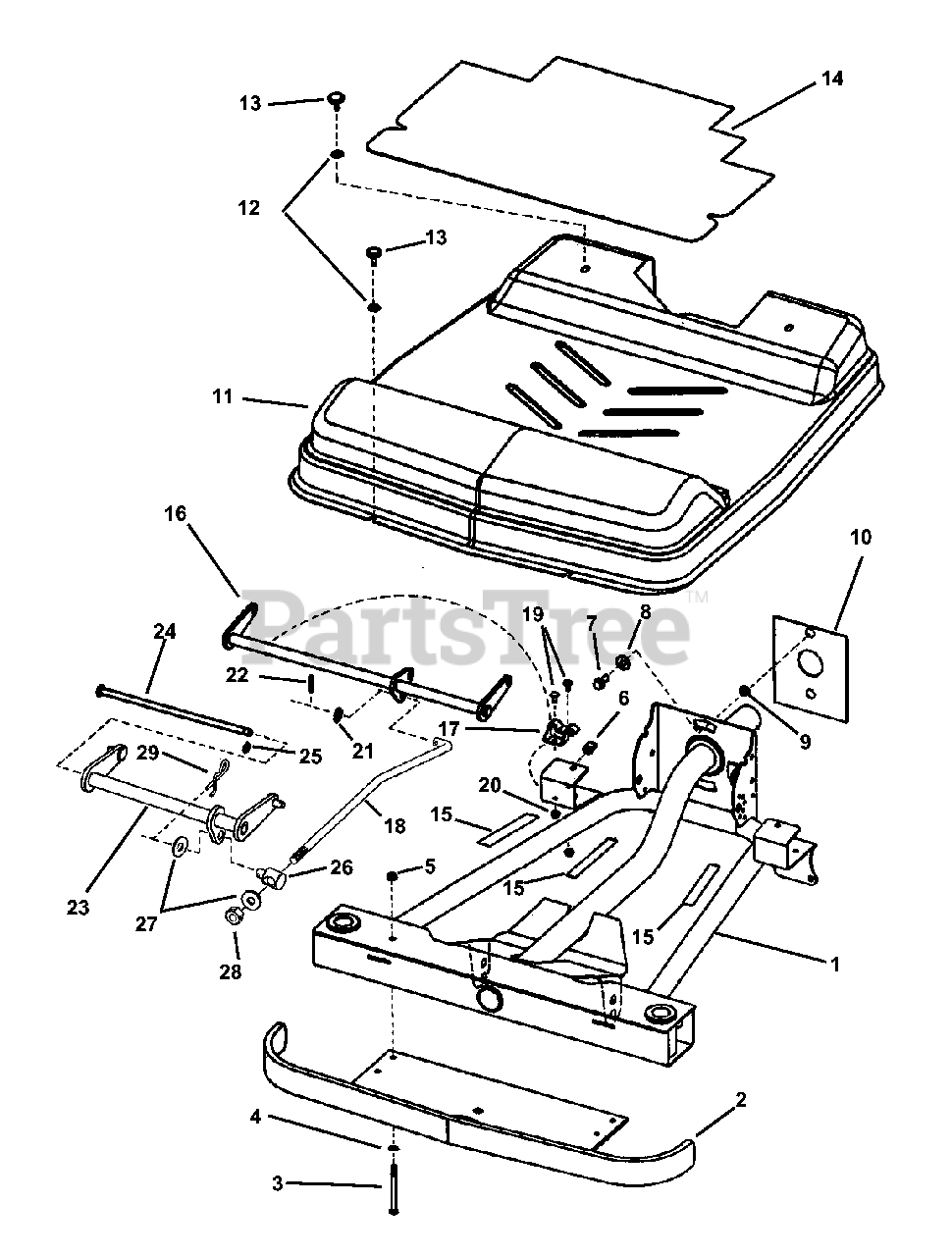

48" Front Frame & Cover Assembly Parts Diagram

  • Title

1

Snapper 7059380

WELDMENT, Front Frame
(Superseded to 7059380YP)

$911.99

$

Usually ships in 2-12 days

0

2

Snapper 7042921

WELDMENT, Front Bumper

$

$

Not available

3

Snapper 7091058

BOLT, 5/16-18 x 3-3/4" Hex Cap
(Superseded to 7091058YP)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7028260

FASTENER, "U" Type 1/4"-20
(Superseded to 7028260YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Face, Self-Tap
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

8

Snapper 7090122

WASHER, 3/8" Flat (was 90517)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7035375

SPACER, Front Frame Pivot

$

$

Not available

10

Snapper 7035374

PLATE, Front Frame Pivot

$7.99

$

Usually ships in 2-12 days

0

11

Snapper 7046895

FLOOR, Front Frame
(Superseded to 7046895YP)

$387.99

$

Usually ships in 2-12 days

0

12

Snapper 7091890

WASHER, 1/4" Internal/External Lock
(Superseded to 7091890SM)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7023341

KNOB

$7.99

$

In Stock, only 4 left!

0

14

Snapper 7072141

FLOOR MAT

$

$

Not available

15

Snapper 7041818

PAD, Floor Pan
(Superseded to 7041818YP)

$10.99

$

In Stock, only 1 left!

0

16

Snapper 7047060

WELDMENT, Rear Lift
(Superseded to 7047060YP)

$106.99

$

Usually ships in 2-12 days

0

17

Snapper 7047099

BRACKET, Saddle

$

$

Not available

18

Snapper 7074256

ROD, Timing
(Superseded to 7074256YP)

$24.99

$

Usually ships in 2-12 days

0

19

Snapper 7091573

BOLT, 1/4-20 x 5/8" Short Square Neck Carriage
(Superseded to 7091573YP)

Note: Was 90551

$4.49

$

In Stock, only 1 left!

0

20

Snapper 7091584

NUT, 1/4-20 Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, only 2 left!

0

21

Snapper 7090667

WASHER, 1/2" Flat
(Superseded to 7090667YP)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7091598

PIN, 1/8 x 1" Cotter
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, Qty 7

0

23

Snapper 7059240

WELDMENT, Front Lift

$

$

Not available

24

Snapper 7022717

ROD, Deck Support
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

25

Snapper 7017847

RING, .438 External Retaining
(Superseded to 7017847YP)

$4.49

$

In Stock, only 1 left!

0

26

Snapper 7046599

SWIVEL
(Superseded to 7046599YP)

$24.99

$

Usually ships in 2-12 days

0

27

Snapper 7090250

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, Qty 17

0

28

Snapper 7091894

NUT, 1/2-13 Hex
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

29

Snapper 7091947

PIN, 1/8 x 1/2" Locking Hair
(Superseded to 7091947YP)

$2.99

$

Usually ships in 2-12 days

0
