I 4550 B (UT-10862) - Homelite Chainsaw Handles Parts Diagram

Chainsaw

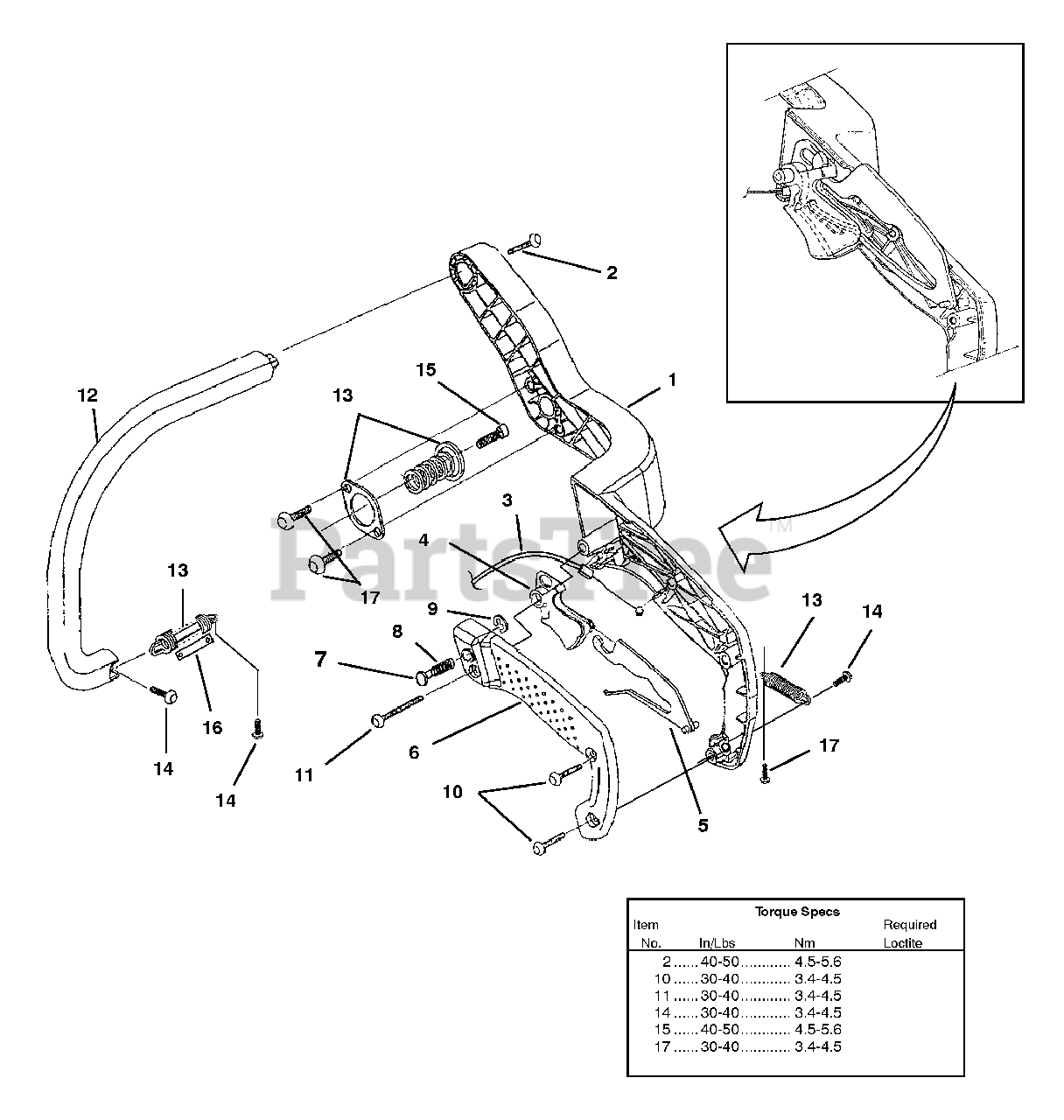

Handles Parts Diagram

  • Title

1

Homelite UP06977A

Rear Handle Kit

Note: Includes items 2-11

$

$

Not available

2

Homelite 82615

Screw-Pan Hd. (12-14 x 1 1/2")

$5.99

$

Usually ships in 3-7 days

0

3

Homelite A07596B

Throttle Cable
(Superseded to 900845001)

$

$

Not available

4

Homelite 984354001

Trigger, Throttle
(Superseded to 984354002)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite PS03966

Throttle Lock Out

$

$

Not available

6

Homelite A08683A

Handle Cover Kit

Note: Includes items 7-10

$

$

Not available

7

Homelite PS03971

Throttle Lock Pin

$6.49

$

Usually ships in 3-7 days

0

8

Homelite 08898

Spring, Compression
(Superseded to 671073001)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 58409

Ring, Retainer

$4.49

$

Usually ships in 3-7 days

0

10

Homelite 82563

Screw, Thread Form (10-14 x 3/4")

$2.49

$

In Stock, Qty 5

0

11

Homelite 82622

Screw, Thread Form (10-14 x 1 3/8")

$2.99

$

Usually ships in 3-7 days

0

12

Homelite UP06973A

Front Handle Kit

$58.99

$

Usually ships in 3-7 days

0

Homelite 82615

Screw-Pan Hd. (12-14 x 1 1/2")

Note: (See No. 2 above)

$5.99

$

Usually ships in 3-7 days

0

13

Homelite UP08007A

Isolator Kit

Note: Includes items 14-16

$

$

Not available

14

Homelite 82621

Screw, Truss Hd. (10-14 x 5/8")

$

$

Not available

15

Homelite 82597

Screw, Truss Hd. (10-24 x 5/8")
(Superseded to 660630001)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 01812A

Limiter, Isolator
(Superseded to 631050001)

$

$

Not available

17

Homelite 82541

Screw, Thread Form (10-14 x 1/2")

$2.49

$

In Stock, only 3 left!

0
