I 7222 (80361) - Snapper 22" Snow Thrower, 7hp Collector Housing (3 Pieces Bolted) I5222 & '92-I7222 Parts Diagram

22" Snow Thrower, 7hp

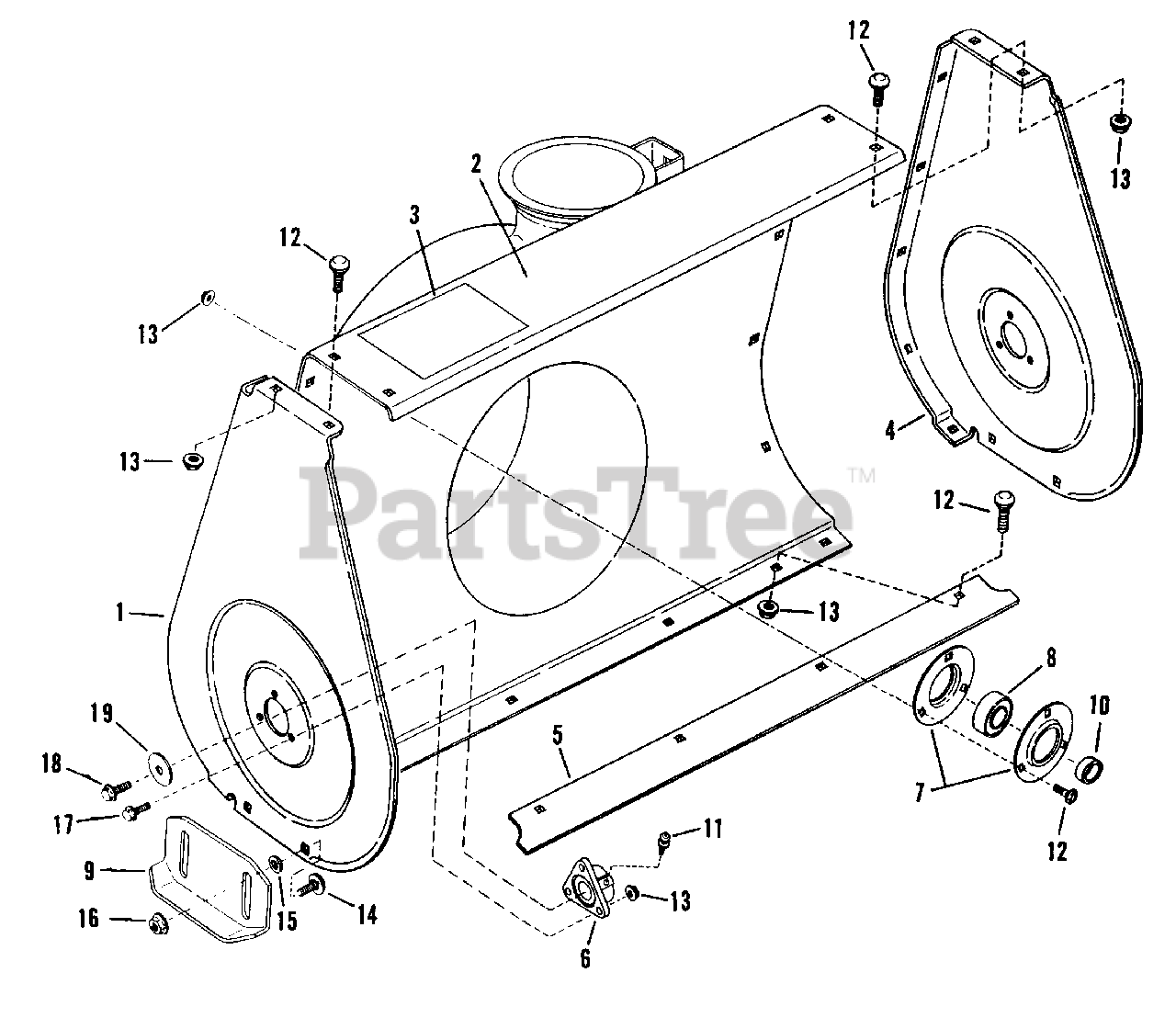

Collector Housing (3 Pieces Bolted) I5222 & '92-I7222 Parts Diagram

  • Title

1

Snapper 7033234

PLATE, Right Hand Side
(Superseded to 7033234YP)

$74.99

$

Usually ships in 2-12 days

0

2

Snapper 7052694

ASSEMBLY, Blower Housing

Note: (Includes Item 3)

$

$

Not available

3

Snapper 7026629

DECAL, Foot Danger

$

$

Not available

4

Snapper 7033235

PLATE, Left Hand Side

$

$

Not available

5

Snapper 7033298

BLADE, Scraper
(Superseded to 7033298BMYP)

$54.99

$

In Stock, only 2 left!

0

6

Snapper 7018736

BEARING, Auger Shaft
(Superseded to 7051563YP)

$31.99

$

Usually ships in 2-12 days

0

7

Snapper 7032455

HOUSING, Bearing

$

$

Not available

8

Snapper 7014608

BEARING, Ball
(Superseded to 7014608SM)

$36.99

$

Usually ships in 2-12 days

0

9

Snapper 7037982

SKID-SHOE
(Superseded to 7037982YP)

$

$

Not available

10

Snapper 7017865

SPACER (.76 x 1.0 x .25)

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 17

0

12

Snapper 7091573

BOLT, 1/4 - 20 x 5/8 S.N. Carriage
(Superseded to 7091573YP)

Note: Was 90666

$4.49

$

In Stock, only 1 left!

0

13

Snapper 7091584

NUT, 1/4 - 20 x H. Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, Qty 10

0

14

Snapper 7091077

BOLT, 5/16 - 18 x 5/8 Carriage
(Superseded to 7091077YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

16

Snapper 7091601

NUT, 5/16 - 18 H. Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.99

$

In Stock, Qty 20+

0

17

Snapper 7090699

BOLT, 1/4 - 20 x 3/4 H. Flange ZLock
(Superseded to 1935450SM)

$4.49

$

In Stock, only 1 left!

0

18

Snapper 7090361

SCREW, 5/16 - 18 x 5/8 Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

19

Snapper 7016314

WASHER, Flat
(Superseded to 7016314YP)

$5.49

$

Usually ships in 2-12 days

0
