I 7524 E (7800085) - Simplicity 24" Snow Thrower, 7.5hp Auger Housing Group (s070ahgr) Parts Diagram

24" Snow Thrower, 7.5hp

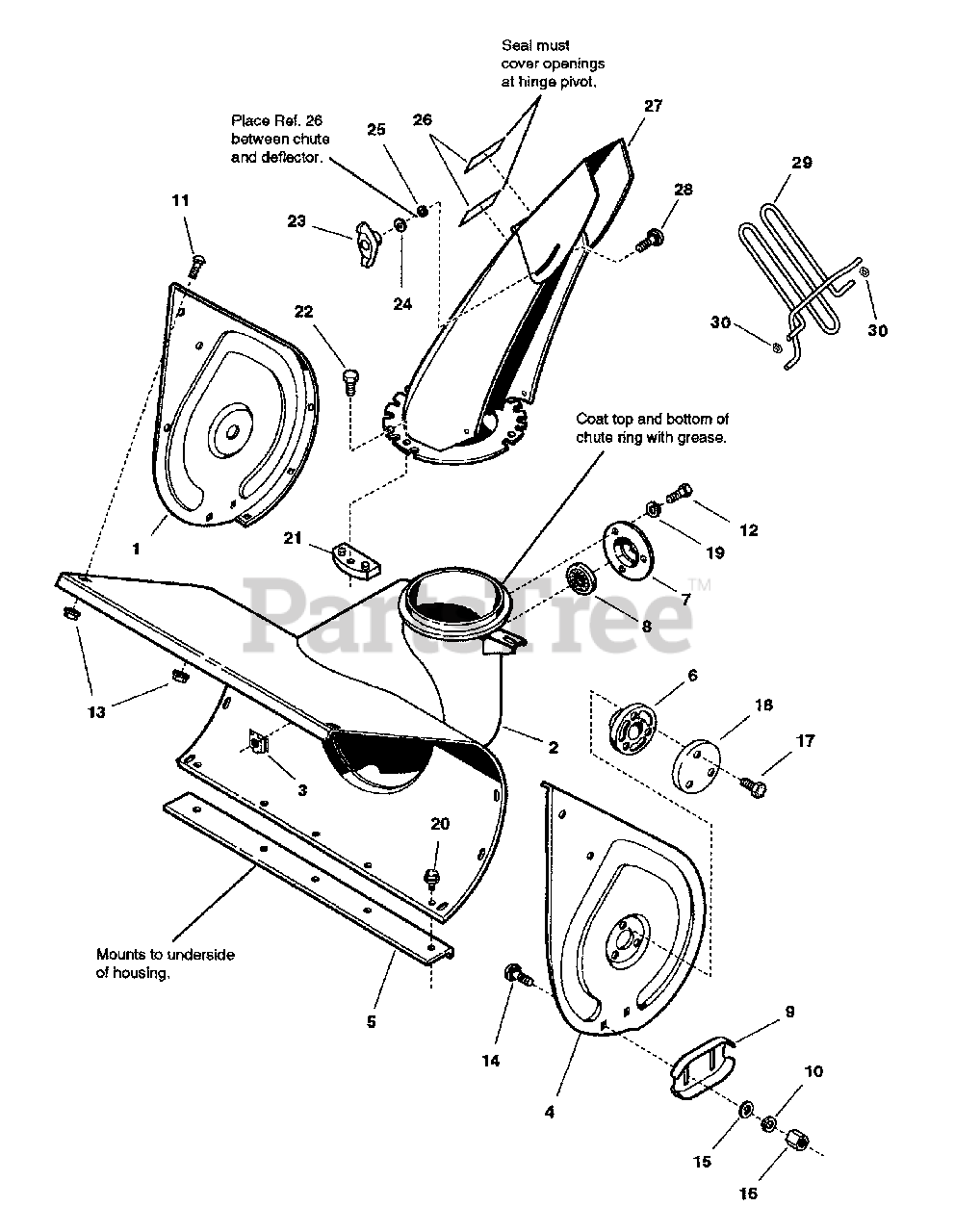

Auger Housing Group (s070ahgr) Parts Diagram

  • Title

1

Simplicity 7072543SM

END PLATE, RH- Auger Housing- Orange

$109.99

$

Usually ships in 2-12 days

0

2

Simplicity 7072548SM

WELDMENT, Auger Housing - 22" - Orange

$555.99

$

Usually ships in 2-12 days

0

2

Simplicity 7072568SM

WELDMENT, Auger Housing - 24" - Orange

$634.99

$

Usually ships in 2-12 days

0

3

Simplicity 1930659SM

RETAINER NUT, 5/16-18

$6.49

$

Usually ships in 2-12 days

0

4

Simplicity 7072546SM

END PLATE, LH- Auger Housing- Orange

$107.99

$

Usually ships in 2-12 days

0

5

Simplicity 7300099

BLADE, Scraper- 22"
(Superseded to 7300099YP)

Note: replaces 1675080

$54.99

$

In Stock, only 1 left!

0

5

Simplicity 7300098

BLADE, Scraper- 24"
(Superseded to 7600018SM)

Note: replaces 1725352

$70.99

$

In Stock, only 2 left!

0

6

Simplicity 1726457SM

BEARING, Auger

$

$

Not available

7

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$7.49

$

In Stock, only 4 left!

0

8

Simplicity 2108202SM

BALL BEARING

$11.99

$

In Stock, Qty 20+

0

9

Simplicity 1727854CSM

SKID SHOE, Reversible- Orange
(Superseded to 1727854BMYP)

Note: or 7072553

$16.99

$

In Stock, Qty 13

0

10

Simplicity 1916965SM

WASHER, 3/8" Split Lock
(Superseded to 703454)

Note: or 7091320

$3.49

$

In Stock, only 4 left!

0

11

Simplicity 1931315SM

BOLT, 1/4-20 x 1/2" Short Square Neck Carriage, GR 5
(Superseded to 703978)

Note: or 7091604

$3.99

$

In Stock, Qty 18

0

12

Simplicity 1925205SM

SCREW, 5/16-18 x 5/8" Hex Head Cap, GR 5
(Superseded to 703822)

Note: or 7090204

$4.49

$

In Stock, only 1 left!

0

13

Simplicity 1930641SM

NUT, 1/4-20 Hex Flange Lock Large
(Superseded to 703161)

$3.49

$

In Stock, Qty 18

0

14

Simplicity 1960711SM

BOLT, 3/8-16 x 3/4" Square Neck Carriage
(Superseded to 703448)

Note: or 7091923

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1924940SM

WASHER, 3/8" Flat
(Superseded to 703878)

Note: or 7090517

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1960687SM

NUT, 3/8-16 Hex Nyloc
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 7091841SM

SCREW, 5/16-18 x 1" Hex Washer Self-Tap

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 7072551SM

CAP, Bearing, Orange

$4.49

$

In Stock, only 2 left!

0

19

Simplicity 1917356SM

WASHER, 5/16" Split Lock
(Superseded to 5025170SM)

Note: or 7090187

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 1929000SM

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 7011938SM

RETAINER, Spout

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 7091075SM

SCREW, #10-24 x 5/8" Hex Washer Self-Tap

$4.49

$

In Stock, Qty 5

0

23

Simplicity 1716632SM

WING KNOB, 5/16-18 (Black)
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

24

Simplicity 7091076SM

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

25

Simplicity 2860210SM

WASHER, .388 I.D. x 1.12 O.D. x .03

Note: matl. Nylon

$4.99

$

In Stock, only 2 left!

0

26

Simplicity 1706085SM

DECAL, Hinge, Orange

$14.99

$

Usually ships in 2-12 days

0

27

Simplicity 7073192SM

CHUTE, Discharge

$233.99

$

Usually ships in 2-12 days

0

28

Simplicity 1931333SM

BOLT, 5/16-18 x 3/4" Short Square Neck Carriage, GR 5
(Superseded to 703185)

Note: or 7091097

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1612455SM

WELDMENT, Chute Guard, Simplicity

$47.99

$

In Stock, only 1 left!

0

30

Simplicity 7091020

PUSHNUT, 1/4"
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 6

0
