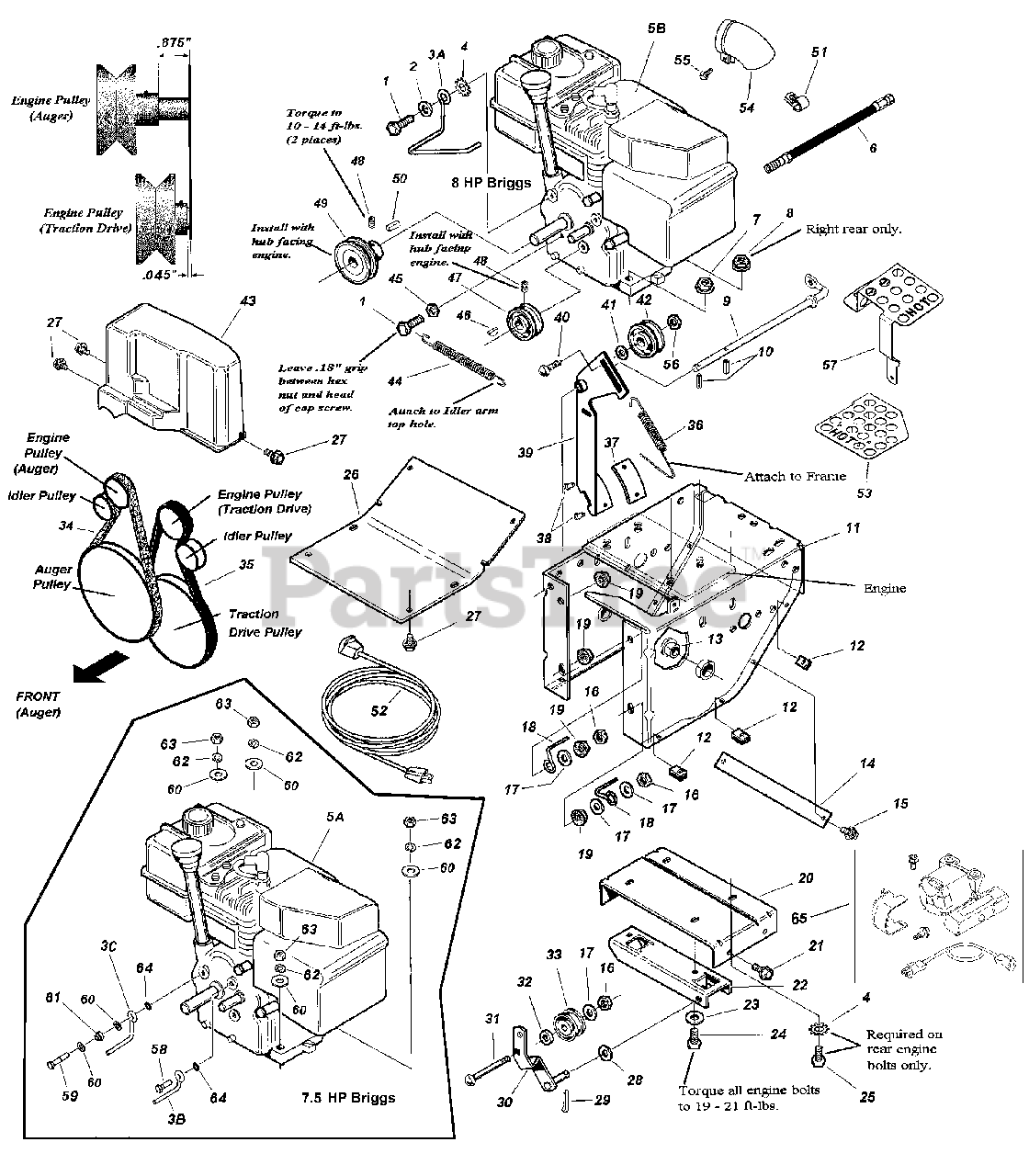

I 7524 E (7800085) - Simplicity 24" Snow Thrower, 7.5hp Engine, Pulleys, & Frame Group - 7-1/2 & 8HP Briggs & Stratton (s070bs8h) Parts Diagram

24" Snow Thrower, 7.5hp

Engine, Pulleys, & Frame Group - 7-1/2 & 8HP Briggs & Stratton (s070bs8h) Parts Diagram

  • Title

1

Simplicity 1921982SM

SCREW, 5/16-24 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 703299)

$5.49

$

Usually ships in 2-12 days

0

2

Simplicity 1924874SM

WASHER, 5/16" Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

3A

Simplicity 1725424SM

BELT STOP, Wire

Note: void; repl. by 7100117 & 7100118

$10.99

$

Usually ships in 2-12 days

0

3B

Simplicity 7100117SM

BELT GUIDE, LH, Traction Drive Belt

$13.99

$

Usually ships in 2-12 days

0

3C

Simplicity 7100118SM

BELT GUIDE, RH, Traction Drive Belt

$14.99

$

Usually ships in 2-12 days

0

4

Simplicity 1920427SM

LOCKWASHER, 5/16" Exterior Tooth

Note: or 7090395

$3.99

$

Usually ships in 2-12 days

0

5A

* ENGINE, 7-1/2HP Briggs Powerbuilt, Mod. 12D1940115E1

$

$

Not available

5A

* ENGINE, 7-1/2HP Briggs Powerbuilt Euro, Mod. 12D1940114E1

$

$

Not available

5B

* ENGINE, 8HP Briggs ES, Mod. 12E3940110E1

$

$

Not available

5B

* ENGINE, 8HP Briggs Intek MS, Mod. 12E3960111E1

$

$

Not available

6

Simplicity 1726942SM

HOSE, Oil Drain

$30.99

$

Usually ships in 2-12 days

0

7

Simplicity 1931277SM

NUT, 5/16-18 Hex Flange Lock- small
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

8

Simplicity 1931277SM

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

9

Simplicity 1715092SM

ROD, Idler

$21.99

$

Usually ships in 2-12 days

0

10

Simplicity 2816169SM

ROLL PIN, 3/16 x 3/4"

Note: or 7090844

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 7072566SM

WELDMENT, Intermediate Frame- Orange

$159.99

$

Usually ships in 2-12 days

0

12

Simplicity 1926018SM

SPEED NUT, 1/4-20 U-Type

Note: or 7028260

$4.49

$

In Stock, Qty 12

0

13

Simplicity 1666001SM

BUSHING, 1.00 long

$6.99

$

In Stock, Qty 16

0

14

Simplicity 1715559A

SUPPORT, Tie Bar
(Superseded to 1715559SM)

$14.99

$

Usually ships in 2-12 days

0

15

Simplicity 1929477SM

SCREW, #10-24 x 1/2" Hex Washer Self-Tap
(Superseded to 704060)

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 1960251SM

JAM NUT, 3/8-16 Hex Center Lock
(Superseded to 703230)

$5.49

$

In Stock, Qty 9

0

17

Simplicity 1924940SM

WASHER, 3/8" SAE Flat
(Superseded to 703878)

Note: or 7090122 or 7090517

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1674315SM

ROD, Belt Guide

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 1922694SM

NUT, 3/8-16 Hex Nyloc Heavy Thin
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Simplicity 1715756A

SUPPORT, Frame
(Superseded to 1715756SM)

$33.99

$

Usually ships in 2-12 days

0

21

Simplicity 1924856SM

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

Note: or 7090858

$4.49

$

In Stock, Qty 17

0

22

Simplicity 1715111SM

SUPPORT, Pivot

$

$

Not available

23

Simplicity 1919381SM

WASHER, 5/16" Flat
(Superseded to 703298)

$4.49

$

In Stock, Qty 14

0

24

Simplicity 1922127SM

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 5025011X14SM)

Note: or 7091908 (HHCS, 5/16-18 x 1-3/4" GR 5)

$3.99

$

In Stock, Qty 17

0

25

Simplicity 1922127SM

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

26

Simplicity 7072555SM

COVER, Bottom- Orange

$78.99

$

Usually ships in 2-12 days

0

27

Simplicity 7091819SM

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, Qty 11

0

28

Simplicity 1925125SM

WASHER, 7/16" Flat

$6.99

$

In Stock, only 1 left!

0

29

Simplicity 1918451SM

COTTER PIN, 1/8 x 3/4"

Note: or 7091598

$3.99

$

Usually ships in 2-12 days

0

30

Simplicity 1725369SM

WELDMENT, Idler Arm

$47.99

$

Usually ships in 2-12 days

0

31

Simplicity 1960268SM

BOLT, 3/8-16 x 1-1/4" Short Square Neck Carriage, GR 5

$4.49

$

In Stock, only 3 left!

0

32

Simplicity 2174870SM

SPACER, .377 ID x .75 OD x .312 Long

$48.99

$

Usually ships in 2-12 days

0

33

Simplicity 2118414SM

PULLEY, Idler

$27.99

$

Usually ships in 2-12 days

0

34

Simplicity 1717393SM

BELT, V Groove, 4L Sect.; 36.00" nom. effective length

Note: Auger Drive

$33.99

$

In Stock, Qty 6

0

35

Simplicity 1725371SM

V-BELT, 3L, 31.64 effective length

Note: Traction Drive

$29.99

$

In Stock, only 2 left!

0

36

Simplicity 1715118SM

SPRING, Extension

$8.99

$

In Stock, only 2 left!

0

37

Simplicity 1669313SM

PAD, Brake

$15.99

$

In Stock, Qty 5

0

38

Simplicity 2825160SM

RIVET, Blind

Note: or 0925160

$4.49

$

In Stock, Qty 8

0

39

Simplicity 7500303

ASSEMBLY, Idler Arm w/Brake Pad
(Superseded to 7500303YP)

Note: replaces 1717320; incl. items 37, 38 & 7400177 (Idler Arm Weldment)

$162.99

$

Usually ships in 2-12 days

0

40

Simplicity 7091810SM

BOLT, 3/8-16 x 1-3/4" Short Square Neck Carriage, GR 5
(Superseded to 703879)

$3.99

$

In Stock, Qty 20+

0

41

Simplicity 1922755SM

WASHER, 3/8" Flat (.41 ID x 1.00 OD x .13 Thick)
(Superseded to 704128)

$5.49

$

In Stock, Qty 20+

0

42

Simplicity 1668477SM

PULLEY, Idler

$25.99

$

In Stock, only 4 left!

0

43

Simplicity 1725379SM

COVER, Belt

$30.99

$

In Stock, only 1 left!

0

44

Simplicity 2159106SM

SPRING, Extension, .562 O.D. x 4.250 Long
(Superseded to 703144)

$6.49

$

In Stock, only 2 left!

0

45

Simplicity 2820438SM

JAM NUT, 5/16-24 Hex

$3.49

$

In Stock, only 1 left!

0

46

Simplicity 0924819

KEY, Hi Pro .125 x .625 HP 504 SAE1035

$

$

Not available

47

Simplicity 1674325SM

PULLEY, V Groove

$31.99

$

Usually ships in 2-12 days

0

48

Simplicity 1960619SM

SET SCREW, 5/16-18 x 5/16" Hex Recess, Cup Point

Note: or 7090201

$3.49

$

In Stock, Qty 7

0

49

Simplicity 1720313SM

PULLEY, 2.75 OD

$36.99

$

Usually ships in 2-12 days

0

50

Simplicity 2805850SM

KEY, 3/16 Square x 1"

Note: or 7010061

$

$

Not available

51

Simplicity 7015861SM

HARNESS CLIP

$3.49

$

Usually ships in 2-12 days

0

52

Simplicity 1724064SM

CORD, Electric Start

$40.99

$

Usually ships in 2-12 days

0

53

Simplicity 1725665A

GUARD, Muffler
(Superseded to 1725665SM)

Note: used on 860E & 860M models

$16.99

$

Usually ships in 2-12 days

0

54

Simplicity 1727032SM

MUFFLER, Deflector- B&S

Note: Briggs p/n 226462

$13.99

$

Usually ships in 2-12 days

0

55

Simplicity 1727033SM

HEX SCREW, Thread Rolling M4 x 0.7

Note: Briggs p/n 810140

$3.49

$

Usually ships in 2-12 days

0

56

Simplicity 1930645SM

NUT, 3/8-16 Hex Flange Lock Two Way
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

57

Simplicity 7300133ASM

HEAT SHIELD, 7.5HP B&S Powerbuilt Muffler

Note: used on I75225 & I7524E models

$46.99

$

Usually ships in 2-12 days

0

58

Simplicity 7090238SM

SCREW, 5/16-24 x 1" Hex Head Cap, GR 5
(Superseded to 703301)

$4.49

$

In Stock, only 4 left!

0

59

Simplicity 7091609SM

SCREW, 5/16-24 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703959)

$4.49

$

Usually ships in 2-12 days

0

60

Simplicity 7090188SM

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

61

Simplicity 7012114SM

BUSHING, Differential Link

$5.49

$

In Stock, Qty 5

0

62

Simplicity 7090187SM

WASHER, 5/16" Split Lock
(Superseded to 5025170SM)

$4.49

$

Usually ships in 2-12 days

0

63

Simplicity 7090196

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

64

Simplicity 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

65

Simplicity 7600016SM

KIT, Electric Start, 320 volt

$289.99

$

Usually ships in 2-12 days

0
