I 7524 E (7800085) - Simplicity 24" Snow Thrower, 7.5hp Wheels & Tires Group (s070whee) Parts Diagram

24" Snow Thrower, 7.5hp

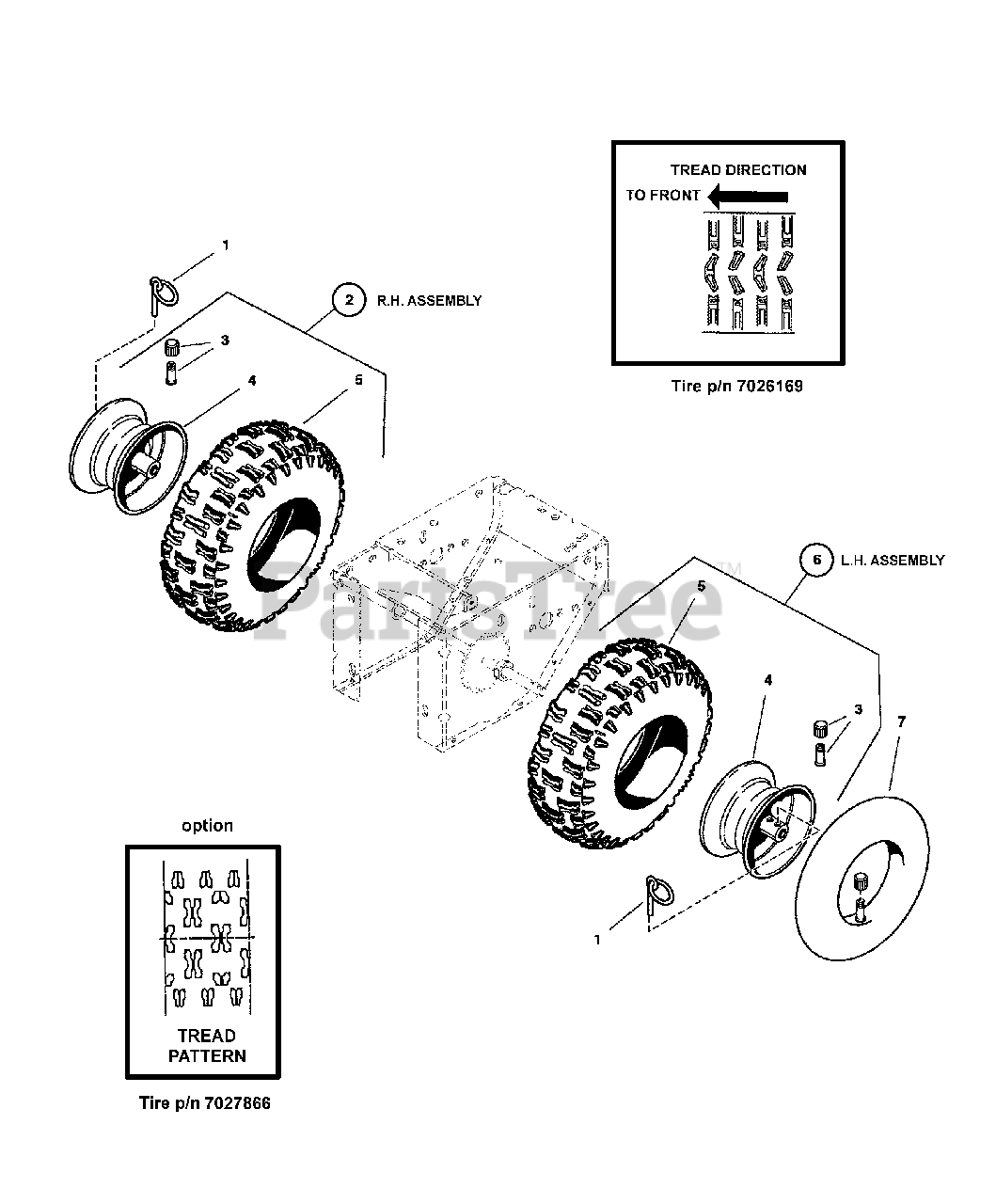

Wheels & Tires Group (s070whee) Parts Diagram

  • Title

1

Simplicity 1666969SM

KLIK- PIN, .310 ID x 1-3/4" Long

$7.49

$

Usually ships in 2-12 days

0

2

Simplicity 1726747SM

* ASSY, RH Tire and Wheel, 15 x 5.00-6 Carlisle X-Trac

Note: includes items 3, 4 5

$136.99

$

Usually ships in 2-12 days

0

3

Simplicity 0172353

VALVE STEM AND CAP

Note: per tire assembly

$

$

Not available

4

Simplicity 1723286SM

RIM, 6 x 3.25 (Weldment)

Note: per tire assembly

$66.99

$

Usually ships in 2-12 days

0

5

Simplicity 7026169SM

TIRE, 15 x 5.00-6, 2 Ply, Carlisle X-Trac

Note: per tire assembly

$66.99

$

Usually ships in 2-12 days

0

6

Simplicity 1726746SM

ASSY, LH Tire and Wheel, 15 x 5.00-6 Carlisle X-Trac

Note: includes items 3, 4 5

$136.99

$

Usually ships in 2-12 days

0

7

Simplicity 1664090SM

TUBE, Tire

Note: per tire assembly (optional)

$26.99

$

In Stock, only 1 left!

0
