i1042 (17WE9BKR010) - Cub Cadet 42" Zero-Turn Mower (2011) Kohler SV540-3219 Crankcase Parts Diagram

42" Zero-Turn Mower

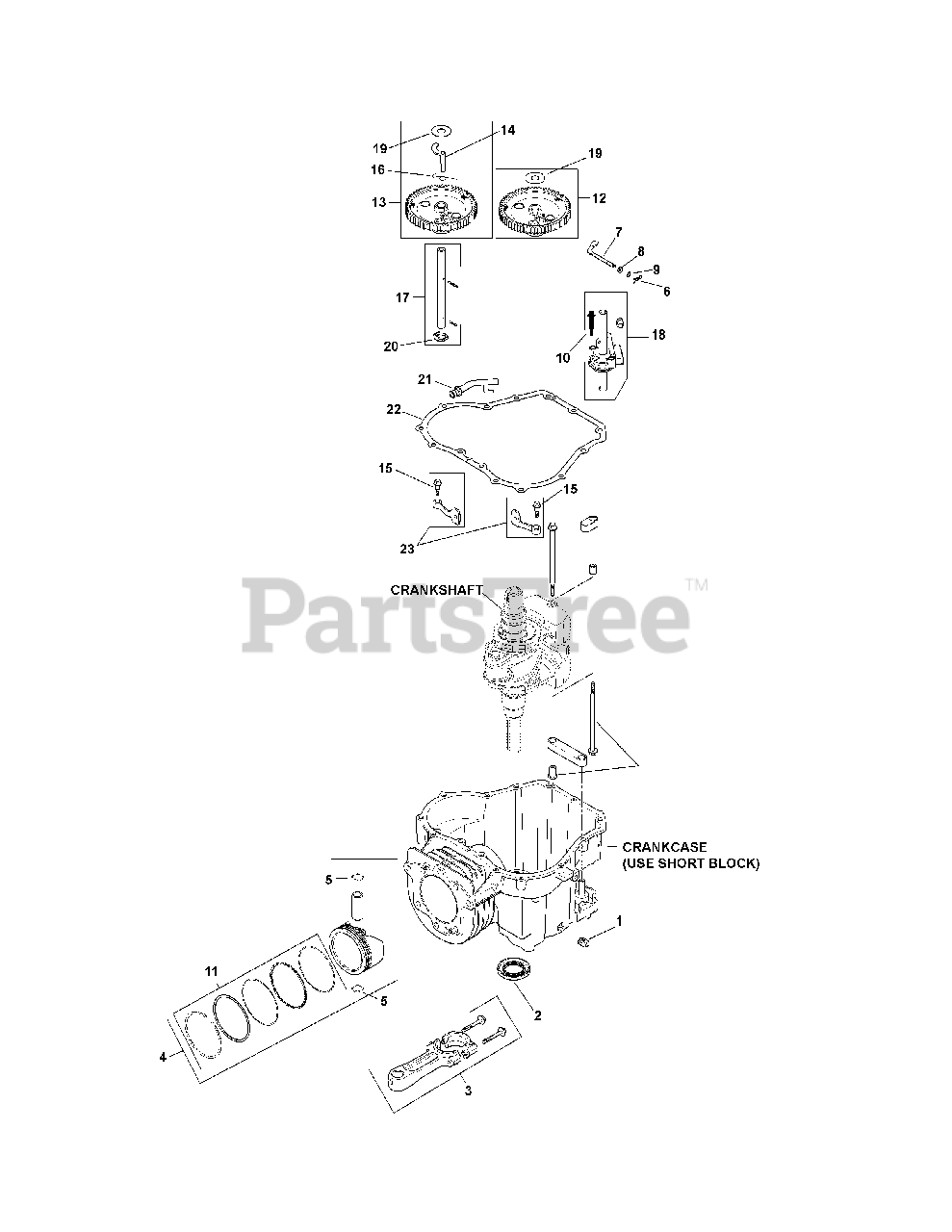

Kohler SV540-3219 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-25-139-57-S

Sq. Hd. Pipe Plug, 3/8

$2.49

$

In Stock, Qty 9

0

2

Cub Cadet KH-20-032-08-S

Oil Seal

$11.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-20-067-05-S

Connecting Assembly Rod

$102.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-20-874-16-S

Piston w/ Ring Set Kit, 94mm

$114.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-62-018-04-S

Piston Pin Retainer

$2.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-12-154-05

Hitch Pin Clip
(Superseded to KH-12-154-05-S)

$2.99

$

Usually ships in 3-6 days

0

7

Cub Cadet KH-20-144-02-S

Governor Cross Shaft

$14.99

$

In Stock, only 3 left!

0

8

Cub Cadet KH-M-631015

Flat Washer, 6 mm
(Superseded to KH-M-631015-S)

$2.49

$

In Stock, Qty 5

0

9

Cub Cadet KH-X-25-102-S

Flat Washer, 1/4

$2.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-20-086-12-S

Shd. Thd. Frm. Screw

$2.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-20-108-04-S

Ring Set, 94MM

$81.99

$

In Stock, only 3 left!

0

12

Cub Cadet KH-20-010-07-S

Cam Lobe Assembly

$

$

Not available

13

Cub Cadet KH-20-010-08-S

Cam Gear Assembly
(Superseded to KH-20-010-23-S)

$36.99

$

In Stock, only 3 left!

0

14

Cub Cadet KH-20-044-32-S

ACR Weight

$13.99

$

In Stock, only 3 left!

0

15

Cub Cadet KH-20-086-06-S

Shd. Thd. Frm. Screw, M6 X 1 X 26

$4.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-20-089-06-S

ACR Spring

$2.99

$

In Stock, Qty 9

0

17

Cub Cadet KH-20-144-11-S

Cam Center Shaft Kit

$20.99

$

In Stock, only 2 left!

0

18

Cub Cadet KH-20-393-01-S

Oil Pump Kit

$

$

Not available

19

Cub Cadet KH-20-468-03-S

Thrust-ACR Washer

$2.49

$

In Stock, only 2 left!

0

20

Cub Cadet KH-20-468-08-S

Thrust Washer

$2.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-20-123-02-S

Drainback Tube

$6.49

$

In Stock, Qty 5

0

22

Cub Cadet KH-20-041-01-S

Closure Plate Gasket
(Superseded to KH-20-041-21-S)

$

$

Not available

23

Cub Cadet KH-20-090-01-S

Cam Lever Assembly Kit
(Superseded to KH-20-090-12-S)

$5.49

$

In Stock, only 4 left!

0

Crankcase

Note: (Use Short Block)

$

$

Not available

Cub Cadet KH-20-522-17

Short Block Pressure Fed

Note: Not shown

$1217.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-20-522-18

Short Block Gravity Fed

Note: Not shown

$1221.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-SV540-3219

Complete Engine

Note: Not shown

$

$

Not available
