i1042 (17WE9BKR010) - Cub Cadet 42" Zero-Turn Mower (2011) Kohler SV540-3219 Cylinder Head, Valves & Breather Parts Diagram

42" Zero-Turn Mower

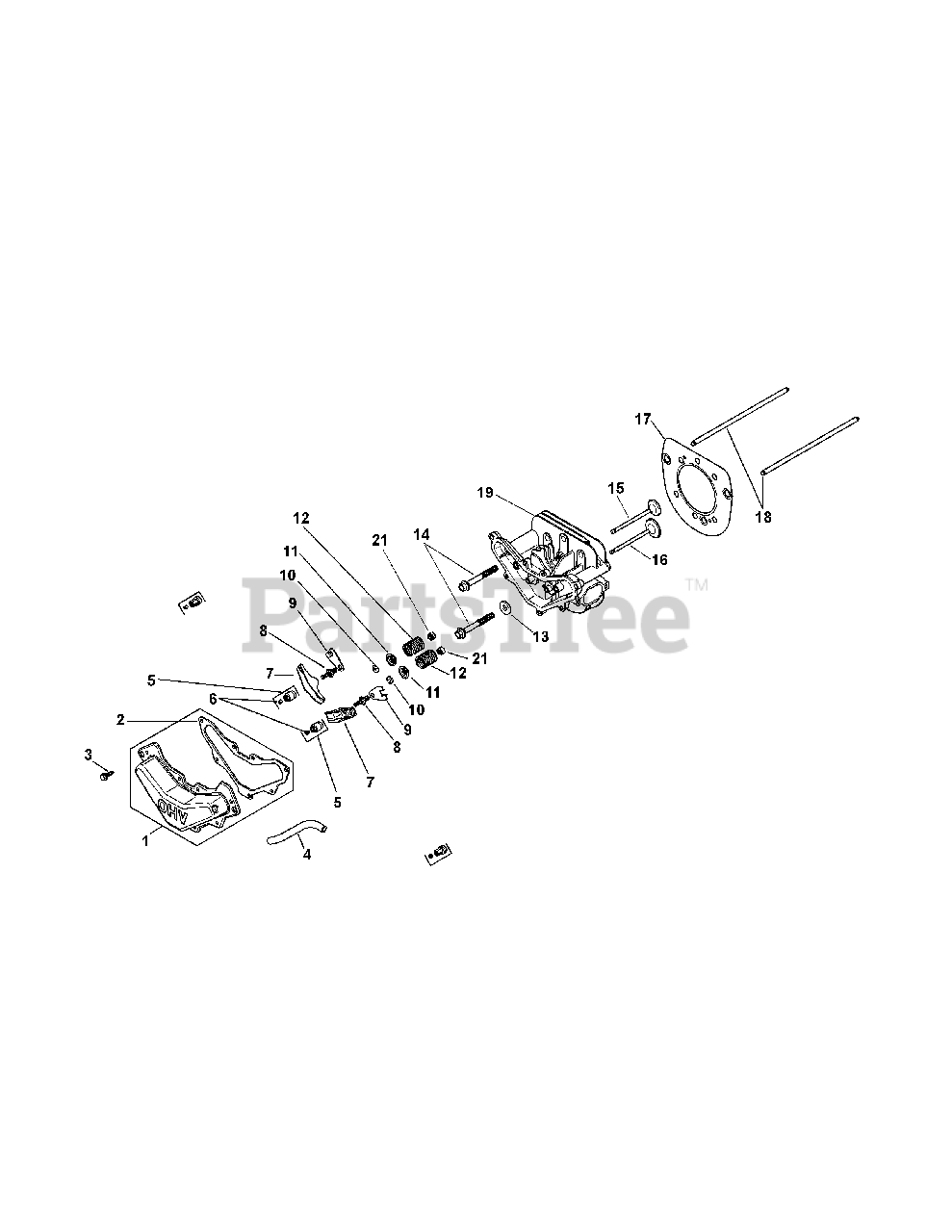

Kohler SV540-3219 Cylinder Head, Valves & Breather Parts Diagram

  • Title

1

Cub Cadet KH-20-096-14-S

Valve Cover Kit (Inc. 2)

$45.99

$

In Stock, Qty 15

0

2

Cub Cadet KH-20-041-13-S

Valve Cover Gasket

$13.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-M-645020-S

Flg. Thd. Frm. Screw, M6 x 1.0 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, Qty 20+

0

4

Cub Cadet KH-20-326-20-S

Breather Hose

$14.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-20-599-04-S

Rocker Pivot Assembly (Inc. 6)

$6.49

$

In Stock, Qty 20+

0

6

Cub Cadet KH-20-086-04-S

Set Screw

$2.49

$

In Stock, Qty 14

0

7

Cub Cadet KH-20-186-01-S

Rocker Arm

$8.99

$

In Stock, Qty 20+

0

8

Cub Cadet KH-20-072-08-S

Rocker Stud

$2.49

$

In Stock, Qty 16

0

9

Cub Cadet KH-20-146-03-S

Push Rod Guide Plate

$2.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-20-062-01-S

Retainer Lock

$2.49

$

In Stock, Qty 9

0

11

Cub Cadet KH-20-173-01-S

Valve Spring Cap

$2.49

$

In Stock, Qty 7

0

12

Cub Cadet KH-20-089-03-S

Valve Spring

$5.49

$

In Stock, only 2 left!

0

13

Cub Cadet KH-12-468-05

Flat Washer, 13/32

$

$

Not available

14

Cub Cadet KH-20-086-02-S

Flange Screw, M10 x 1.5 x 80

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet KH-20-016-01-S

Exhaust Valve

$34.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-20-017-01-S

Valve, Exhaust Valve

$28.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-20-841-01-S

Cylinder Head Gasket Kit

$37.99

$

In Stock, Qty 8

0

17

Cub Cadet KH-12-041-01

Carburetor Gasket

$2.49

$

In Stock, Qty 13

0

17

Cub Cadet KH-12-041-02

Air Cleaner Base Gasket

$2.49

$

In Stock, Qty 19

0

17

Cub Cadet KH-20-041-12-S

Exhaust Gasket

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet KH-20-041-18-S

Heat Deflector Gasket

$6.99

$

In Stock, Qty 8

0

17

Cub Cadet KH-20-041-17-S

Heat Deflector Gasket

$7.49

$

In Stock, Qty 8

0

17

Cub Cadet KH-25-086-87-S

Hex Socket Head Cap Screw

$3.49

$

In Stock, only 3 left!

0

17

Cub Cadet KH-X-21-1

Spring Lock Washer, 5/16

$

$

Not available

18

Cub Cadet KH-20-411-05-S

Push Rod

$8.49

$

In Stock, Qty 13

0

19

Cub Cadet KH-20-318-14-S

Kit, Cylinder Head

$263.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-20-032-10-S

Valve Stem Seal

$5.49

$

In Stock, Qty 8

0
