i1042 (17WE9BKR010) - Cub Cadet 42" Zero-Turn Mower (2011) Kohler SV540-3219 Ignition & Electrical Parts Diagram

42" Zero-Turn Mower

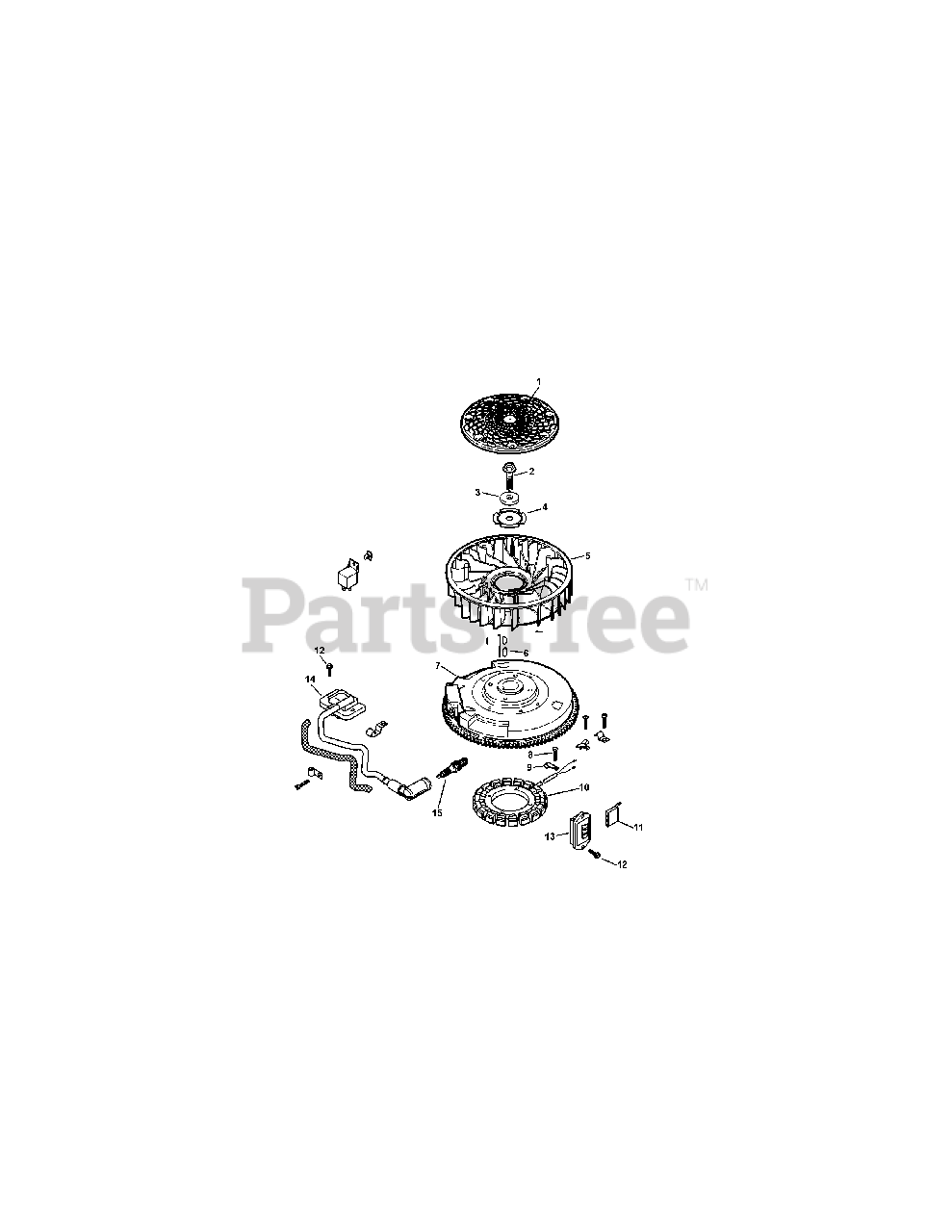

Kohler SV540-3219 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-20-162-02-S

Grass Screen

$7.99

$

In Stock, Qty 5

0

2

Cub Cadet KH-25-086-362-S

Hex Flange Screw

$3.49

$

In Stock, Qty 10

0

3

Cub Cadet KH-25-468-09-S

Flat Washer

$6.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-20-146-05-S

Fan Mounting Plate

$2.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-20-157-01-S

Fan

$24.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-340-04-S

Straight Flywheel Key

$3.99

$

In Stock, Qty 5

0

7

Cub Cadet KH-20-025-40-S

Flywheel
(Superseded to KH-20-025-44-S)

$251.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-M-548025-S

Thd. Frm. Screw, M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-20-154-04-S

Wire Clip

$2.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-237878

15 Amp Stator Kit

$149.99

$

In Stock, Qty 12

0

11

Cub Cadet KH-25-155-41-S

Connector

$7.99

$

In Stock, Qty 11

0

12

Cub Cadet KH-M-545020-S

Flg. Thd. Frm. Screw, M5 x .8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

13

Cub Cadet KH-41-403-10-S

Regulator/Rectifier
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, Qty 6

0

14

Cub Cadet KH-20-584-04-S

Ignition Module (CDI Fixed)
(Superseded to KH-20-584-03-S)

$32.99

$

In Stock, Qty 15

0

15

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet KH-20-176-16-S

Wiring Harness
(Superseded to KH-20-176-22-S)

Note: Not shown

$26.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-454-05-S

Tie

Note: Not shown

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-20-237-01-S

Cable Clamp

Note: Not shown

$2.99

$

Usually ships in 2-5 days

0
